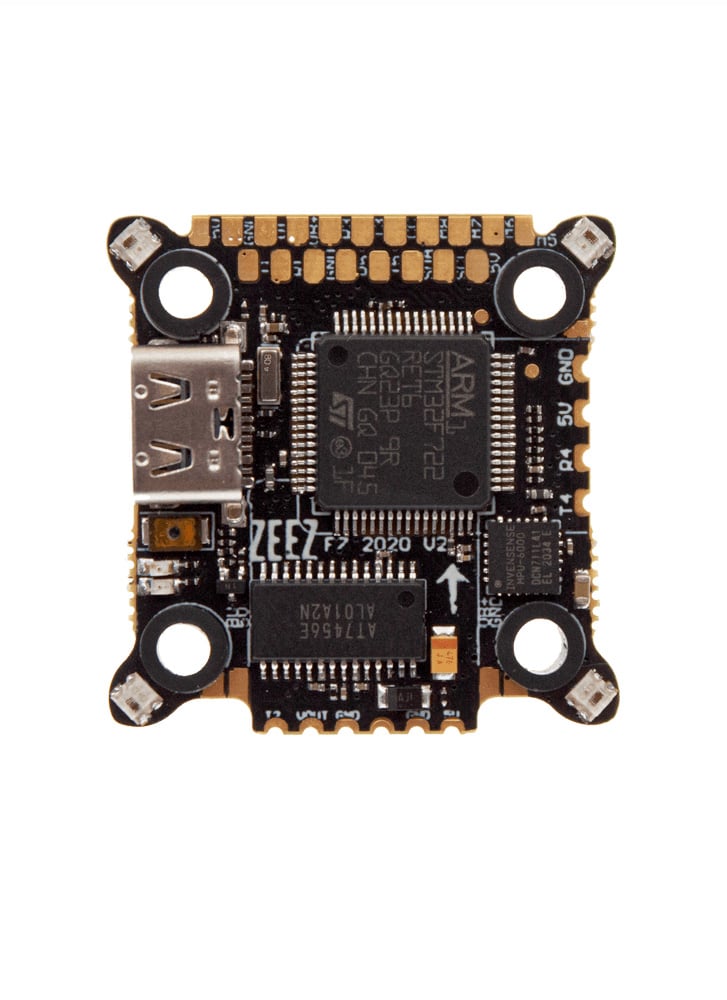

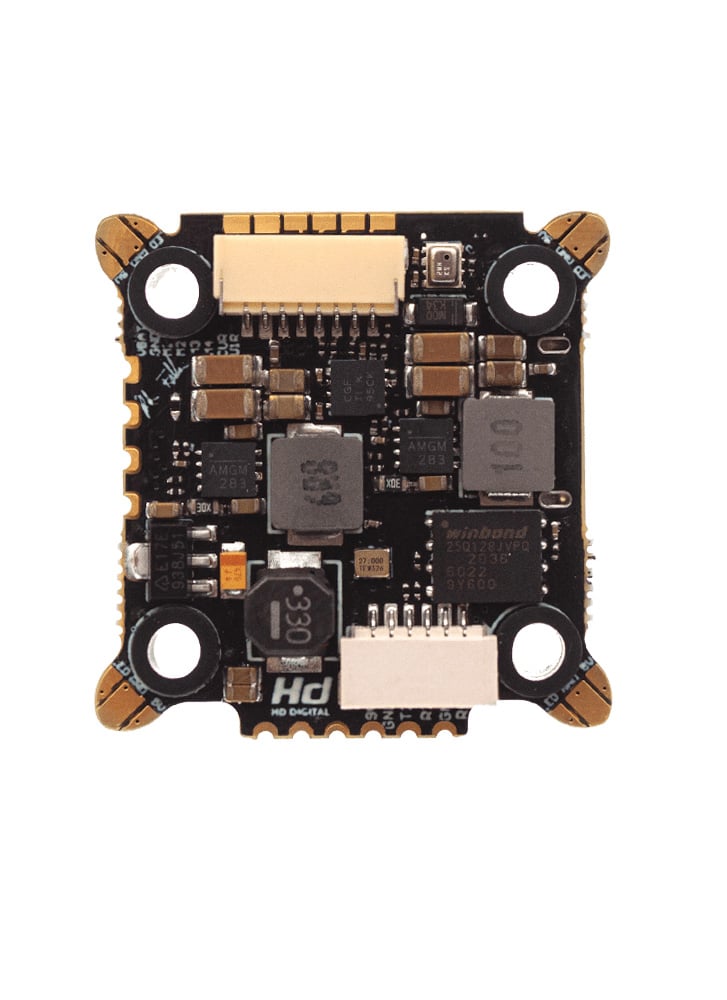

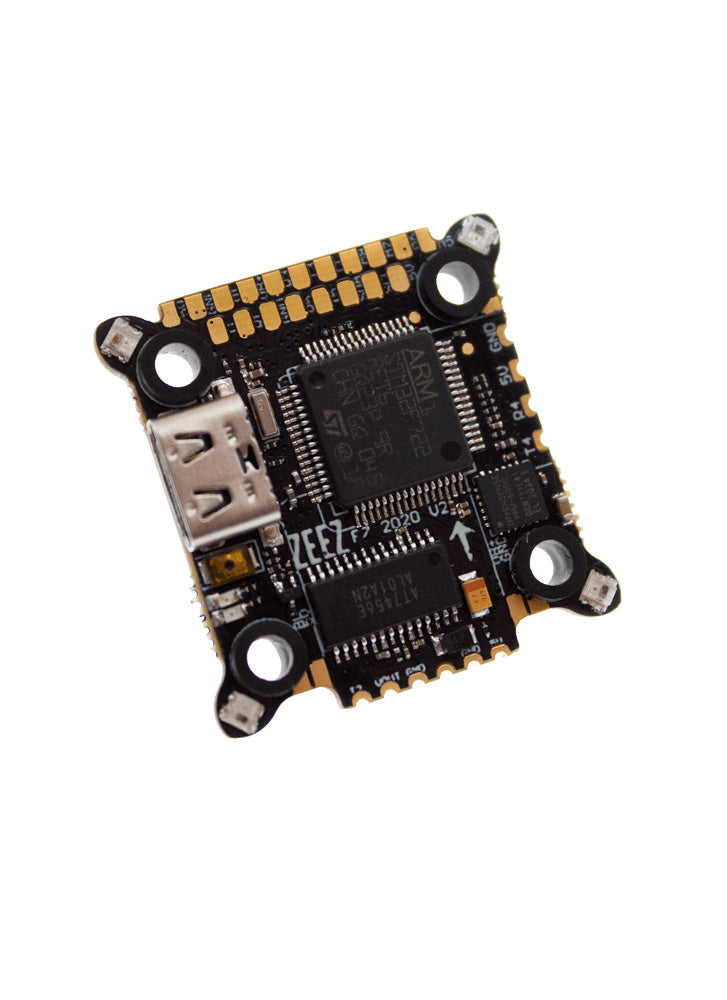

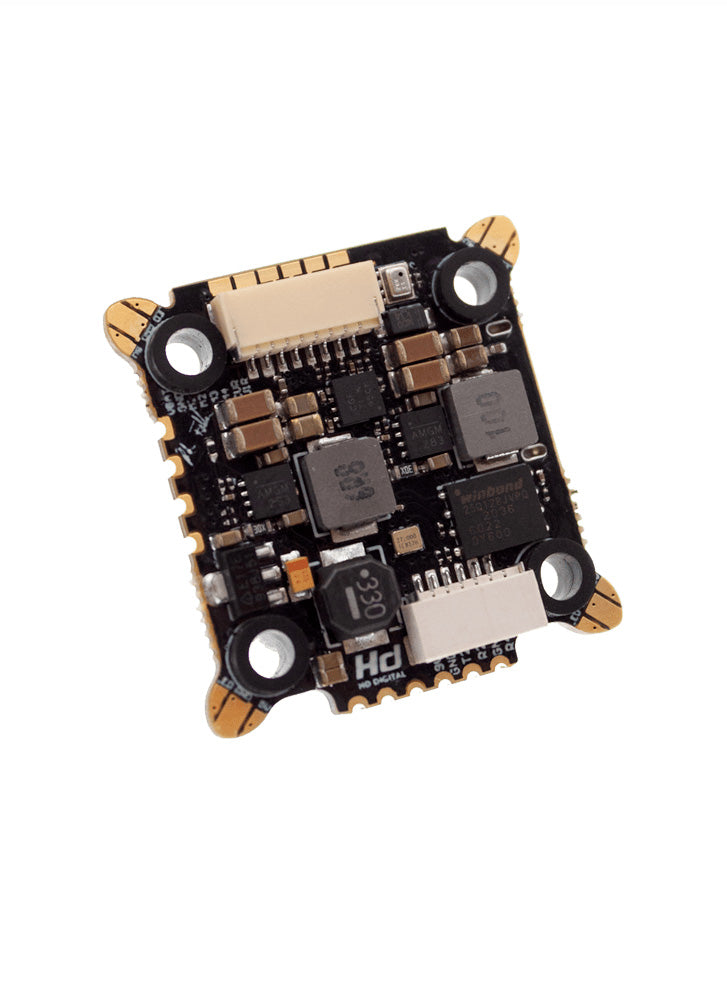

Zeez F7 2020 Controller V2 Lite Compatible with DJI HD FPV
Zeez F7 2020 Controller V2 Lite Compatible with DJI HD FPV
Zeez F7 2020 Controller V2 Lite Compatible with DJI HD FPV
Zeez F7 2020 Controller V2 Lite Compatible with DJI HD FPV
Zeez F7 2020 Controller V2 Lite Compatible with DJI HD FPV

Zeez F7 2020 Controller V2 Lite Compatible with DJI HD FPV

£53.50

The ZEEZ F7 V2 2020 is an 8 Motor Output, DJI HD System Ready Flight Controller with an on-board 9V@3A regulator to power the DJI Air Unit and a 5V@3A regulator to power all the peripheral. It has almost the specs and features of its big brother, the 3030 version, but without a barometer and in a more compact format.

It uses a powerful F7 processor along with top-of-the-line hardware with a MPU6000 Gyro . ZEEZ F7 V2-Lite 2020 comes in a standard 20×20 form factor . It comes with spaces and pads for TBS Crossfire and TBS Unify Nano32 for a very clean and low-profile assembly. It has 4 onboard RGB LED’s and easy to solder LED pads on each corner. There are 5 UARTS available as well as, I2C port, 16MB Flash memory for Blackbox data record, an OSD chip for analog video and LC Filter to power the Analog camera and VTX

We took all the feedback given to us from the previous version and have i mproved the overall stability and power supply cleaning . We were able to reduce the size of the FC, thanks to its 6 layer design . Along with easier to solder pads and improved the strength of all the solder pads , adding additional copper around the pads.

20 X 20

MOUNTING HOLES

3S-6S

BATTERY INPUT

5V-9V

BEC 3A CONTINUOUS

STM32F722

MICRO CONTROLLER

MPU6000

GYRO/ACC

NO

BAROMETER

HD PLUG

DJI AND CADDX VISTA COMPATIBLE

X8

8 MOTOR COMPATIBLE

USB-C

WHO STILL USES MICRO-USB?

5 UARTS

AVAILABLE

16MB

ONBOARD FLASH

TBS

PAD’S FOR NANO RX & UNIFY PRO 32

Specifications

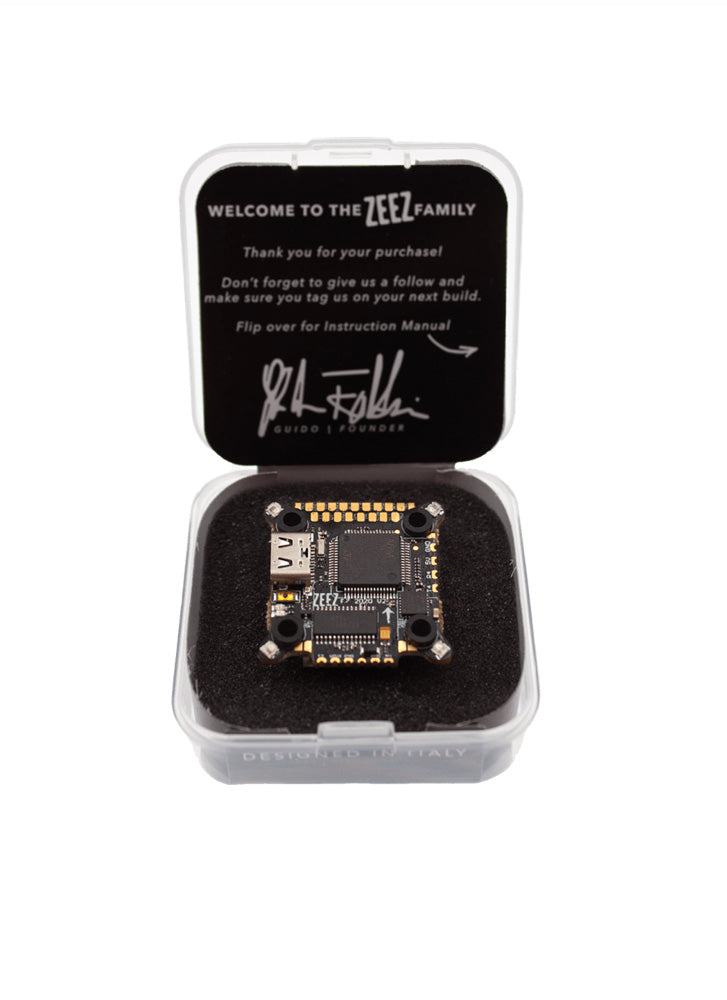

In the box
