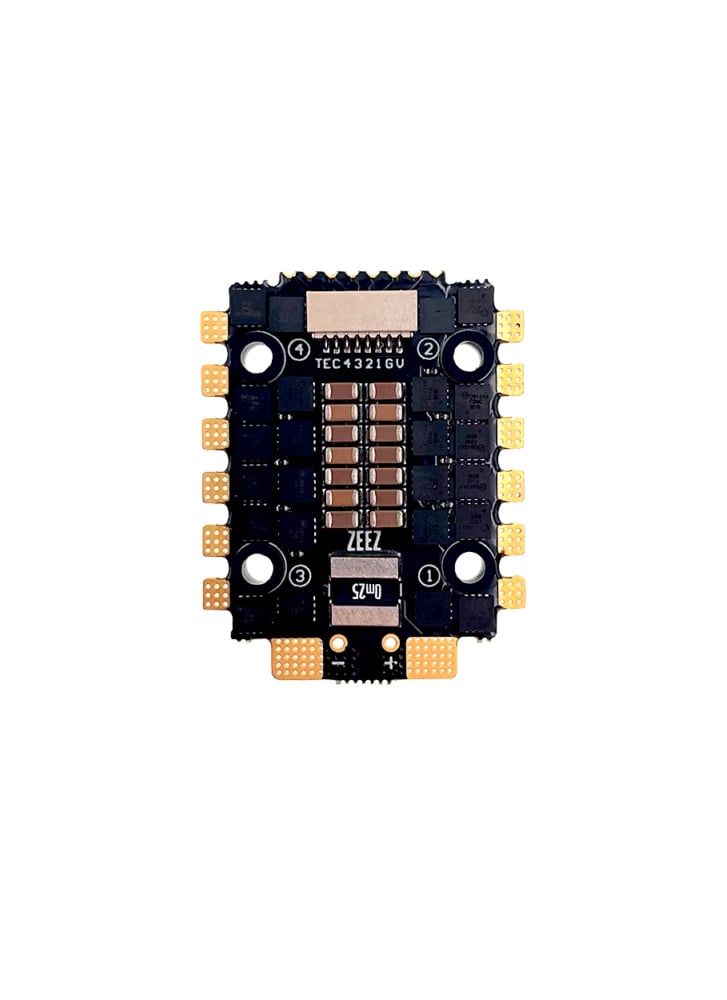

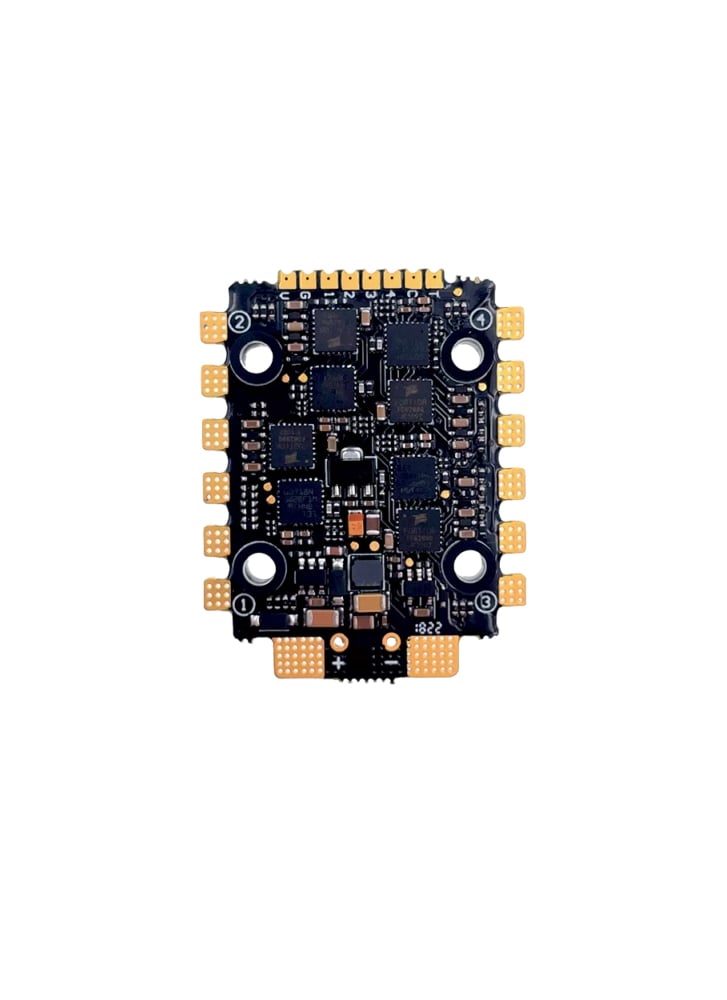

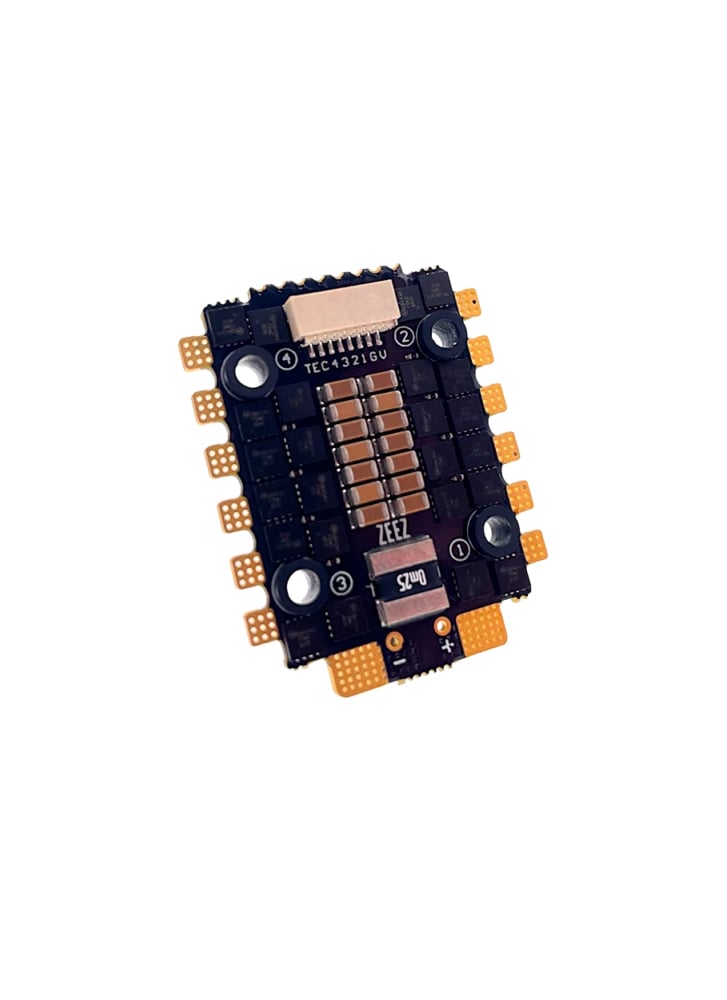

Zeez 45A 4-in-1 BLHeli32 2020 ESC V3
£59.99
The ZEEZ 45A 4-in-1 ESC is an improved version of last year’s 2020 ESC. We took all the positive feedback from our users around the world along with the new advancements in technology and we truly raised the bar with this one.
The ZEEZ 45A 4-in-1 ESC comes with the fastest MCU available which is fully supported by BLHELI32 , the STM32GO . It supports Bi-directional DSHOT and all digital protocols (DSHOT150, DSHOT300, DSHOT600) out of the box. It supports 96KHz PWM drive frequency to the MOSFET whilst still supporting all analog protocols (PWM, OneShot125, OneShot42, Multishot).
We took advice from some of our newer pilots and have improved the solder pads by giving them more clearance.
20 X 20
MOUNTING HOLES
3S-6S
BATTERY INPUT
45A-55A
CONTINOUS & PEAK DRAW
STM32GO
60 MHZ FREQUENCY
BLHELI32
O.G FIRMWARE
96KHZ
MAX PWM FREQUENCY
MOSFET
HIGH QUALITY R DS(ON) 1.3 MΩ 30V RATED
HIGH CAPACITANCE
ONBOARD & EXTERNAL CAPACITOR HOLES
CURRENT
SENSOR SCALE: 250
Specifications
- LiPo Power input : 3S-6S
- Cont.Current : 45Ax4
- Burst Current : 55Ax4
- Input wires : 14AWG-130mm* (Red/Black)
- Output Wire : solder pads and 8P connector
- High Quality MOSFET 30V rated with RDS(on) 1.3 mΩ
- Mounting holes : 20x20mm
- ESC Firmware : BLHeliSuite32

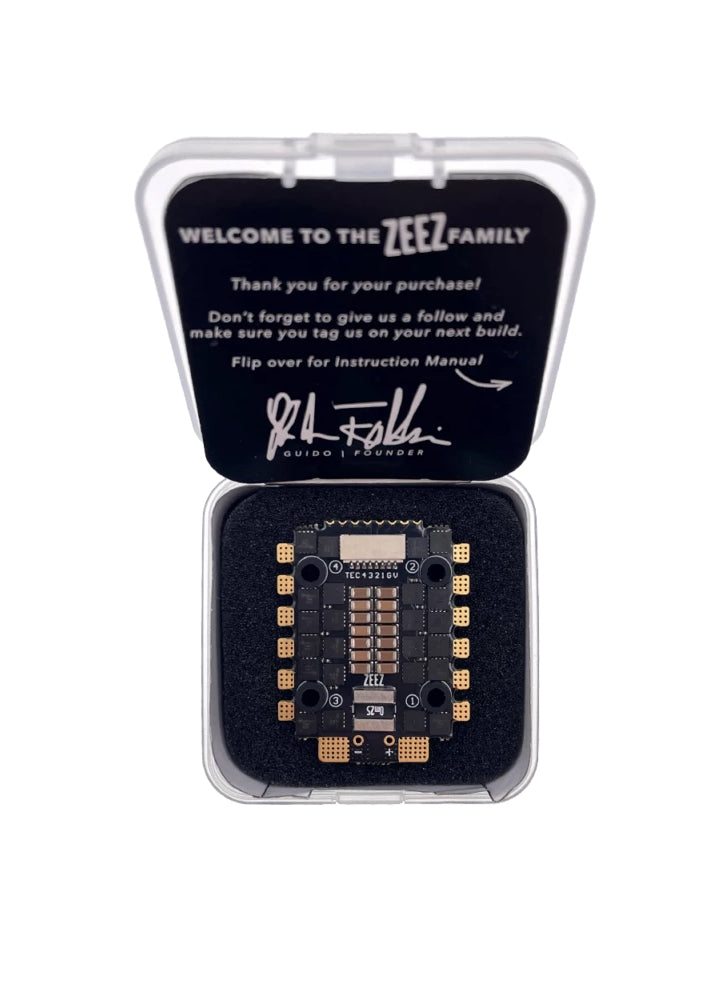

- (1X) ZEEZ 45A 4-in-1 ESC V3
- (4X) Aluminum Standoff
- (1X) ESC to Flight Controller 8 Pin to Servo Connector JST SH
- 1.00mm connector
- (2X) 470uF 35V Low ESR Capacitor
- (1X) XT60 with 12AWG Silicon Cable for battery connection
