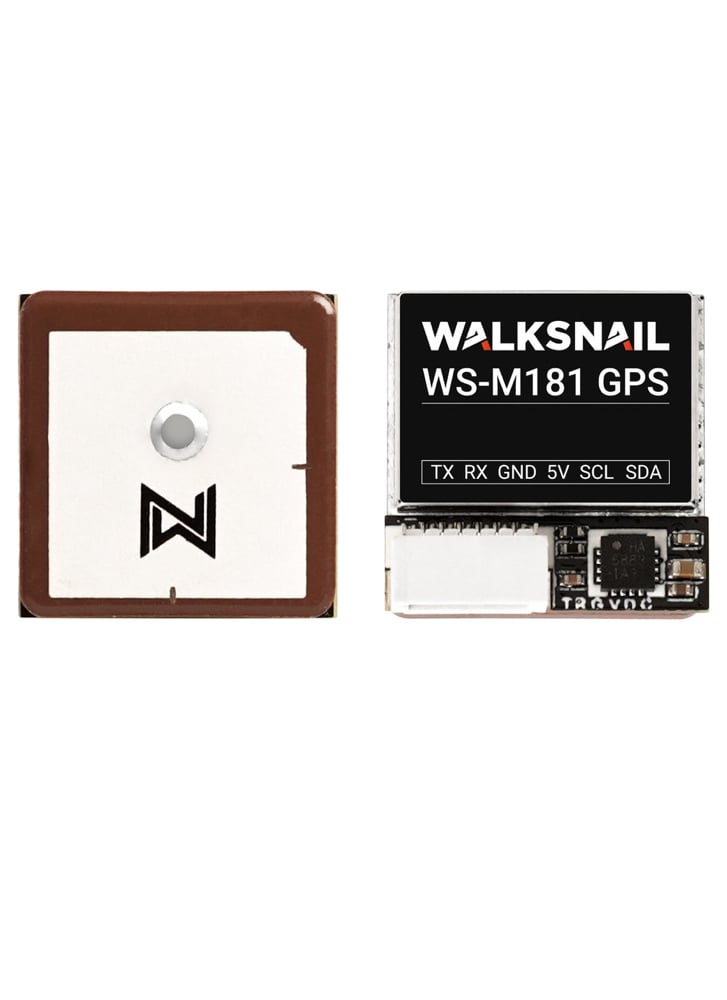

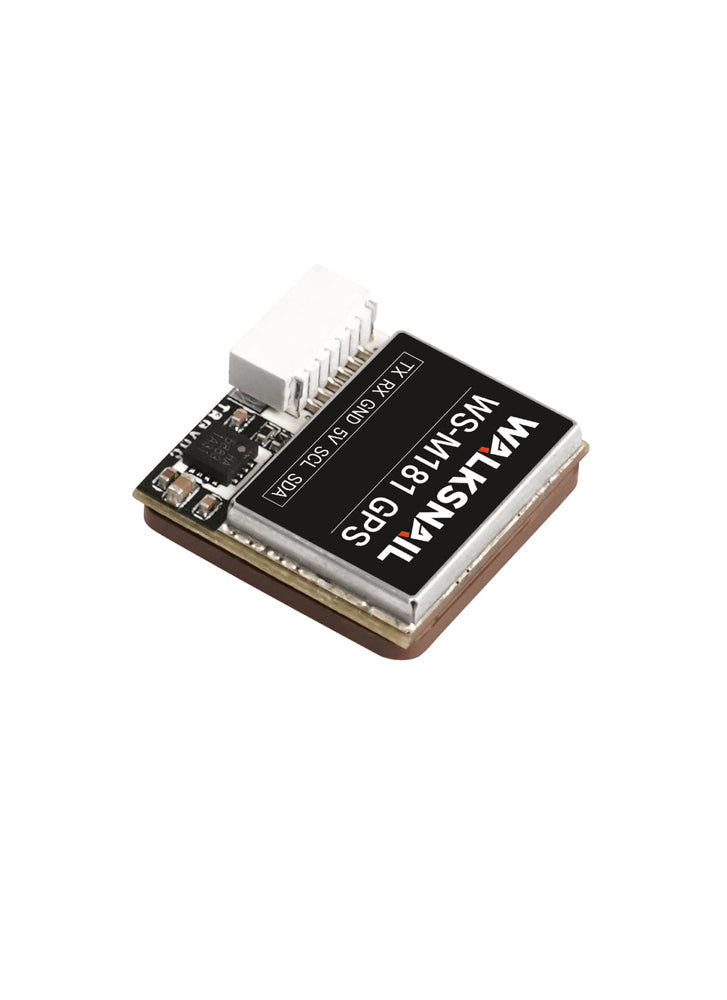

Walksnail WS-M181 M10 GPS Module with Compass
£19.90
Small in size, lightweight, fast positioning and accurate – the Walksnail WS-M181 module could be the perfect match for your quad, airplane and other RC models requiring a GPS. The module is built on the latest 10th-generation u-blox M10 platform UBX-M10050 GNSS chipset which delivers exceptional performance and accuracy. It operations over 72 channels and offers six positioning modes, providing more flexibility and enhance reception (default GPS + GLONASS + BDS multi-mode positioning). The module has a built-in battery which facilitates hot starts and quick positioning. Furthermore, the module also features a built-in Magnetometer (compass) sensor.
Note: Because the GPS chip is a new 10th generation chip, flight controllers needs to flash firmware Betaflight 4.3.0 and above. The firmware below 4.29 uses the NMEA protocol.
Specifications
- Chip: M10 (ten generation chip)
- Frequency: GPS L1,GLONASS L1,BDSB1,GALILEO E1,SBAS L1.QZSS L1
- Power: 5V

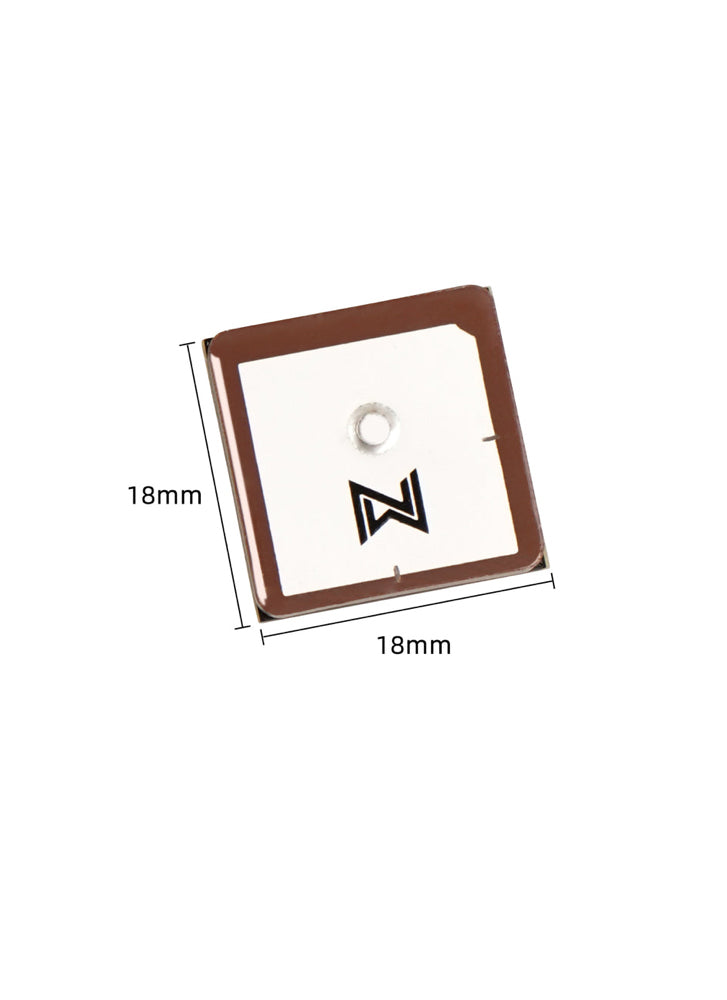

- Size: 18mmx18mmx4.6mm

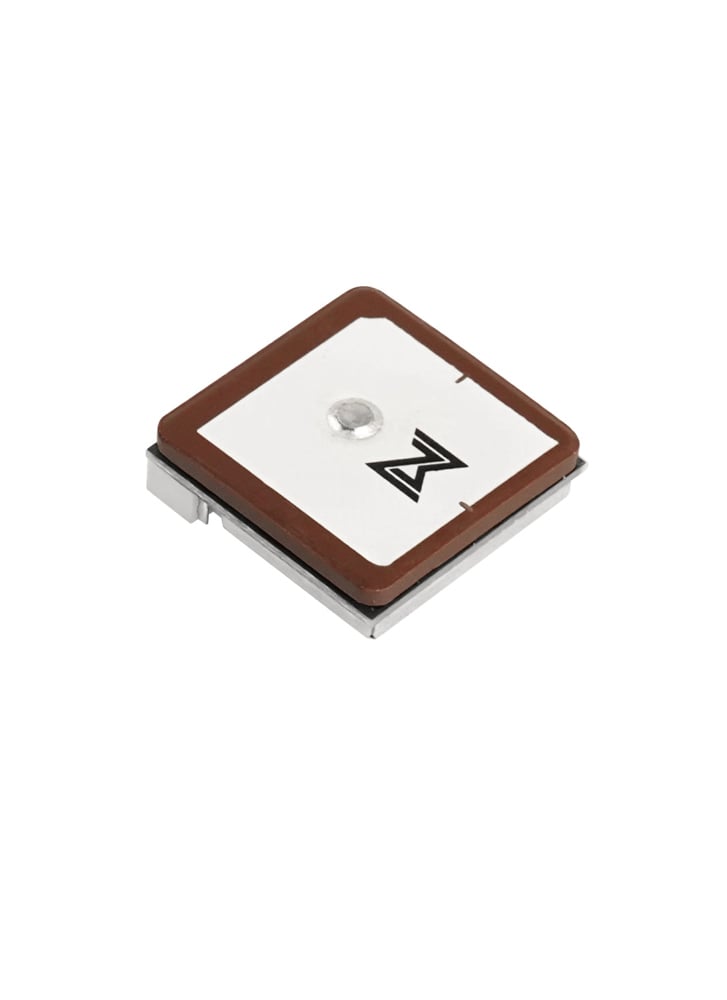

- Antenna: Ceramic antenna (oil spraying process, prevent scratching and oxidation)
- Receiving channels: 72 search channels
- Compass: QMC5883
- Baud rate: 115200dps
- Output protocol: NMEA UBLOX (dual protocol)
- Output frequency: 1Hz-10Hz, Default 10Hz
- Speed accuracy: 0.05m/s
- Horizontal positioning accuracy: 2D ACC1.5m(open air)
- Trace-162dBm
- Capture -160dBm
- Altitude: 50000m
- Speed: 500m/s
- Acceleration: 4G
- Operating temperature: -40℃-+85℃
- Storage temperature: -40℃-+105℃
In the box
- 1x Walksnail WS-M181 GPS
