Walksnail Moonlight kit
£189.00
The Moonlight is a brand new HD FPV system from Walksnail. Boasting 4k/60fps, amazing low light detail, EIS / Gyroflow technology, and a host of other features make this a standout choice as a HD system for your drone.
Features
- Starlight Camera for low-light
- Supports Gyroflow
- Dual Antennas
- Built-in EIS
- 7.4V-25.2V
- 4k/60FPS
- Natural 160° FOV
- SD card slot
- Compatible Goggles/VRX
- Walksnail Avatar Goggles X
- Walksnail Avatar HD
- Fat Shark Dominator Digital HD
- Walksnail VRX
- With its advanced starlight sensor, the Moonlight Kit excels in low-light conditions, providing clear, bright images when the sun goes down.
- Built-in EIS and supports Gyroflow technology. Allows you to capture smooth and stable video even during dynamic aerial maneuvers.
- Comes with silicone pads for mounting the camera, ensuring stability and minimizing camera shake.
- Supports manual shutter and manual ISO adjustments.
- See more with a wide 160° FOV. This expansive view offers a more natural and immersive visual experience.

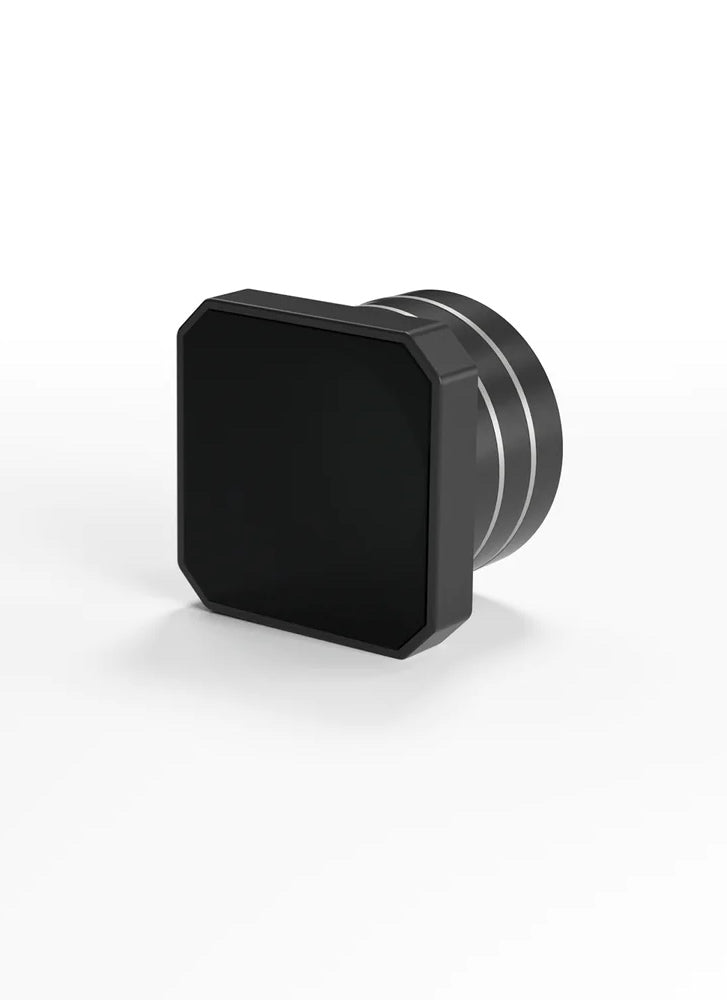

- Comes with an ND8 filter, allowing you to adapt to different lighting conditions.
Specifications
- Firmware name: AvatarMoonlight_Sky_X.X.X
- Communication Frequency: 5.725-5.850GHz
- Transmitter Power (EIRP): FCC:<30dBm
- CE:<14dBm
- SRRC:<20dBm
- MIC:<25dBm
- 1/O Interface: JST1.0*4(Power in)JST0.8*6(USB)，Micro SD card Slot；IPEX-1
- Sensor: Starlight sensor
- FOV: Max 160°
- Aperture: F2.1
- Shutter: Rolling shutter
- ISO: 100-25600
- Recording resolution: 4K@30/60fps,2.7K@30/60fps,1080p@100/60fps,720p@60fps
- Max Mbps: 150Mbps
- Video format: MP4 (H.264)
- 3D DNR: Support
- Gyroflow: Support
- Built-in EIS: Support
- Wide Power Input: 7.4V-25.2V
- Power consumption: 12V@1.4A, 8V@2.2A
- Memory card type: U3 MicroSD, Max 256G
- Camera size: 19.6mm*19mm*24mm
- VTX size: 15.3mm*34.5mm*34.5mm
- VTX Installation hole distance: 20*20mm/25*25mm (M2)
- Weight: 38.5g(Antenna not included)
- OSD: Canvas mode
- Latency: Average delay 22ms
- Antenna: 2 (IPEX)
- Filter: ND8
- Polarization: LHCP
- Frequency range: 5600MHz-6000MHz
- Average Gain: 1.9dBi
- VSWR: ＜1.5
- Input Impedance: 50Ω
- Interface: IPEX-1
- Dimension: R15 X 45mm （without cable）
- Weight: 2g

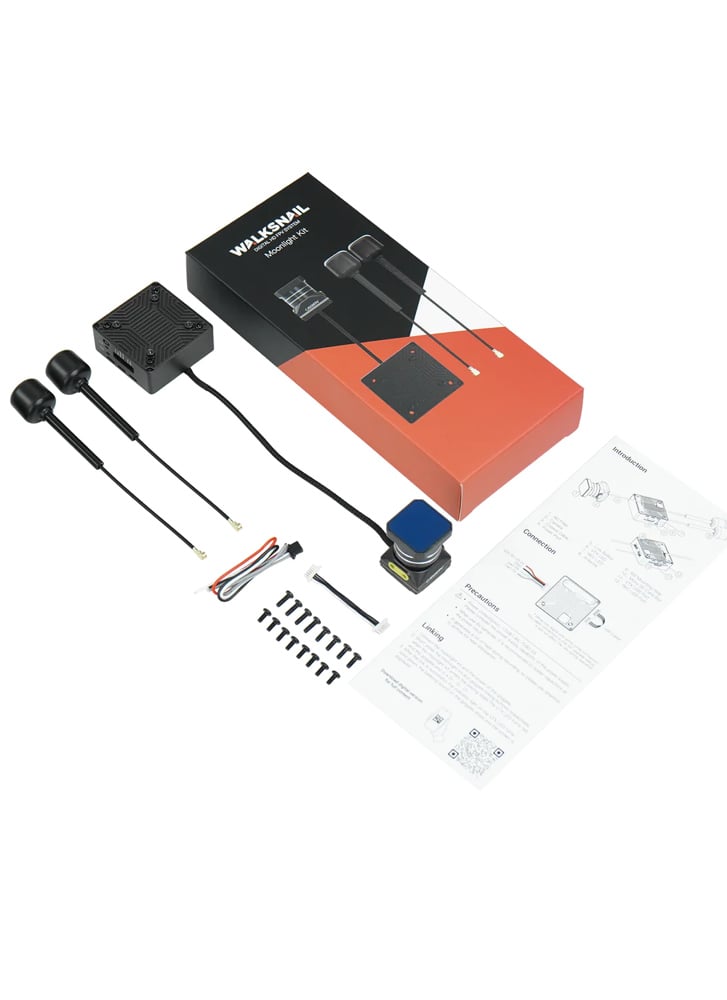

In the box

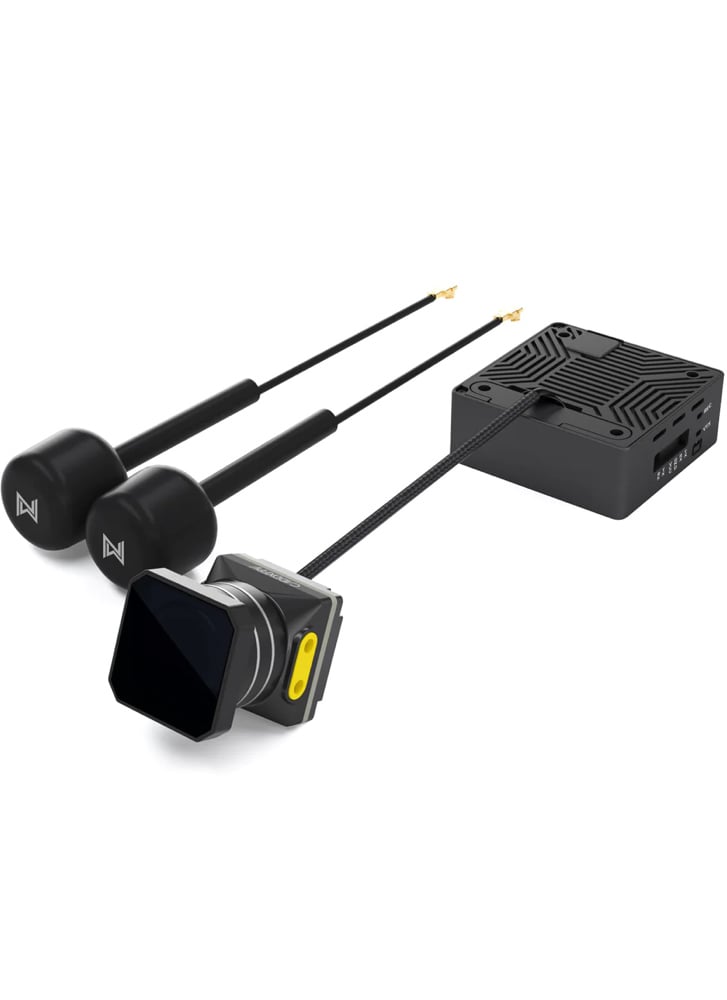

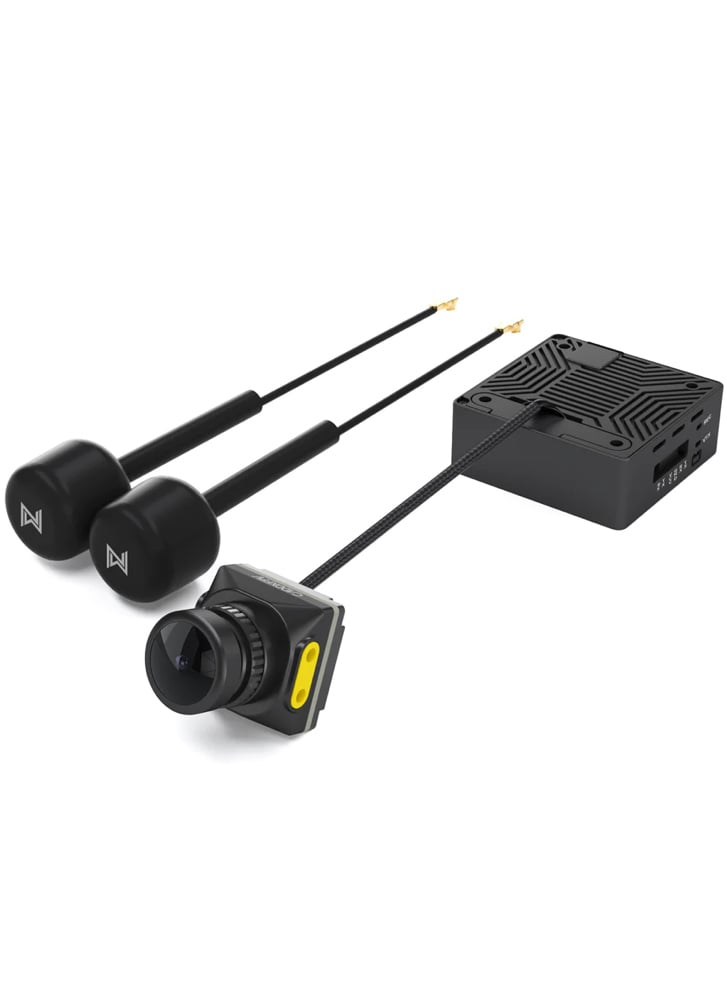

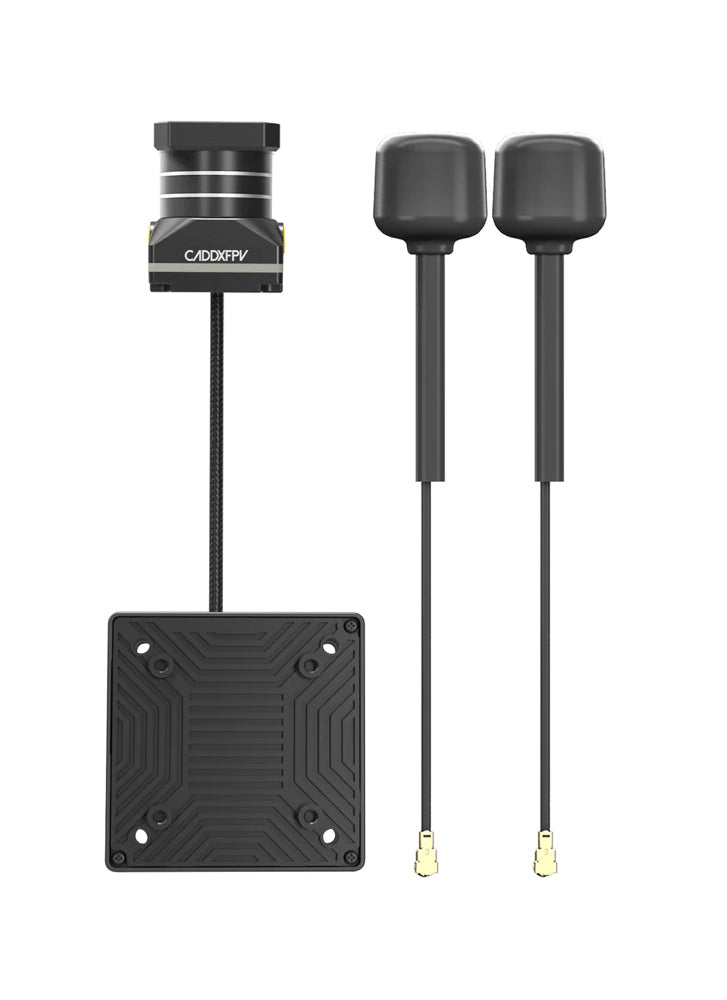

- 1x Walksnail Moonlight Kit w/ VTX Unit + Camera
- 1x Mounting Hardware
- 1x Wire Harness
- 1x ND8 Filter
- 2x Antenna
- 1x Manual
