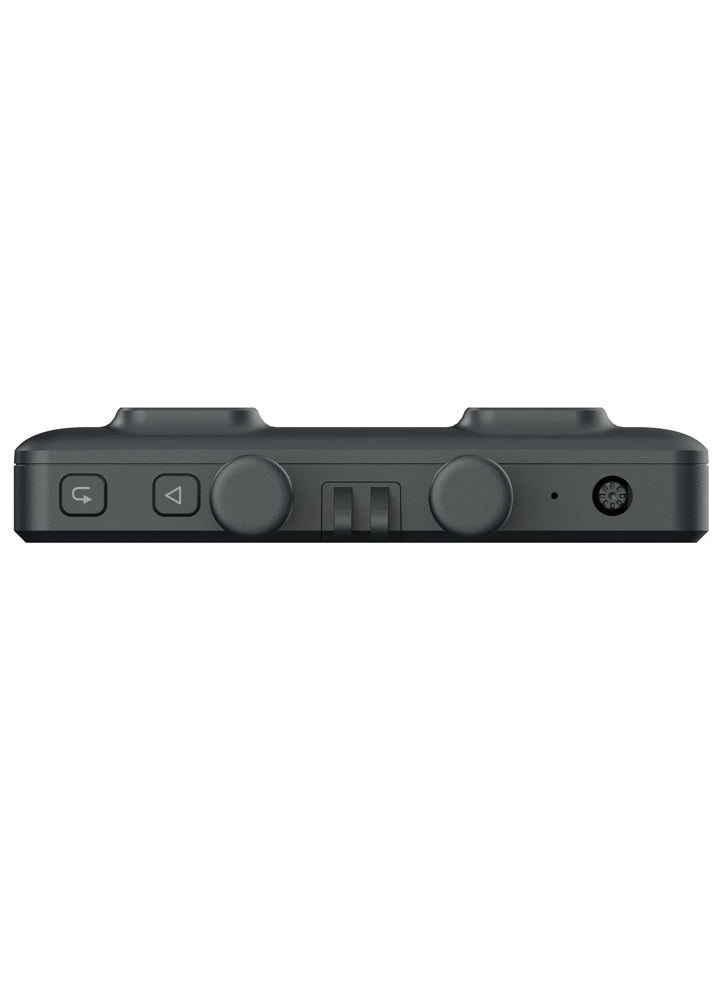

Walksnail Avatar VRX Digital HD FPV Receiver
£199.00
Join the Avatar Digital HD revolution with the Walksnail VRX Receiver Module!
The receiver is compatible with any FPV goggle or Monitor that has an HDMI IN port. The standalone receiver module enables compatibility with the Avatar line of digital transmitters. For optimal results, we recommend premium goggles such as Fatshark HDO /HDO2, Orqa FPV.One or Skyzone Sky04X . The module is designed with a built in bracket so that it can be mounted to the front of your FPV goggle.
The VRX features two built in directional antennas and two user changeable antennas to achieve a maximum transmission distance of around 4KM. It also features an integrated DVR unit (video recorder).
If you already own a suitable goggle or monitor, the Avatar VRX provides a more affordable way to get into digital FPV system, as you don’t need to spend ~£500 on a fresh set of Avatar Goggles or Fat Shark Dominator HD goggles .
Features
- Supports Betaflight Canvas Mode (full Betaflight OSD support, as well as INav and KISS)
- 4 antennas included – 2 directional antennas and 2 onmi antennas included, with a maximum transmission distance of 4km

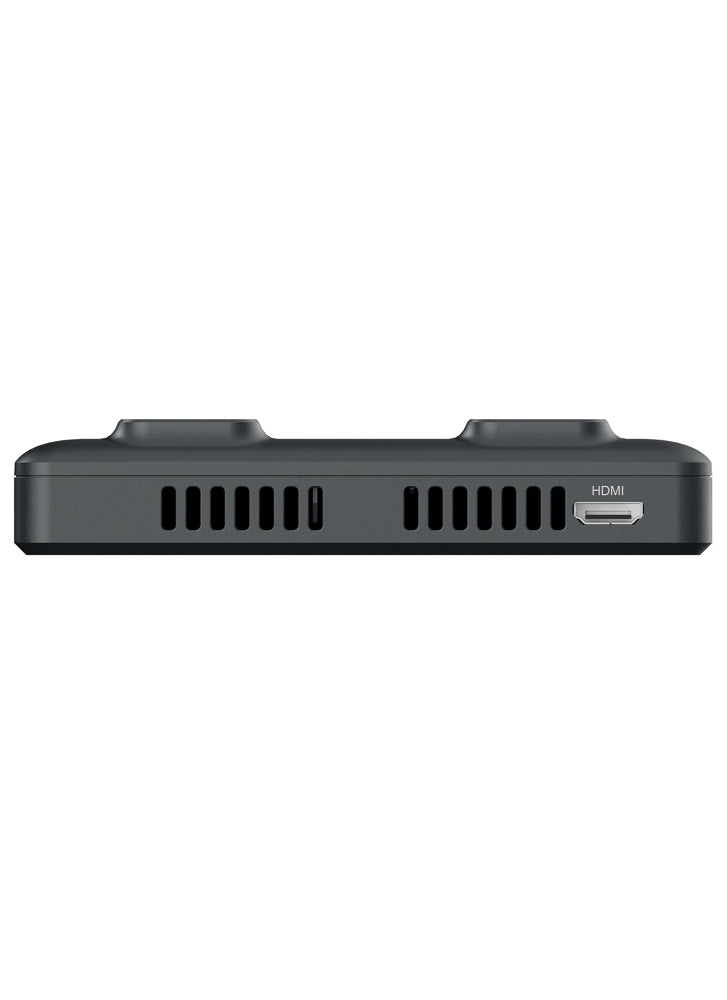

- HDMI Output – Compatible with Analog Goggles with HDMI Input
- Supports 1080p 60fps,720p 100fps and 720p 60fps
- H.265 encoding
- MicroSD card slot for DVR (supports up to 256GB micro SD cards)
- Input voltage: 7-21V (2S-5S)
Compatible Monitors:
7″ High Resolution FPV Monitor 32CH Diversity Rx & HDMI Input
Lilliput A7s 7-inch HD Field Monitor with 4K Support
Lilliput A5 5-inch 4K HDMI Full HD On-Camera Field Monitor
Hawkeye Captain 10inch 5.8GHz Diversity FPV Monitor with DVR
Specifications
- Model: Avatar HD VRX
- Communication Frequency: 5.725-5.850GHz
- Transmitter Power(EIRP) FCC:<30dBm
- CE:<14dBm
- SRRC:<20dBm
- MIC:<25dBm
- I/OInterface: HDMI,microSDcardslot,DC5.5*2.1mm
- HDMI Output: 1080p60fps,720p100fps,720p60fps
- Power Input: 7-21V(2S-5S)
- SD Card Support: 256G
- System: Avatar HD System
- Accessories (Red Bird Antennas, HDMI Cable, wires etc)
In the box
- 1x Walksnail Avatar VRX
