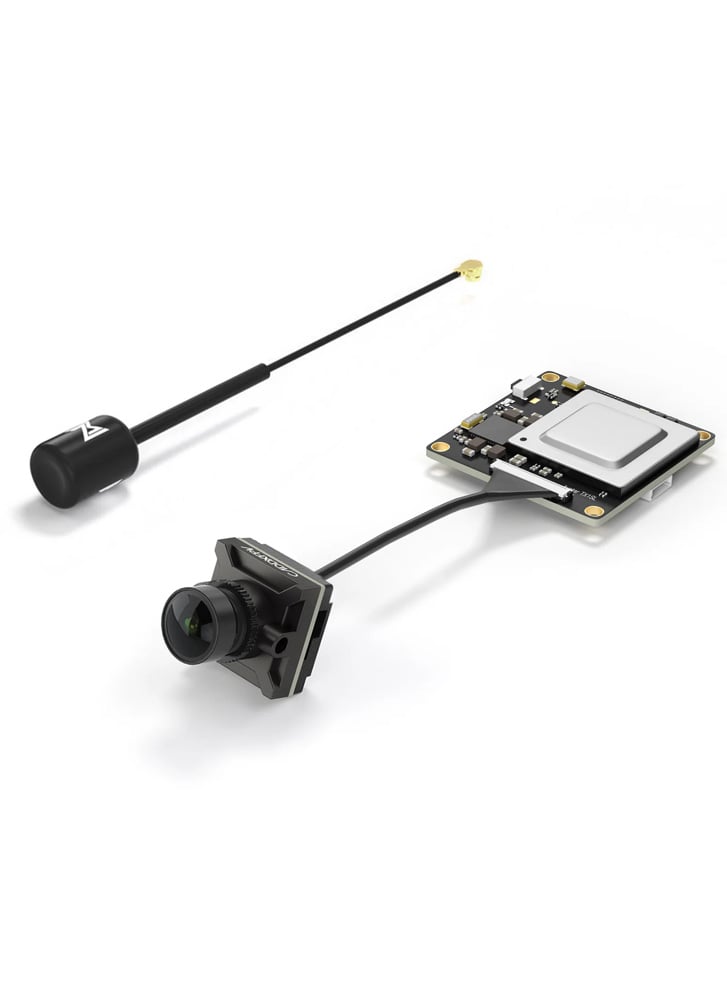

Walksnail Avatar Mini 1S HD FPV Kit (VTX + Camera)
£98.99
Update: VTX (V2) changed to Mini VTX V3 (uncased) – Now with support for RaceMode, also wider voltage input 3.1-13V (previously 5V) and increased video storage capacity 32GB, previously 8GB.
Take your whoop flights into the HD age with this tiny new Avatar HD camera and VTX kit from Walksnail.
Weighing in at just 7.8g, the Mini 1S Lite still manages to broadcast 1080p at 60fps, with an unmatched latency of just 22ms – it even has 32GB of storage in the onboard DVR!
This version of the Mini 1S kit, uses the Avatar HD Nano Camera V3 Camera, It offers a 160° field of view, with a resolution of up to 1080p 60fps. The camera measures just 14x14mm and weighs barely 3 grams. Its tiny size and low weight ensures you can mount this system on just about any aircraft.
Specifications
- Model: Avatar HD Nano Camera V3
- Image Sensor: 1/3.2-Inch 4Mp 4:3 sensor
- Resolution: 1080P/60fps,720P/120fps,720P/60fps
- Ratio: 4:3 native / 16:9
- Lens: 2.1mm
- FOV: 160°
- Aperture: F2.0
- Shutter: Rolling Shutter
- Min.Illumination: 0.001Lux
- Weight: 3g (without cable）
- Dimensions: 14x14x16.8mm
- Coaxial Cable: 90mm
- Supported FC System: Betaflight, Inav, Fettec, Kiss, ArduPilot
- Mounting Holes: 25.5×25.5mm (M2 hole)
- 2020mm (M3 hole)
- I/O Interface: JST1.04 (Power in), JST0.84 (USB)
- Communication Frequency: 5.725-5.850GHz
- Operating Temperature: -20-40℃
- Latency: Average latency 22ms
- Model: Avatar HD Mini VTX V3
- Dimensions: 30x30x6.5mm
- Wide Power Input: 3.1V-13V
- Transmitter Power (EIRP): FCC: <27dBm CE: <14dBm SRRC: <20dBm MIC: <25dBm
- FCC: <27dBm
- CE: <14dBm
- SRRC: <20dBm
- MIC: <25dBm
- Recording: 1080p/720p
- OSD: Canvas mode
- Antenna: 1 (IPEX)
- Weight: 13.4g
- Storage: 32G
- Channels: 8
