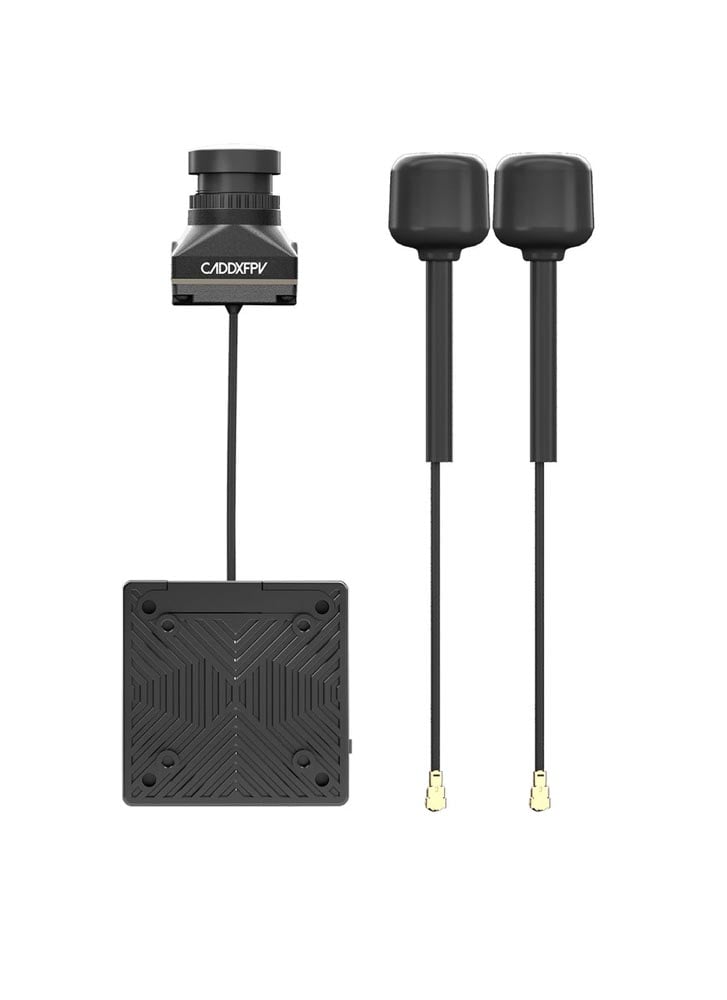

Walksnail Avatar HD Pro Kit – 32GB + Gyro w/ Dual Antennas
£169.00
The Walksnail Avatar HD Pro Kit utilizes cutting-edge H.265 coding, ensuring top-tier 1080p FPV visuals while maintaining minimal latency. It supports 1080P at 60FPS and 720P at 120FPS, delivering exceptional image quality. With a 1/1.8 inch Sony Starvis Ⅱ sensor, this camera excels in low-light conditions, providing remarkable night vision clarity equivalent to daytime. This version includes and supports dual antennas.
Features
- 1080P 120fps compatibility
- Sony Starvis Ⅱ Technology
- Built-in 32G storage
- High frame starlight
- 22ms low latency
- Dual Antennas
- Compatible 4K
- 4km range
- 6V-25.2V
- FOV160°
Specifications
- Model: Avatar HD Pro Camera
- Image Sensor: 1/1.8-Inch Sony Starvis Ⅱ Sensor
- Resolution: 1080P/60fps
- 720P/120fps, 720P/60fps
- 1080P/120fps compatibility
- Ratio: 16/9
- 4/3
- Lens: 8MP
- FOV: 160°
- Aperture: F1.6
- Shutter: Rolling shutter
- Min. Illumination: 0.00001Lux
- Weight: 9.5g
- Dimensions: 191924mm
- Coaxial Cable: 140mm
- Model: Avatar V2 Pro Module (Dual Antenna)
- Communication Frequency: 5.725-5.850GHz
- Transmitter Power (EIRP): FCC: <30dBm
- CE: <14dBm
- SRRC: <20dBm
- MIC: <25dBm
- I/O Interface: JST1.04 (Power in) JST0.86 (USB)
- Mounting Holes: 25.525.5mm
- 2020mm
- Dimensions: 33.533.510.5mm
- Storage: 32G
- Recording: 1080p/720p
- Weight: 15.4g
- Operating Temperature: -20-40℃
- Channels: 8
- Wide Power Input: 6V-25.2V
- Supported FC System: Betaflight
- Inav
- Fettec
- ArduPilot
- Kiss
- OSD: Canvas mode
- Latency: Average delay 22ms
- Antenna: 2 (IPEX)
- Polarization: LHCP
- Frequency Range: 5600MHz-6000MHz
- Gain: 1.9dBi
- VSWR: ≤1.5
- Input Impedance: 50Ω
- Interface: IPEX-1
- Size: R15 X 45mm (without cable)
- Weight: 2g
In the box
- 1x Walksnail Avatar V2 Pro VTX Module – 32GB (Dual Antennas version)
- 1x Walksnail Avatar HD Pro Camera
- 2x Walksnail Avatar V2 Antenna
- 1x USB transfer extension cable
- 1x 4 Pin silicone cable
- 4x M250.5mm gasket
- 4x M2*14mm screws
- 8x M2*4mm screws
- 4x M2*5mm screws
- 4x M2*6mm screws
