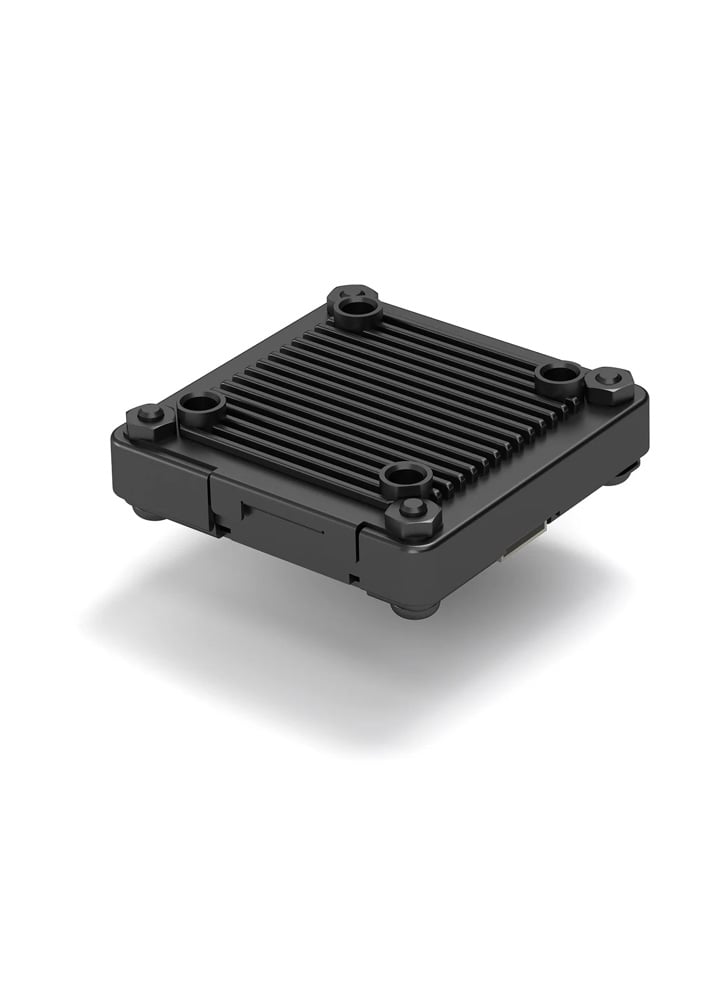

Walksnail Avatar HD Mini VTX V3 Module – 32GB

£79.00

Part No. WN01-FP0V3. Looking for full size VTX – see HERE .

The Walksnail Avatar HD Mini VTX V3 brings HD FPV to an even wider range of drones. Designed with whoops and smaller drones in mind, its compact size and ability to run on 1S power make it perfect for micro builds. Its compatibility with 3.1V to 13V input voltage (1S-3S) and flexible mounting options—25.5×25.5mm (M2) or 20×20mm (M3)—also make it well-suited for lightweight setups and even larger quads.

With up to 500mW of output power, the VTX delivers reliable video transmission, while 32GB of onboard storage supports 1080p 60fps interference-free recording, without the need for an SD card. This design keeps weight low and flight times longer, making it an excellent all-around choice for both small and large drones without compromising video quality.

Camera / Antennas are not included.

Note: USB Cable needs to be purchased separately.

Specifications

• Model Avatar HD Mini VTX V3
• Communication Frequency 5.725-5.850GHz
• Transmitter Power (EIRP) FCC:<27dBm
• CE:<14dBm
• SRRC:<20dBm
• MIC:<25dBm

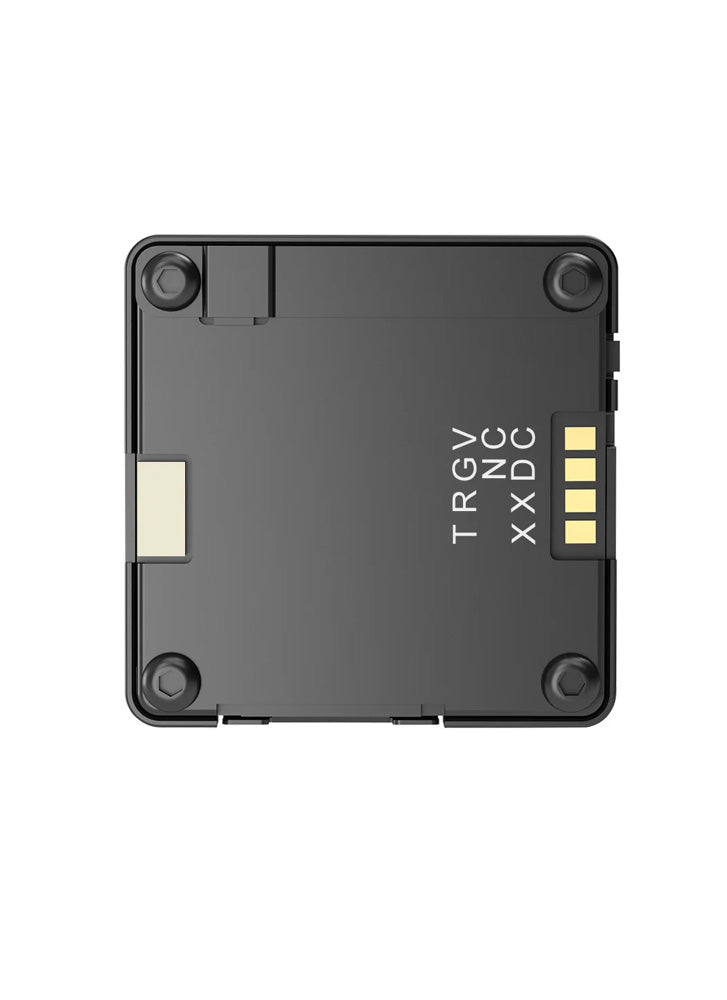

• I/O Interface JST1.0*4(Power in)JST0.8*4(USB)
• Mounting Holes 25.5*25.5mm(M2 hole)
• 20*20mm(M3 hole)
• Dimensions 31.5*31.5*9.4mm
• Storage 32G
• Recording 1080p/720p
• Weight 13.4g
• Operating Temperature -20-40℃
• Channels 8
• Wide Power Input 3.1V-13V
• Supported FC System Betaflight
• Inav
• Fettec
• Kiss
• ArduPliot
• OSD Canvas mode
• Latency Average latency 22ms
• Antenna 1(IPEX)

In the box

• 1x Walksnail Avatar HD Mini VTX V3
