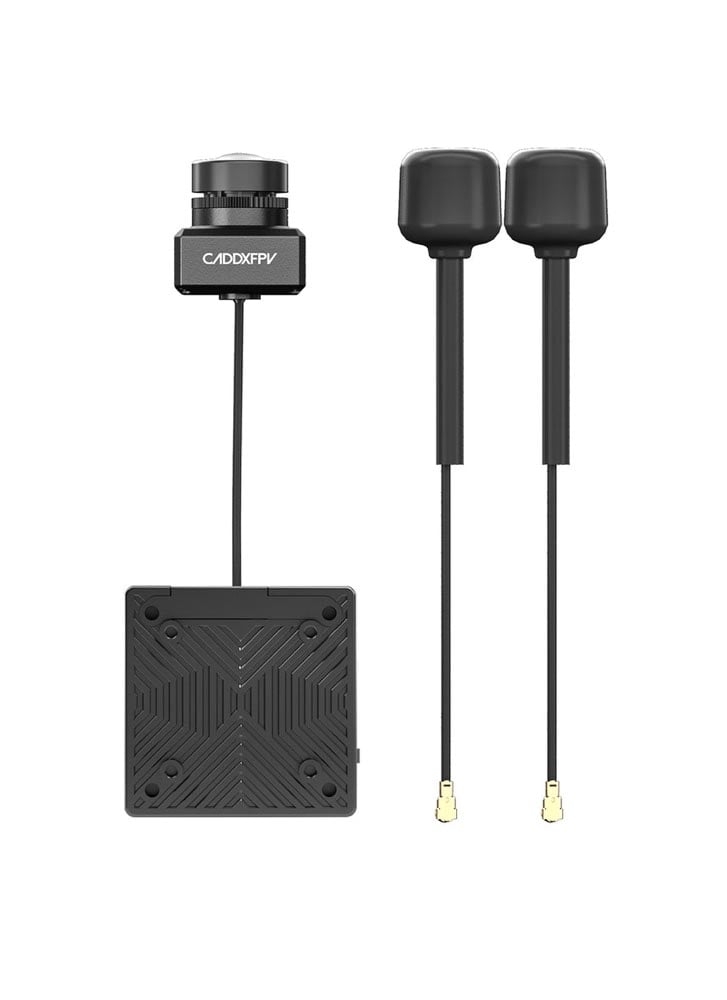

Walksnail Avatar HD Kit V2 32GB + Gyro w/ Dual Antennas
£159.00
Experience FPV like never before with the Walksnail Avatar HD Kit V2 . Utilizing H.265 technology, it delivers stunning 1080p image quality with minimal latency. The Camera V2 boasts a 4:3 native sensor, perfect for capturing breathtaking aerial views, making it ideal not only for FPV racing but also for immersive drone flights. Paired with the Avatar V2 module and its advanced specs like 1080p/720p recording, eight channels, and support for multiple FC systems, this system sets a new standard for FPV enthusiasts. This version includes and supports dual antennas.
Features
- The only native 4:3 high-definition sensor in the FPV industry
- 1080P 120fps compatibility
- Built-in 32G storage
- Lightweight design
- Support Gyroflow
- 22ms low latency
- Dual antennas
- 4K Compatible
- Ranging Mode
- 4KM range
- 6V-25.2V
- FOV160°
Specifications
- Model: Avatar V2 camera
- Image Sensor: 1/3.2-Inch 4Mp 4:3 sensor
- Resolution: 1080P/60fps
- 720P/100fps
- 720P/60fps
- 1080P/120fps compatibility
- 1080P/100fps compatibility
- Ratio: 4:3 native / 16:9
- Lens: 2.1mm
- FOV: 160°
- Aperture: F2.0
- Shutter: Rolling shutter
- Min. Illumination: 0.001Lux
- Weight: 7.2g
- Dimensions: 191922mm
- Coaxial Cable: 140mm
- Gyroflow: Only 32G VTX Supported
- Model: Avatar V2 module (Dual Antenna)
- Communication Frequency: 5.725-5.850GHz
- Transmitter Power (EIRP): FCC: <30dBm
- CE: <14dBm
- SRRC: <20dBm
- MIC: <25dBm
- I/O Interface: JST1.04 (Power in) JST0.86 (USB)
- Mounting Holes: 25.525.5mm
- 2020mm
- Dimensions: 33.533.510.5mm
- Storage: 32G
- Recording: 1080p/720p
- Weight: 15.4g
- Polarization: LHCP
- Frequency Range: 5600MHz-6000MHz
- Gain: 1.9dBi
- VSWR: ≤1.5
- Input Impedance: 50Ω
- Interface: IPEX-1
- Size: R15 X 45mm (without cable)
- Weight: 2g
In the box
- 1x Walksnail Avatar V2 VTX Module – 32GB + Gyro(Dual Antennas version)
- 1x Walksnail Avatar V2 Camera
- 2x Walksnail Avatar V2 Antenna
- 1x USB transfer extension cable
- 1x 4 Pin silicone cable
- 4x M250.5mm gasket
- 4x M2*14mm screws
- 8x M2*4mm screws
- 4x M2*5mm screws
- 4x M2*6mm screws
