Walksnail Ascent Lite Kit (VTX + Camera)
£34.99

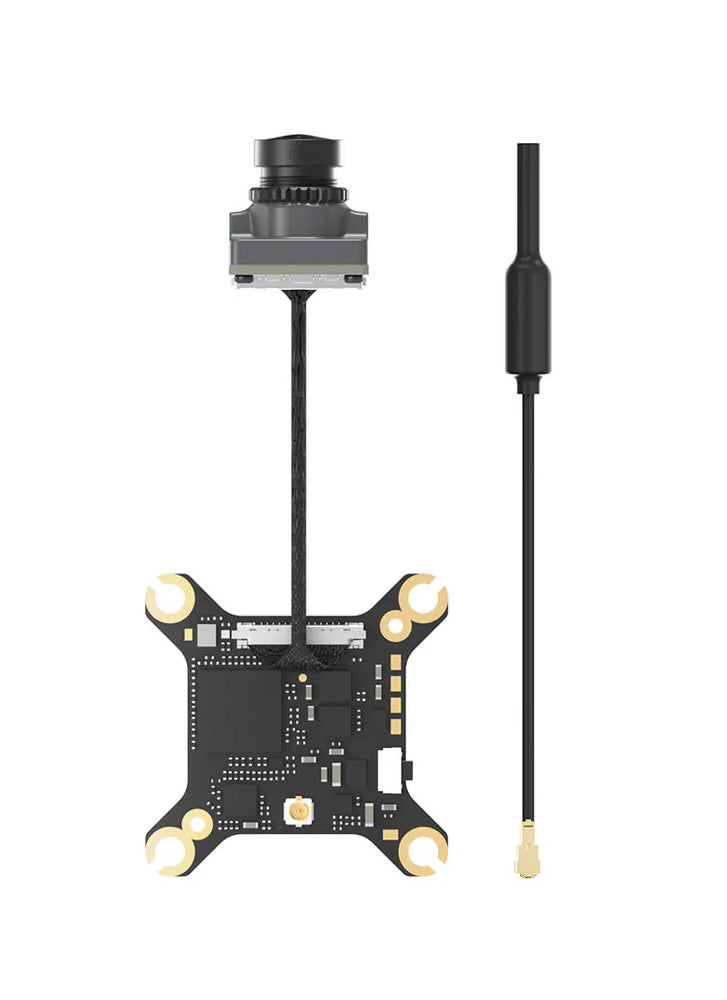

The Walksnail Ascent Lite Kit is a compact digital FPV system designed for lightweight builds where low latency and clean HD video are the priority. The kit includes the Ascent Lite VTX and camera, delivering 1080p footage with an average end-to-end latency of around 35 ms for responsive flying.
Operating in the 5.8 GHz band, the system supports multiple bandwidth modes and bitrates up to 25 Mbps, allowing pilots to tune image quality and link stability for different environments. A wide 3–12.6 V input range makes it suitable for 1–3S setups, while the small VTX and micro-size camera keep overall weight low.
MSP + DisplayPort support enables Canvas-mode OSD with Betaflight, iNav, KISS, Fettec, and ArduPilot, overlaying flight data directly onto the digital feed. Firmware updates are handled via USB using Caddx’s PC tool, and pairing with compatible Walksnail goggles is quick and straightforward.
Compatibility note: The Ascent Lite system uses a different platform to the Walksnail Avatar HD range and is not compatible with Walksnail Avatar HD VTXs, cameras, or goggles.
Features
- Ultra-Light & Efficient: Weighing only 6g, this ultra-light VTX reduces drone load for better agility and endurance. Consumes 30% less power than similar models, every flight feels smoother and lasts longer.
- Crisp 1080P Vision: Built with a 1/2.8” image sensor, it delivers clear and fluid 1080P/60FPS footage. Enjoy 35ms low latency for real-time response and precise flight control.
- Wider View, Longer Range: Get an immersive 147° FOV with a 16:9 aspect ratio. Fly confidently up to 3KM, maintaining a stable and clear signal throughout.
- Easy Setup, Great Value: Compatible with F4/F7/H7 flight controllers and firmware like Betaflight and Ardupilot.
- Best Value Digital Entry Choice: Offering HD image and low latency at an unbeatable price, it’s the perfect upgrade for analog pilots, and a cost-effective entry for DIY players.
Specifications

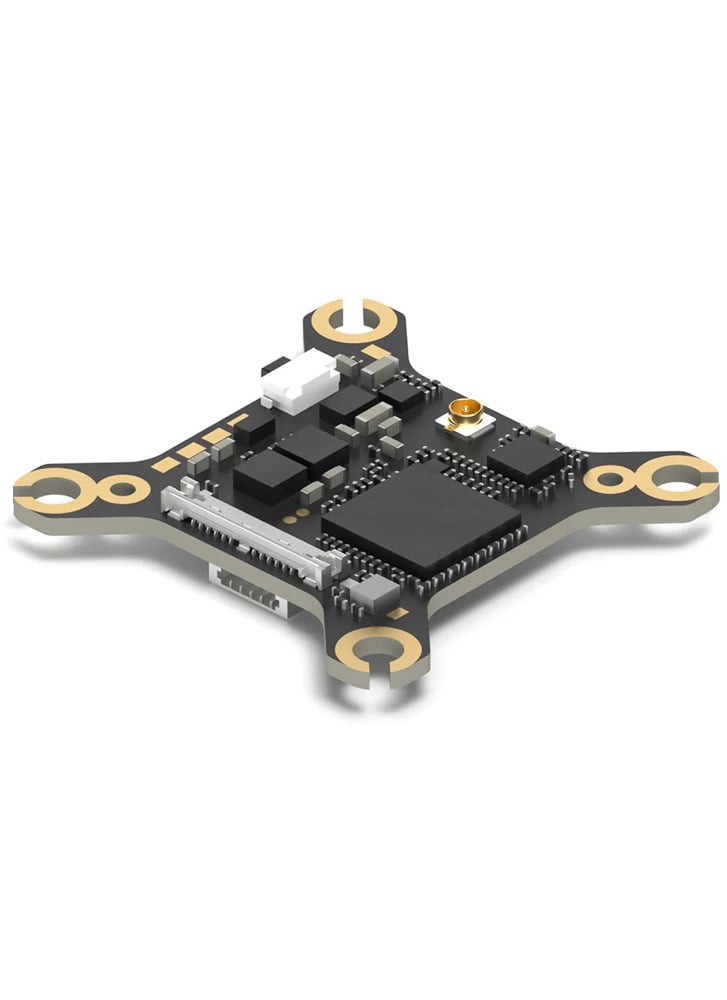

- Name: Ascent Lite VTX
- Model: WN13-4S09B
- Operating Frequency: 5.730–5.815 GHz
- Transmit Power (EIRP): FCC/SRRC <20 dBm
- CE <14 dBm
- Channels: 3
- Weight: 6 g (antenna not included)
- Mounting Pattern: 25 mm
- Aspect Ratio: 16:9
- Resolution: 1080p at 60 fps
- 720p at 100 fps
- Image Sensor: 1/2.8-inch
- Operating Bandwidth: 5 M / 10 M / 20 M / Auto
- Antenna Connector: IPEX-1
- End-to-End Latency: Average 35 ms
- OSD: Canvas mode
- Bitrate: Up to 25 Mbps
- Supported Flight Controllers: Betaflight, iNav, Fettec, KISS, ArduPilot
- Input Voltage: 3–12.6 V
- I/O Interface: JST1.0 × 4 (power)
- HSG0.8 × 5 (USB)

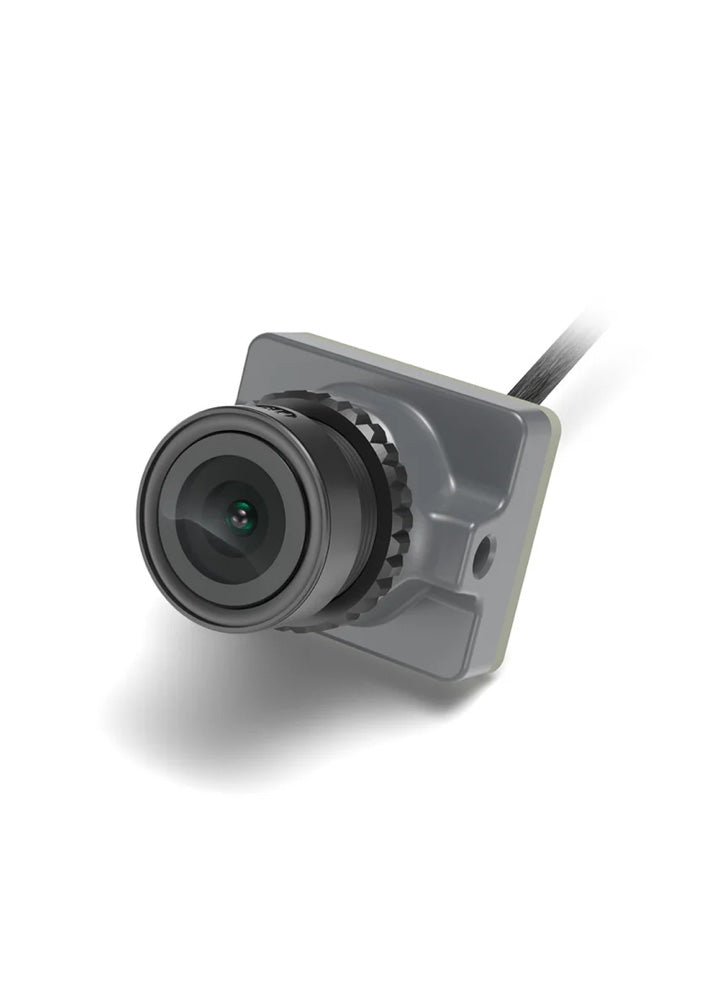

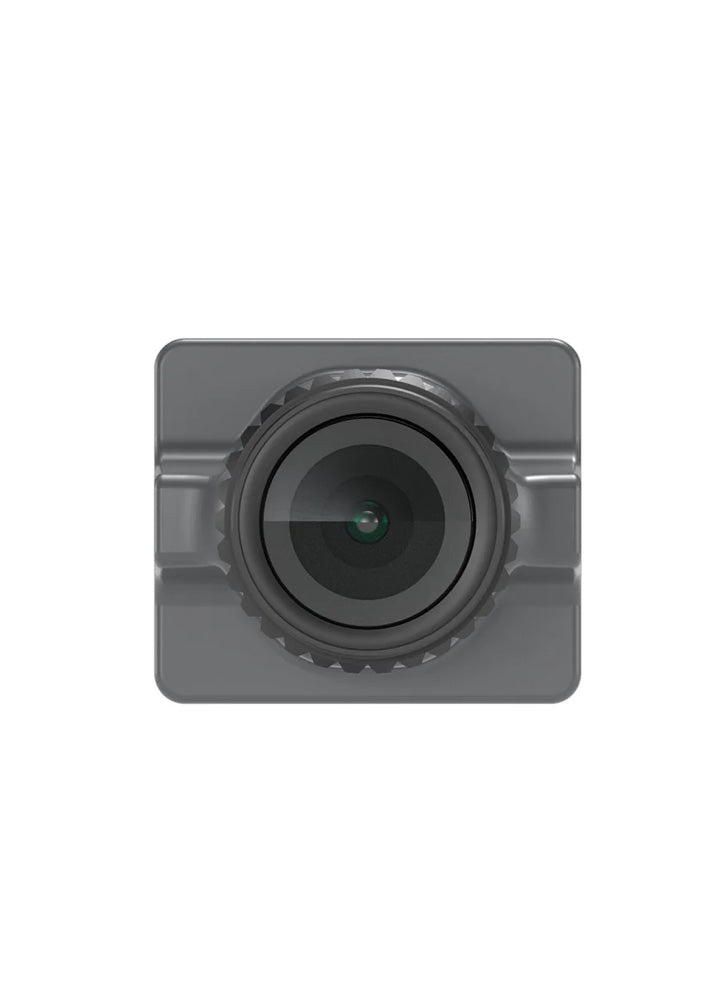

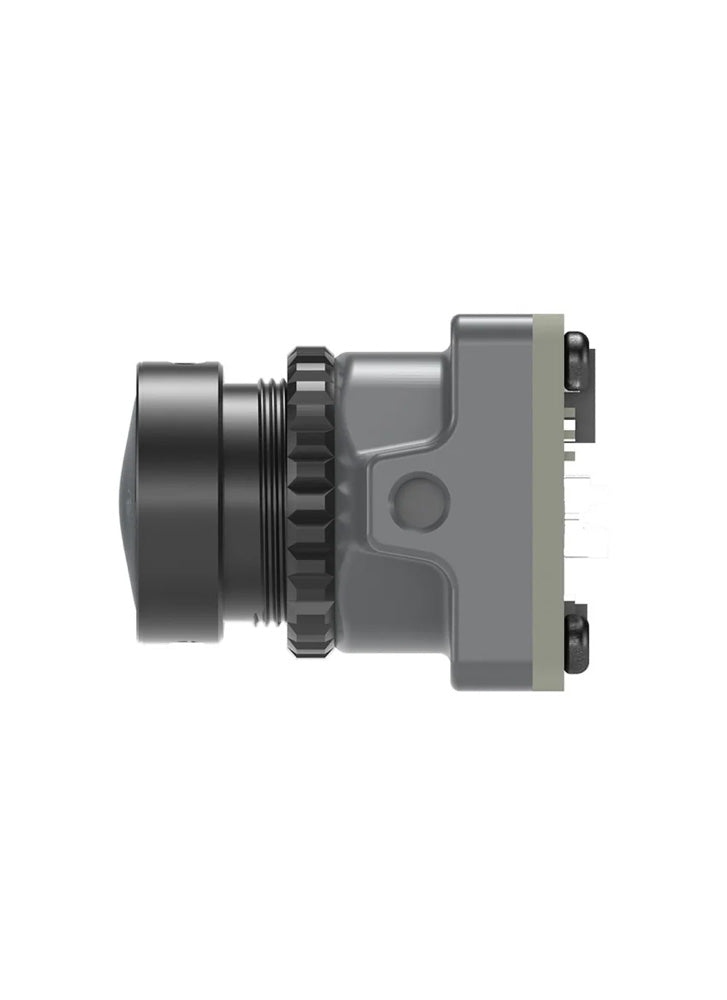

- Dimensions: Camera 12 × 14 × 15 mm
- VTX 30.5 × 30.5 × 3.5 mm
