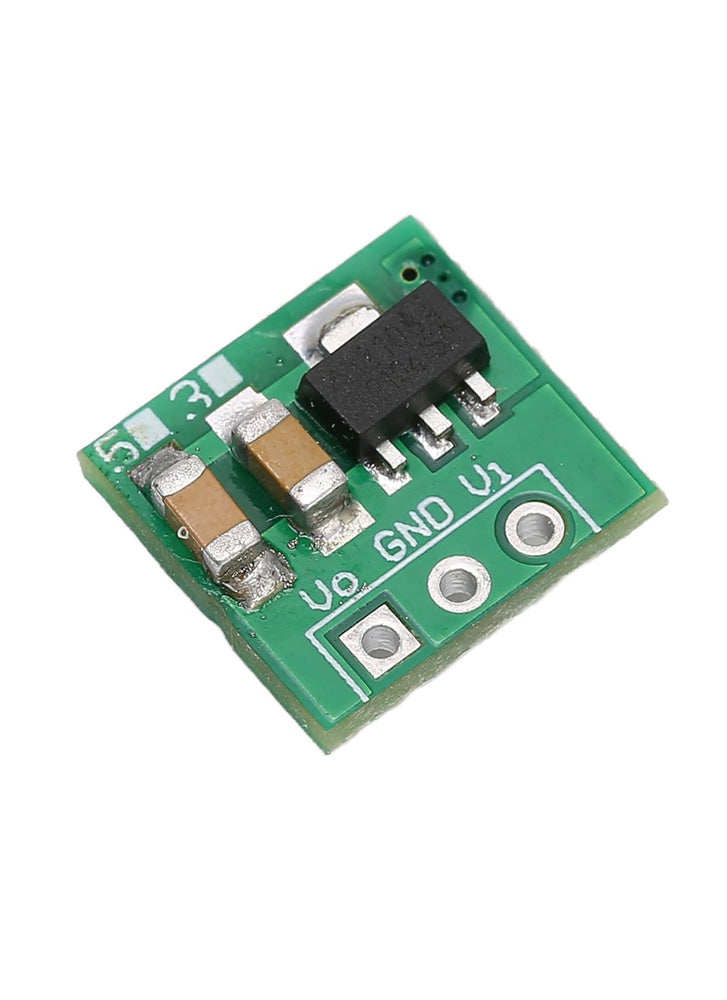

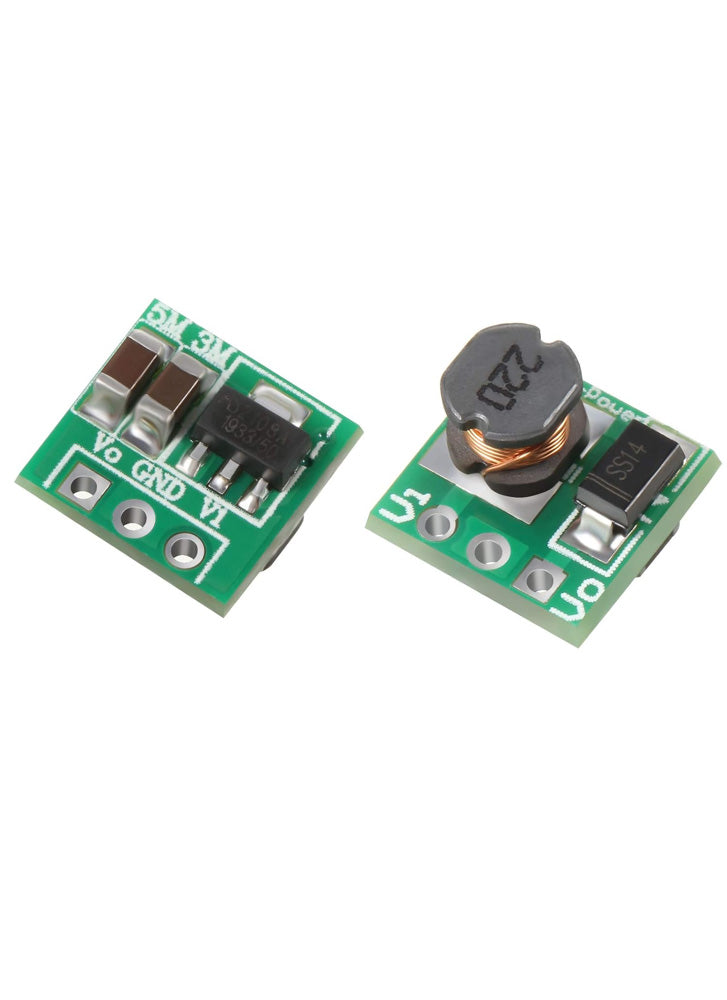

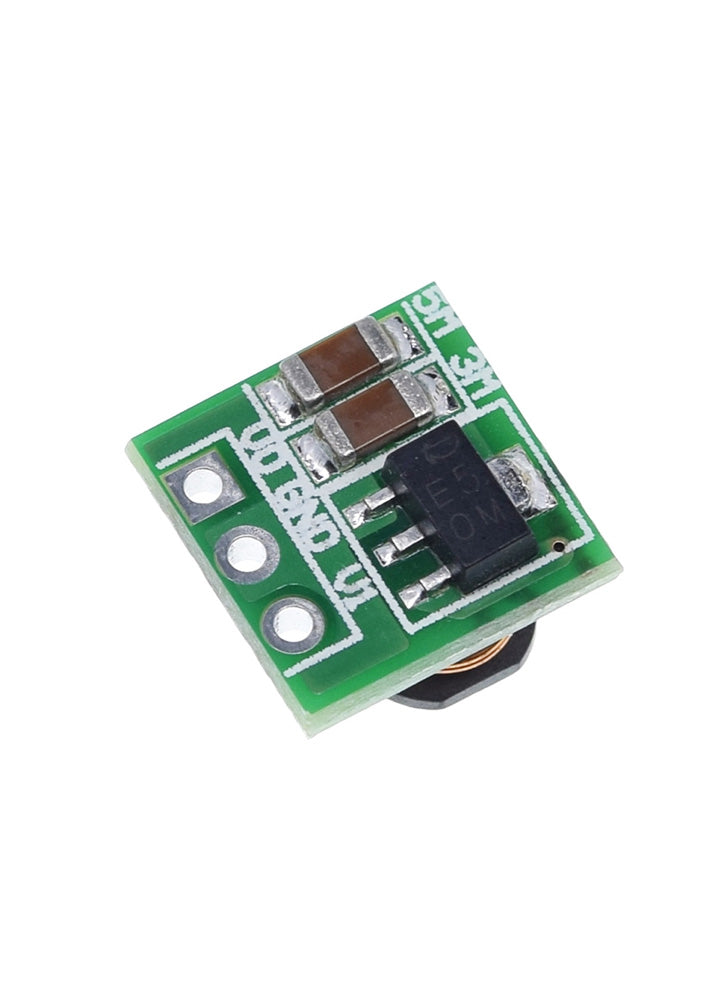

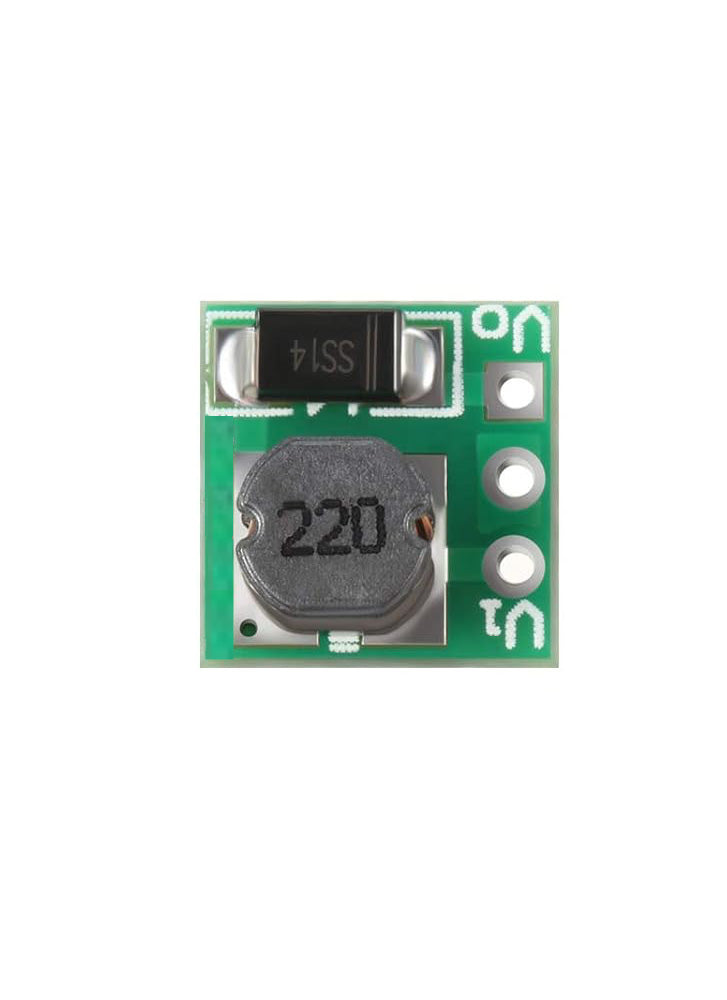

Voltage Booster DC-DC Step Up Power Module 0.9-5V to 5V
£3.50
The Voltage Booster DC-DC Step Up Power Module (0.9–5V to 5V) is a compact and efficient solution for powering 5V electronics from low-voltage sources. Designed to boost input voltages as low as 0.9V up to a stable 5V output, this module is perfect for battery-powered projects, including those using single AA or AAA cells. Despite its tiny footprint—measuring just 11mm x 10.5mm x 7.5mm and weighing about 1 gram—it delivers a maximum output current of 480mA with a typical conversion efficiency of 85%. With a 150kHz operating frequency and standard 2.54mm pin spacing, it’s easy to integrate into breadboards or custom PCBs. Whether you’re prototyping or finalising a lightweight, space-constrained design, this boost converter offers reliable 5V output in a small package.
Input voltage 0.9-5V; output voltage 5V
Maximum output current: 480 mA
Features
- Starting Up Voltage:0.8V; output current:7mA
- Input Voltage:1-1.5V; output voltage 5V; current 40-100mA
- Input Voltage:1.5-2V; output voltage 5V; current 100-150mA
- Input Voltage:2-3V; output voltage 5V; current 150-380mA
- Input Voltage: 3V; output voltage 5V; current 380-480mA
Specifications
- Input voltage range:0.9-5V DC Output: 5V
- Maximum Output Current:480mA
- Standby current: <7mA
- Operating Frequency:150KHz
- Typical Conversion Efficiency:85%
- Pins distance: 2.54mm

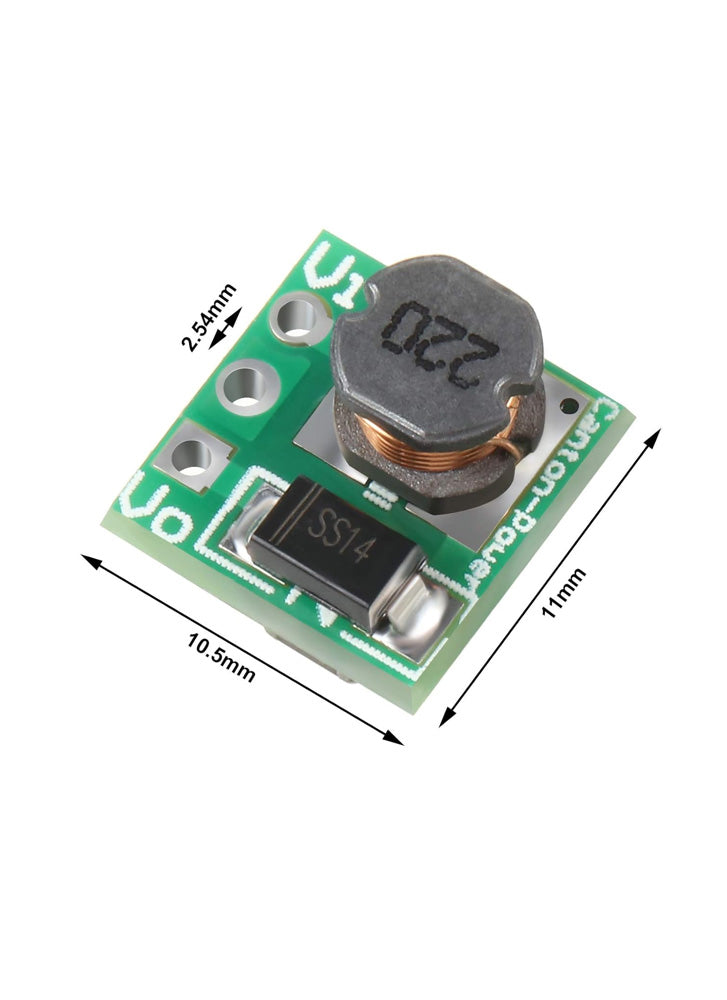

- Size & Weight: 11×10.5×7.5mm
In the box
- 1x 0.9-5V To 5V DC-DC Step-Up Power Module
