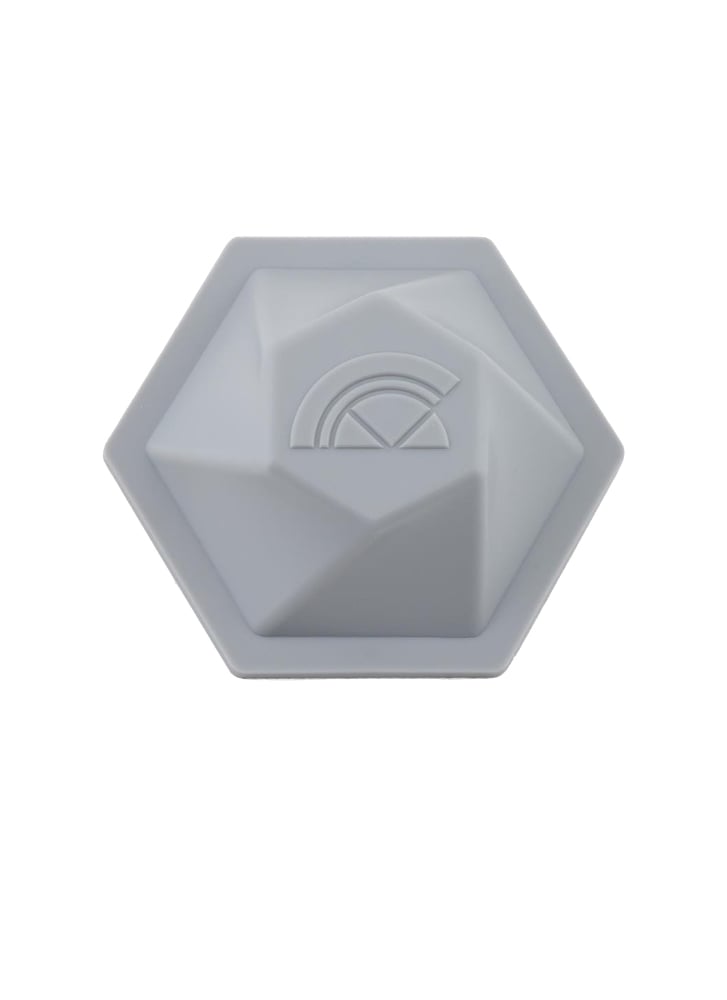

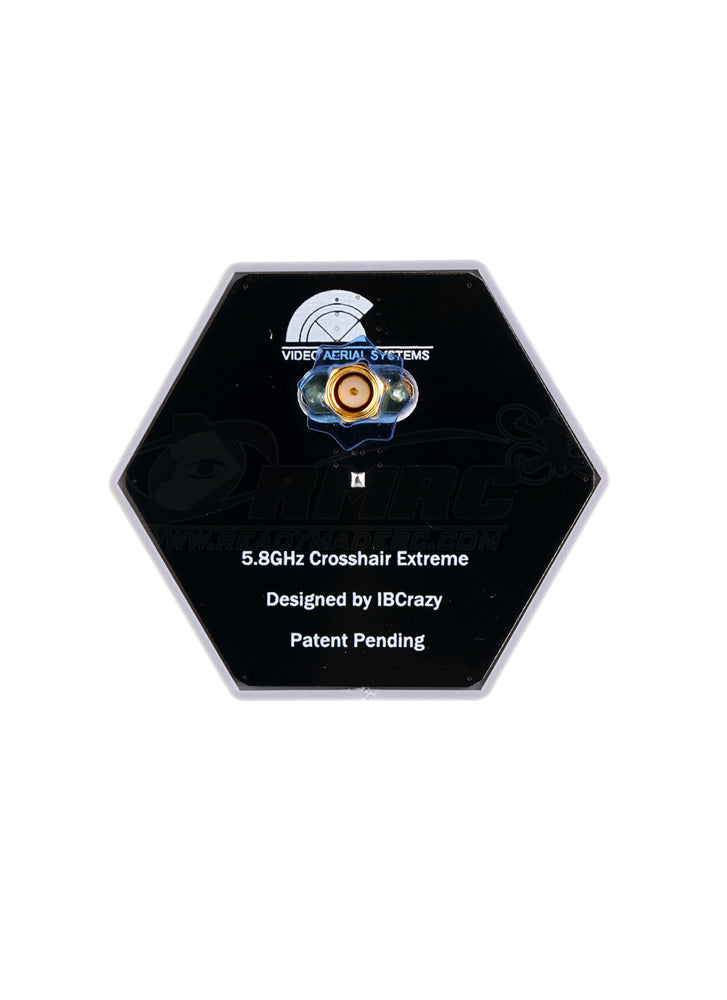

VAS Crosshair XTREME 5.8GHz FPV Receiver Antenna (LHCP)

£34.99

There is a New Version: VAS Crosshair Extreme Mini – Click HERE

FPV’s favorite “patch killer” antenna has a new upgraded element. The patent pending vector-phasing technology of the Crosshair Xtreme gives both longer range and better signal clarity. Designed to be a long range/obstacle penetration antenna, improvements include increased gain, beamwidth, and bandwidth.

This is the Left-Hand Circularly Polarised version of the Crosshair Extreme, if you need RHCP we sell it here .

Specifications

• Gain: 10.25dbic
• Polariztion: LHCP
• Axial ratio: 0.99 (measured)
• Bandwidth: 5300Mhz-6400MHz
• Flight beam: 120 degrees
• -3db point: +/- 30 degrees
• Dimensions: 7.2cm x 6.2cm x 2.1cm
• Weight: 16.6g (0.58oz)

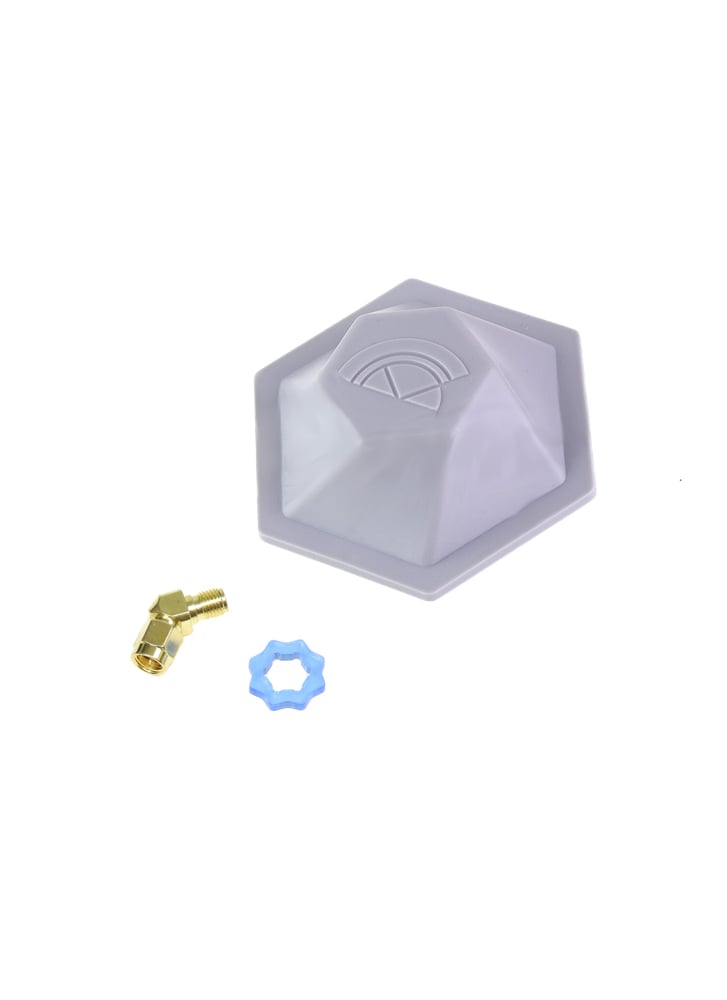

In the box

• 1x Crosshair XTREME Antenna
• 1x 45 Degree SMA Adapter
