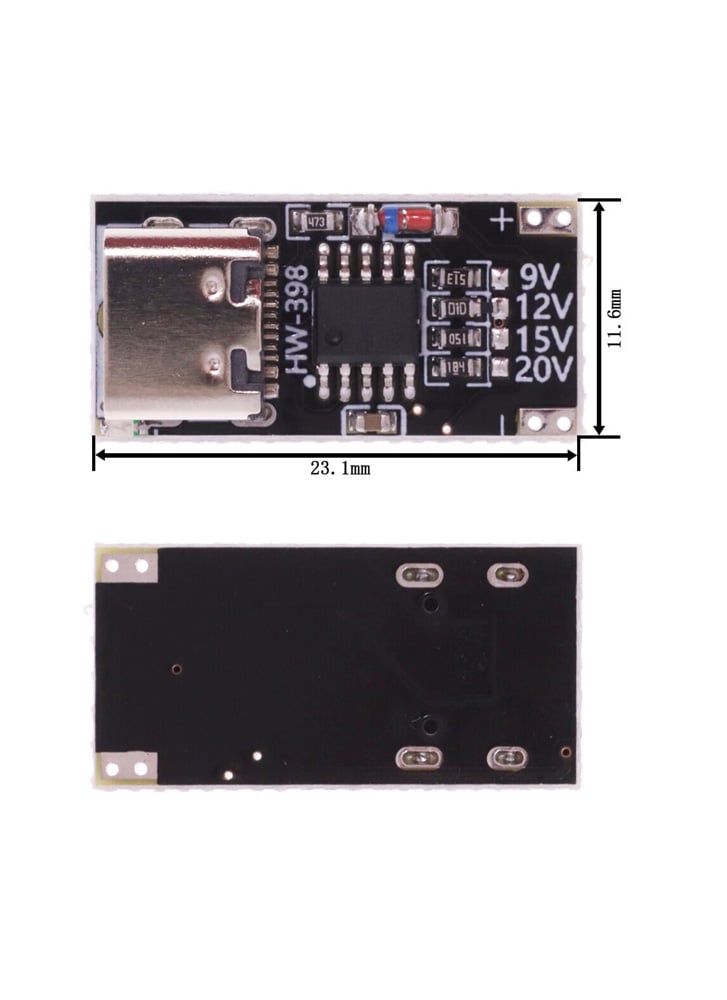

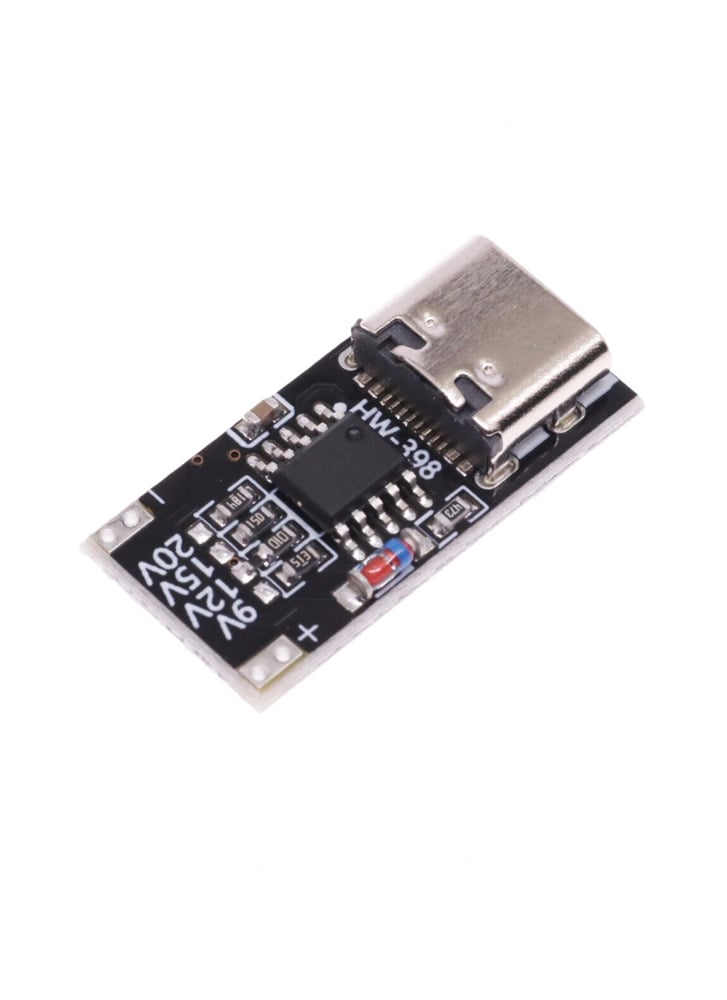

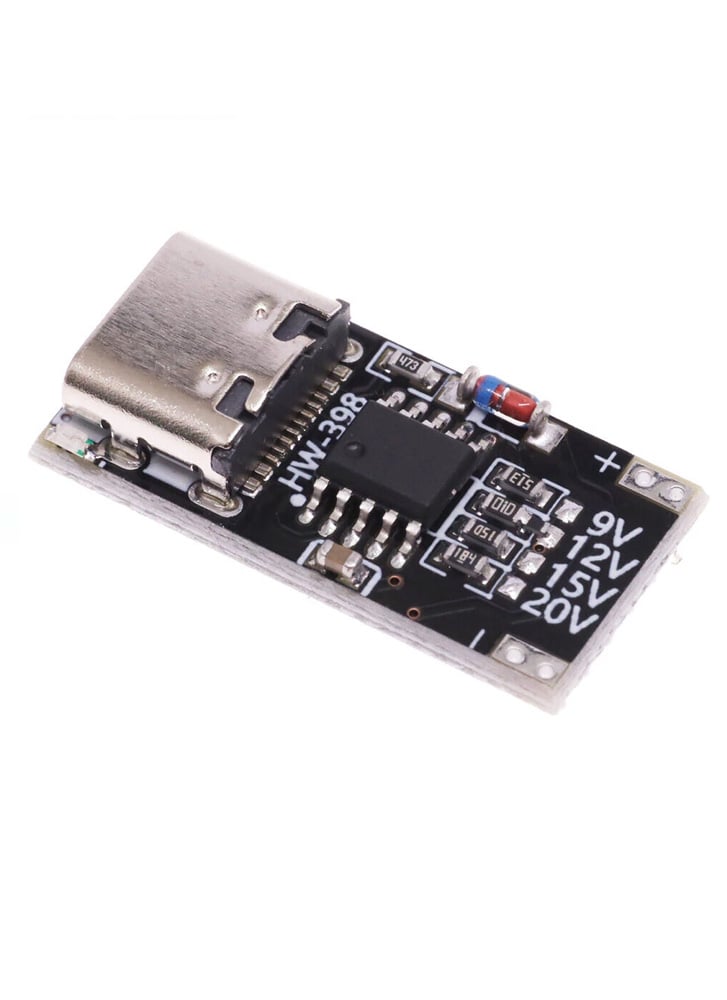

USB-C PD Trigger Module (5V / 9V / 12V / 15V / 20V) Adjustable Voltage Selector Board
£3.70
Run FPV gear and electronics straight from a USB-C Power Delivery power bank or charger with this compact USB-C PD Trigger Module. It negotiates a higher voltage from a compatible USB-C PD source and gives a selectable 5V, 9V, 12V, 15V or 20V output, which suits FPV goggles, soldering irons, chargers, cooling fans and other field equipment.
Output voltage is set by bridging the onboard solder pads; the module arrives configured for 5V (unbridged). Small and light, it fits portable power projects, DIY electronics and custom adapters.
Features
- Converts USB-C PD power into a selectable DC output
- Supports 5V, 9V, 12V, 15V, and 20V output voltages
- Ideal for FPV goggles, chargers, soldering irons, and DIY projects
- Compact and lightweight design
- Simple solder-pad voltage selection
- Compatible with a wide range of fast-charging protocols
Note: The selected output voltage must be supported by the connected USB-C power source. If the requested voltage is unavailable, the module will output the highest voltage supported by the power source.
Specifications
- Input: USB-C
- Supported Protocols: PD3.0, PD2.0, PPS, QC4+, QC3.0, QC2.0, FCP, AFC
- Output Voltages: 5V / 9V / 12V / 15V / 20V
- Default Output Voltage: 12V
- Dimensions: 23 x 12 x 4mm
