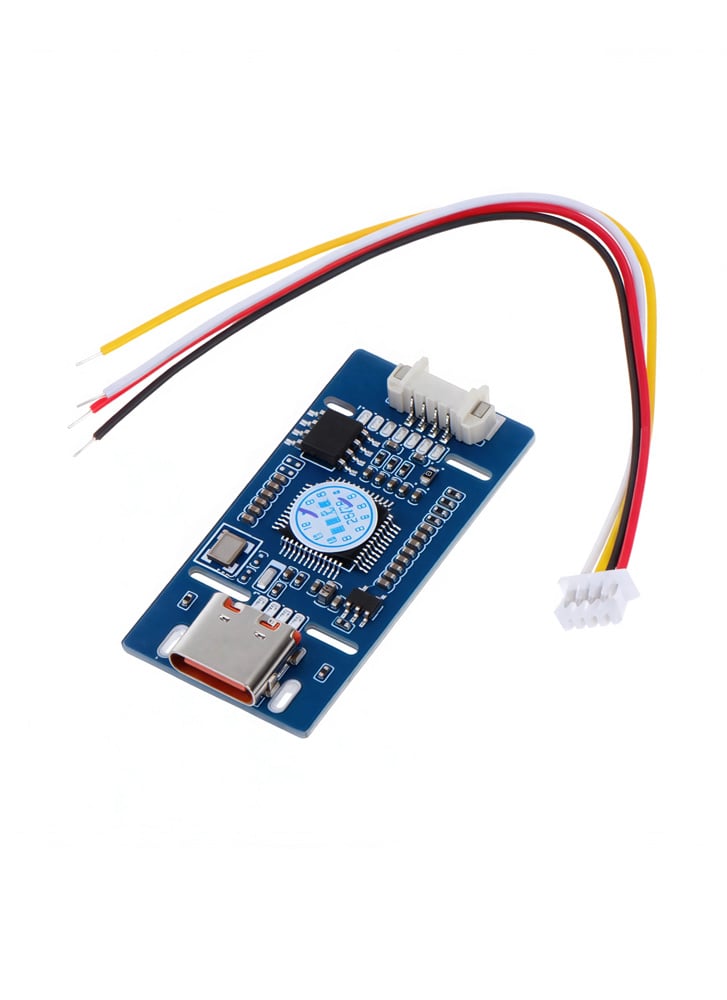

USB-C Analog FPV Video Capture Adapter

£17.50

The USB-C Analog FPV Video Capture Adapter puts analog FPV video onto compatible smartphones, tablets and computers, for viewing or recording. Feed it the video output from an analog FPV receiver, ground station, DVR or camera, plug it into a USB-C device, and it appears as a standard webcam source.

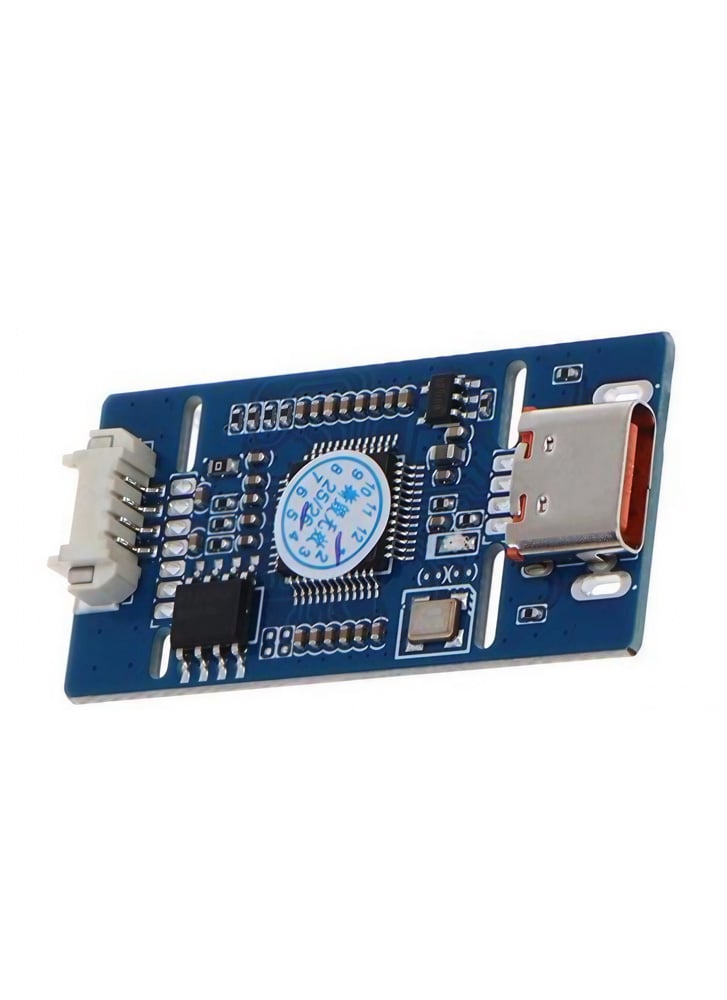

Made for spectators, demonstrations, recording and live streaming, the adapter turns analogue video and audio into a digital form a wide range of applications can use. It is compact and light at 3g, and the PCB snaps along a built-in breakaway section when an even smaller installation is wanted.

Note that the conversion adds latency, which makes this adapter unsuitable for actually flying an FPV aircraft. It is for viewing and recording only.

Features

• Converts analog FPV video and audio signals to USB-C webcam output
• Compatible with many smartphones, tablets, and computers
• Suitable for FPV receivers, analog cameras, DVRs, and ground stations
• Appears as a standard webcam for recording and streaming applications
• Compact and lightweight design
• Breakaway PCB section for reduced size
• Video and audio input support

Specifications

• Connector: USB-C
• Input Signals: Composite Video (CVBS) and Audio

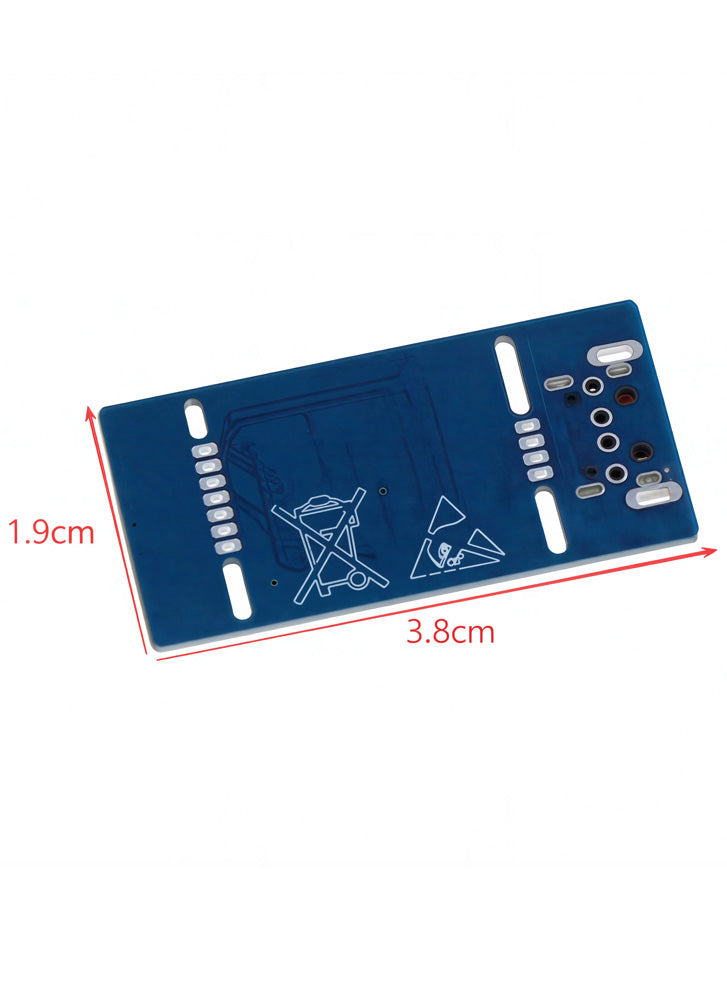

• Size: 39 x 19.5mm
• Size (after breakaway): 21 x 19.5mm
• Weight: 3g
• Red: 5V Output
• Black: Ground (GND)
• Yellow: Video Input
• White: Audio Input

In the box

• 1 x USB-C Analog FPV Video Capture Adapter
• 1 x Interconnect Cable
