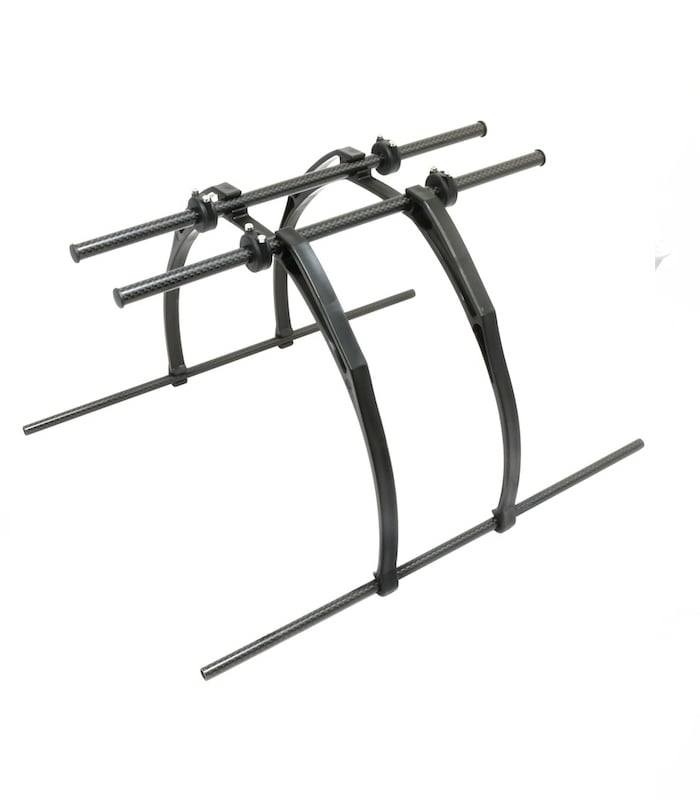

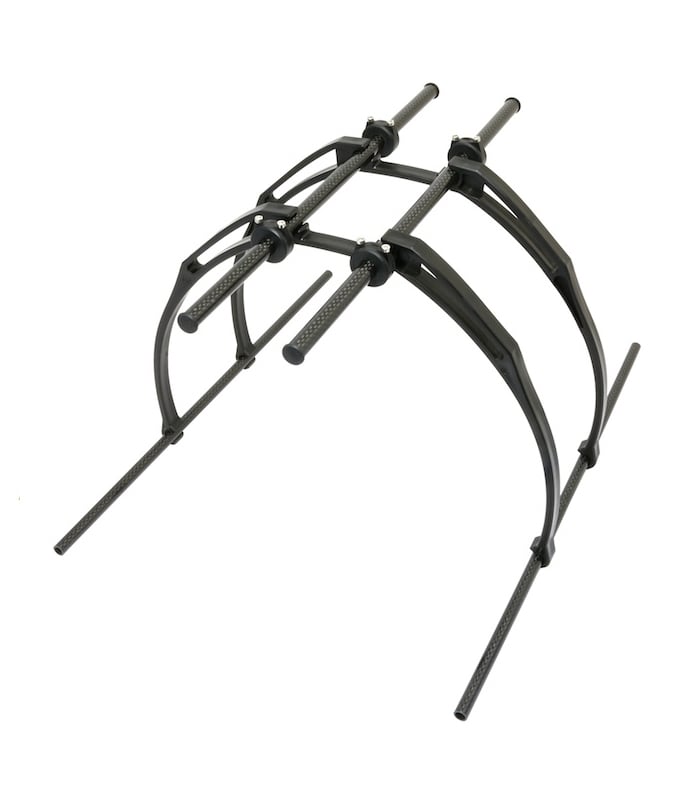

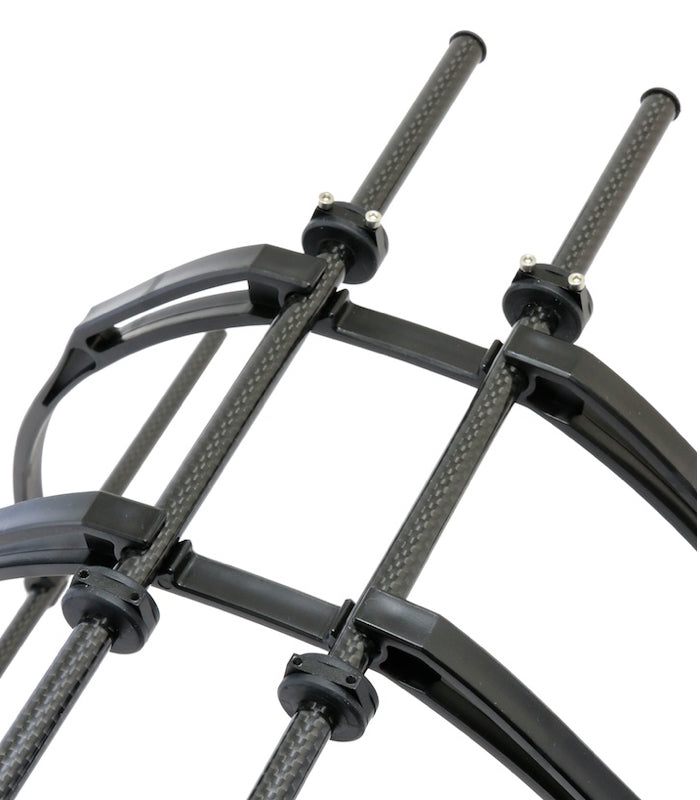

Universal Multirotor Crab Landing Gear Kit – Carbon Fibre
£29.00
‘Crab’ style landing gears are widely used in quadcopter and hexacopter kits to form a lightweight and effective undercarriage. They provide plenty of ground clearance ~200m and a wide field of view should you mount a camera below. The design allows for mounting to almost any type of frame with the included tube clamps, you can then mount peripherals such as a battery or gimbal to the loading rails using 10mm load hangers (sold separately). The undercarriage features carbon fibre tubes which makes it very light.
Should you need a replacement part, we sell all of the components separately.
Please note tubes should be slide into place and no attempt to clip them into place should be made – doing so may cause it to break.
Specifications
- Mounting rail spacing: 59mm
- Skid spacing: 260mm
- Fixing holes: M2.5 – 14mm centres
- Height: 200mm
- Weight: 140g

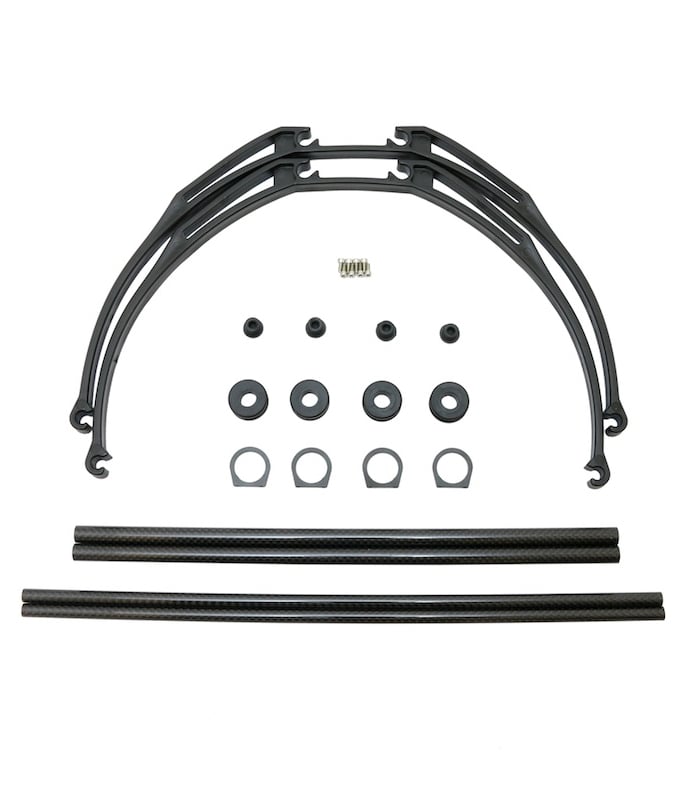

In the box
- 2 x Carbon Fibre Load Pipes 300 x 10 x 0.5mm
- 2 x Carbon Fibre Skid Pipes 350 x 8 x 1mm
- 2 x PVC Leg Frames
- 4 x Tube Plugs
- 4 x 10mm Rubber Dampers
- 4 x Load Pipe Mounts
- 8 x M2.5 x 6mm (Stainless Steel)
