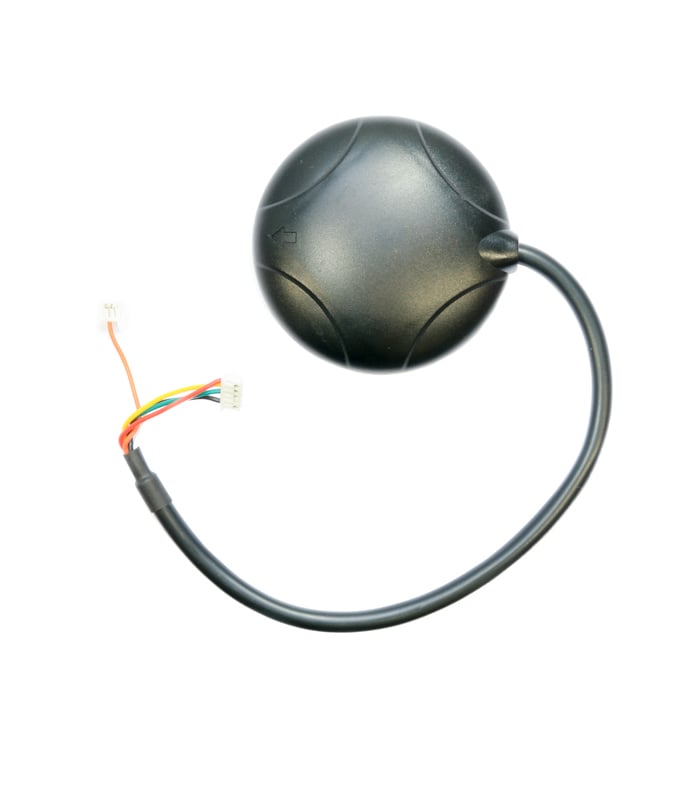

Ublox Neo-6M GPS with HMC5883L Compass for APM
£23.50
This is an updated Neo GPS module that can be used with Ardupilot Mega V2 (APM 2.5, APM 2.6) and other FC’s. This GPS module uses the latest technology to give the best possible position information, allowing for better performance with your Ardupilot or other Multirotor control platform. It also incorporates Honywell’s latest high precision 3-axis digital magnetometer (HMC5883L), which provides a convenient method of mounting the compass away from sources of interference that may be present in the vicinity of your multirotor’s flight controller.

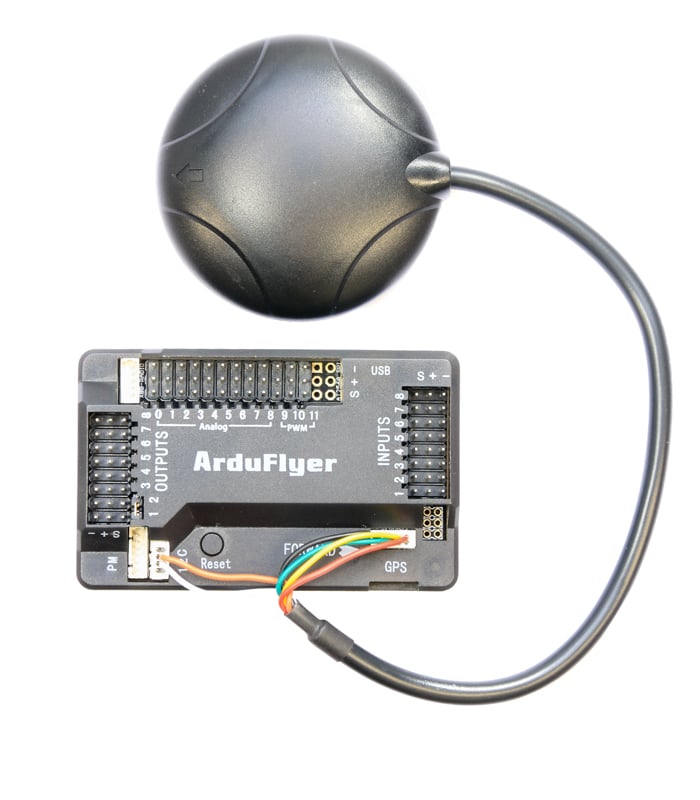

The GPS comes pre-configured for use with the APM flight controller.
Features
- Standalone GPS receiver
- U-blox NEO-6M GPS module
- HMC5883L Magnetometer
- Under 1 second time-to-first-fix for hot and aided starts
- SuperSense ® Indoor GPS: -162 dBm tracking sensitivity
- Anti-jamming technology
- Support SBAS (WAAS, EGNOS, MSAS, GAGAN)
- u-blox 6 50 channel positioning engine with over 2 million effective correlators
- Timepulse
- 5Hz position update rate
- Operating temperature range: -40 TO 85°C
- UART TTL socket
- EEprom to store settings
- 3V rechargeable battery for Backup
- RoHS compliant
Specifications
- Ublox Neo-6M GPS module
- HMC5883L Magnetometer
- Dimension: 50mm Dia
- Height: 13mm
- Weight: 29g

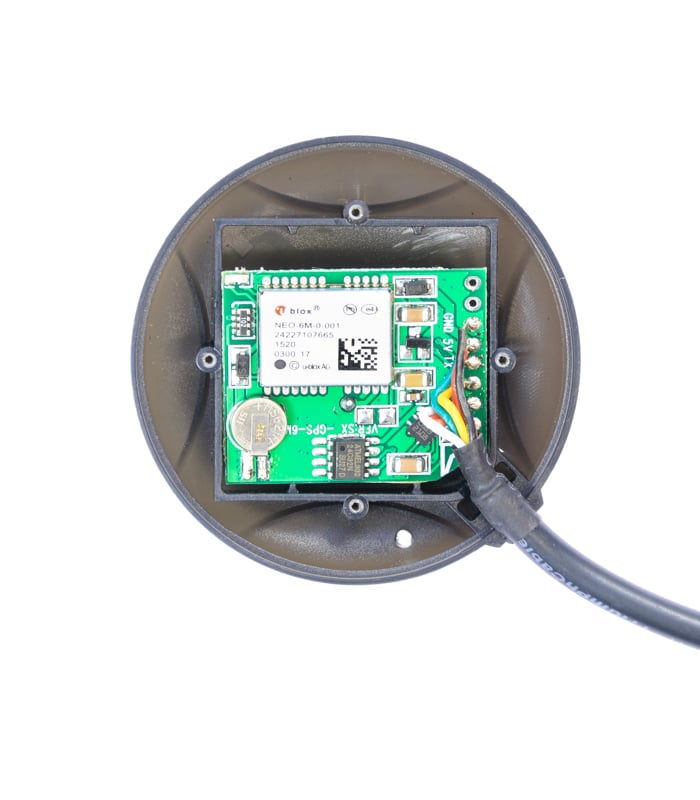

- U-blox NEO-6M GPS module with APM connections
