Triple Feed 5.8GHz 9.4dBi LHCP RHCP Circularly Polarised Patch
£14.90

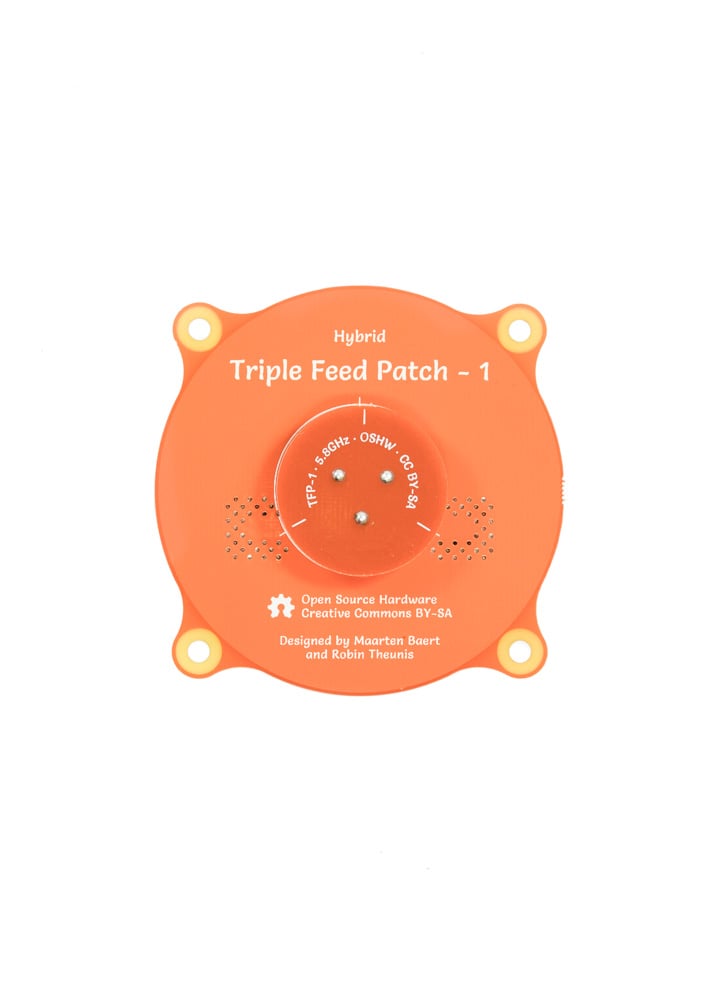

The Triple Feed Patch antenna is a directional circularly polarised antenna designed by Maarten Baert and his co-worker Robin Theunis. Maarten has form when it comes to creating killer antennas; he came up with the fantastic Pagoda antenna.

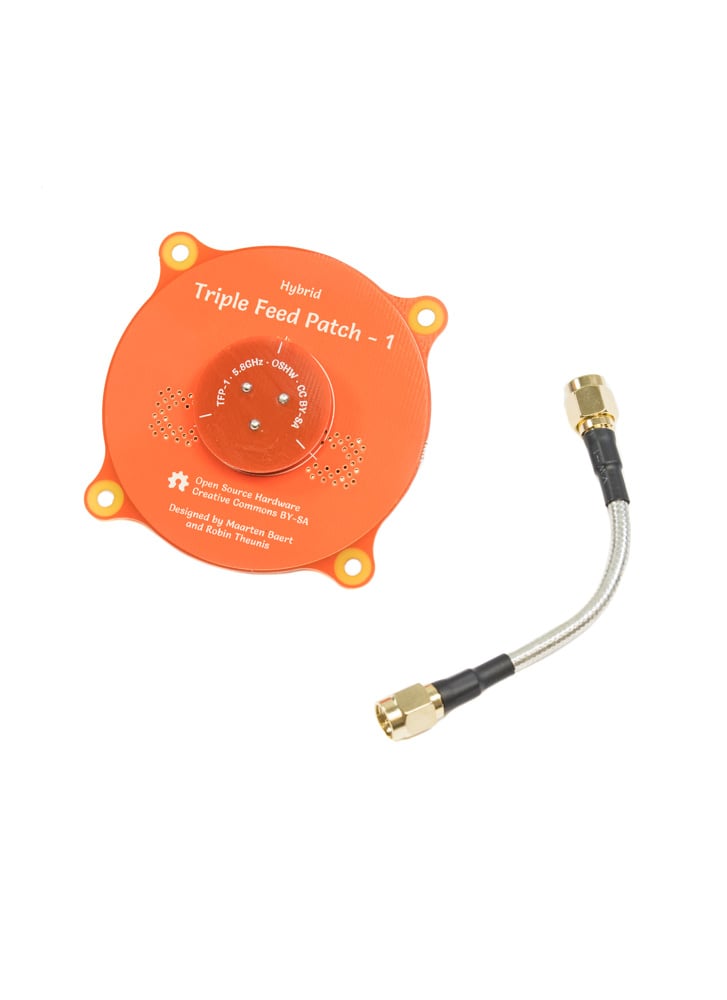

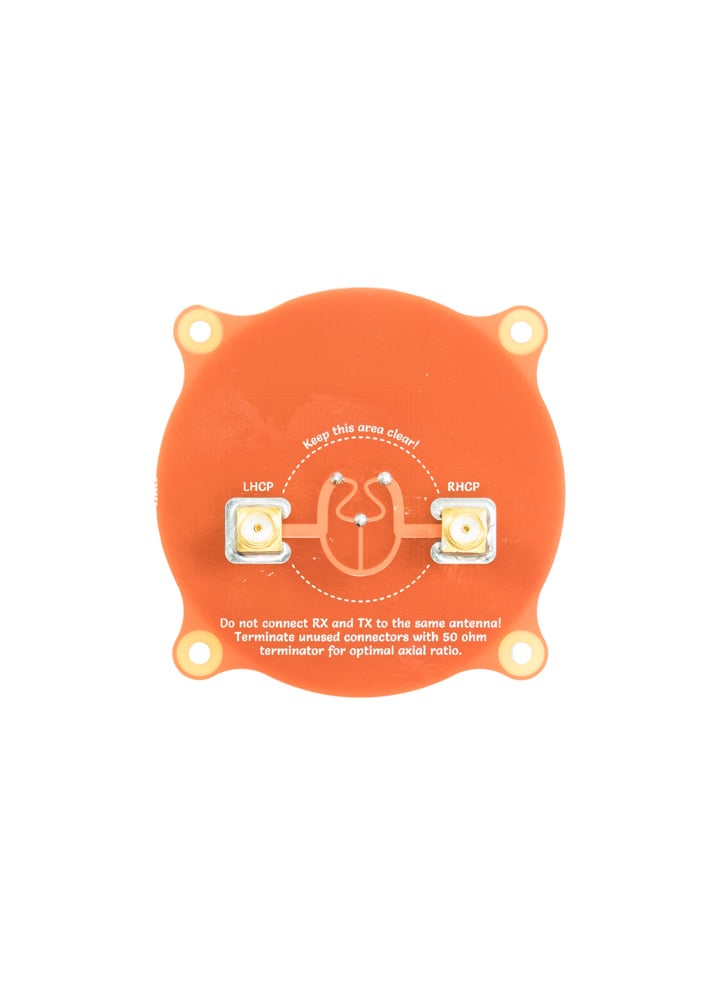

The Triple Feed Patch antenna is unique in that it’s the first of its type, which lets you switch between Left-Hand Circularly Polarised (LHCP) and Right-Hand Circularly Polarised (RHCP). It also boasts a much better axial ratio than most other FR4 based patch antennas. At nearly 1.0 (<1.3) its truer axial ratio means less multipathing and therefore a clearer picture. Finally the antenna has 9.4dBi of gain, which translates into great range! Included with the patch is a 8cm semi rigid SMA cable.
Good radiation efficiency at 5.8 GHz.
Good axial ratio, not just directly perpendicular to the patch but also off-center.
Supports both LHCP and RHCP
For the best RF performance we recommend using a 50ohm dummy load for the unused SMA connector.
Radiation pattern
Credit: Manufactured under License CC BY-SA 4.0 from Maarten Baert
Specifications
- Center frequency: 5.8 GHz
- Bandwidth: 660 MHz (5.47 – 6.13 GHz)
- Matching: S11 < -20 dB, VSWR < 1.22 (at center frequency)
- Axial ratio: < 1.3
- Antenna gain: 9.4 dBi
- Half power beam width: 55° (horizontal and vertical)
- Radiation efficiency: 83.5%
