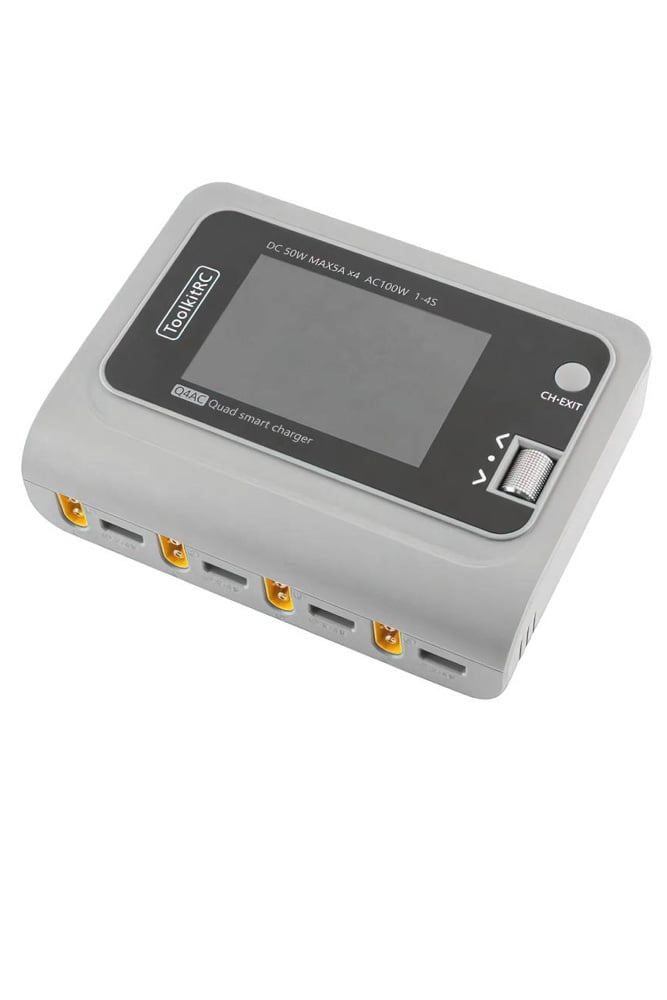

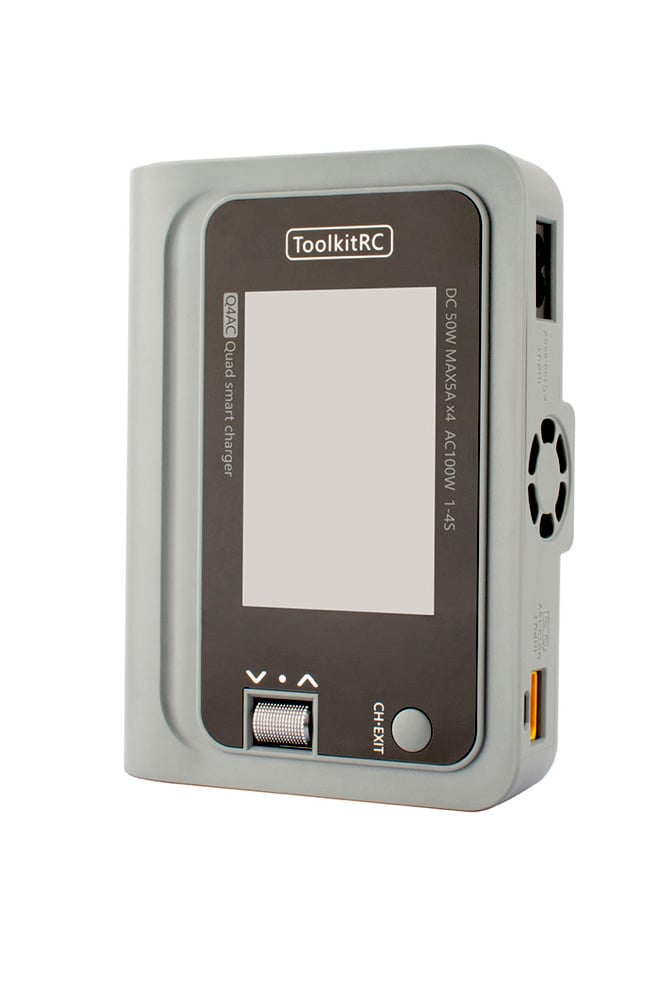

ToolkitRC Q4AC 4x50W AC/DC 1-4S Battery Charger (XT60)
£74.95
The ToolkitRC Q4AC is an updated version of the M4Q with a faster processor, upgraded charging power and a new casing.
Charge up to four batteries at the same time with the ToolkitRC Q4AC
The ToolKitRC Q4AC is a AC/DC smart charger that is all about great flexibility. This smart charger includes four ports, a built-in 100w AC power supply, 200w DC input for more power and four channel-independent operations. Furthermore, it has a lovely colour LCD screen, which is easy to view and displays everything you need to see at first glance! Its 32Bit ARM processor provides a precise balance accuracy of <0.005V. It can charge LiPos, LiHv, LiFe, Lion and NiMh battery types.

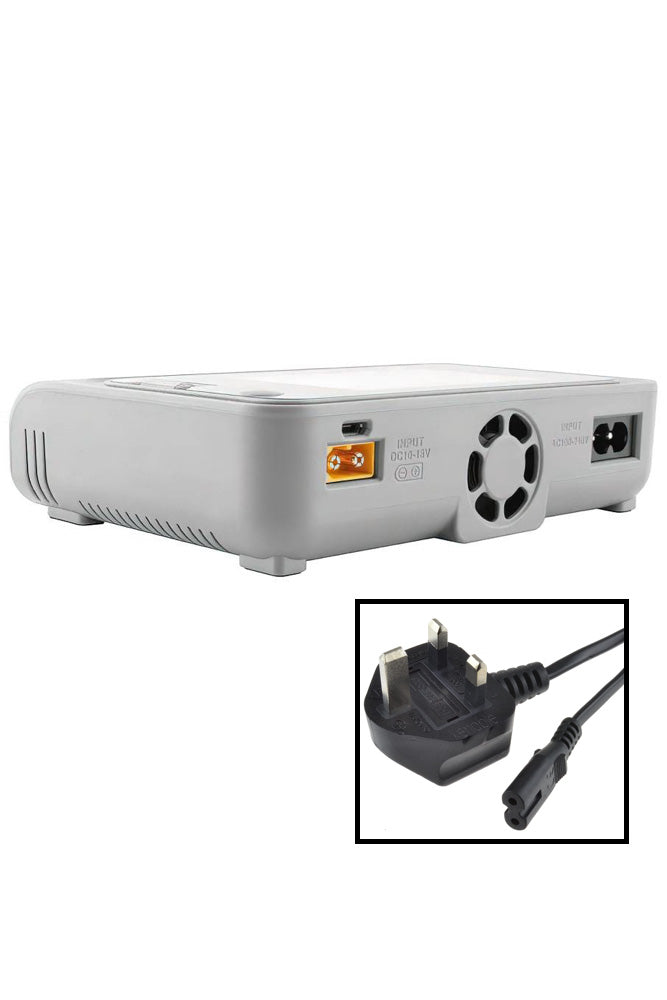

Please note ToolKitRC supply this charger with a US power plug as standard, but we are including a UK plug, so no adapter will be required.
Features
- AC/DC Charging – Power Supply Modes: AC100-240Vmax 100W; DC 10-18V max 200W
- 4 Output Channels
- Max 5A @MAX50W Charging Current
- 3.5″ IPS 480x320p LCD Screen
- 240mA Balancing Current
- IPS Wide-Angle Display
- 32-bit ARM Processor
- Update Firmware by Connecting to PC
Specifications
- Internal resistance: 1-100mR @1-4S
- Type of Battery: LiPo LiHV LiFe Lion@1-4S NiMh @1-10S Pb @1-8S
- LiPo LiHV LiFe Lion@1-4S
- NiMh @1-10S Pb @1-8S
- Voltage Range: 0.2V-5.0V @1-4S
- Input Voltage: AC100-240V@MAX1.5A DC10-18V@MAX20A
- AC100-240V@MAX1.5A
- DC10-18V@MAX20A
- Balance Current: 240mA @2-4S
- LCD: IPS 3.5inch 480x320pixel
- Dimensions: 150x112x36.5mm
- MicroUSB: Upgrade@USB2.0
- Balance Accuracy: < 0.005V
- Charge Power: 0.1-5A@50W*4 DC 0.1-5A@50W*2 AC
- 0.1-5A@50W*4 DC
- 0.1-5A@50W*2 AC
- Weight: 460g
In the box
- 1x ToolkitRC Q4AC Quad Channel Charger
- 1x Screen Protector
- 1x USB-C Cable
- 1x AC Cable
