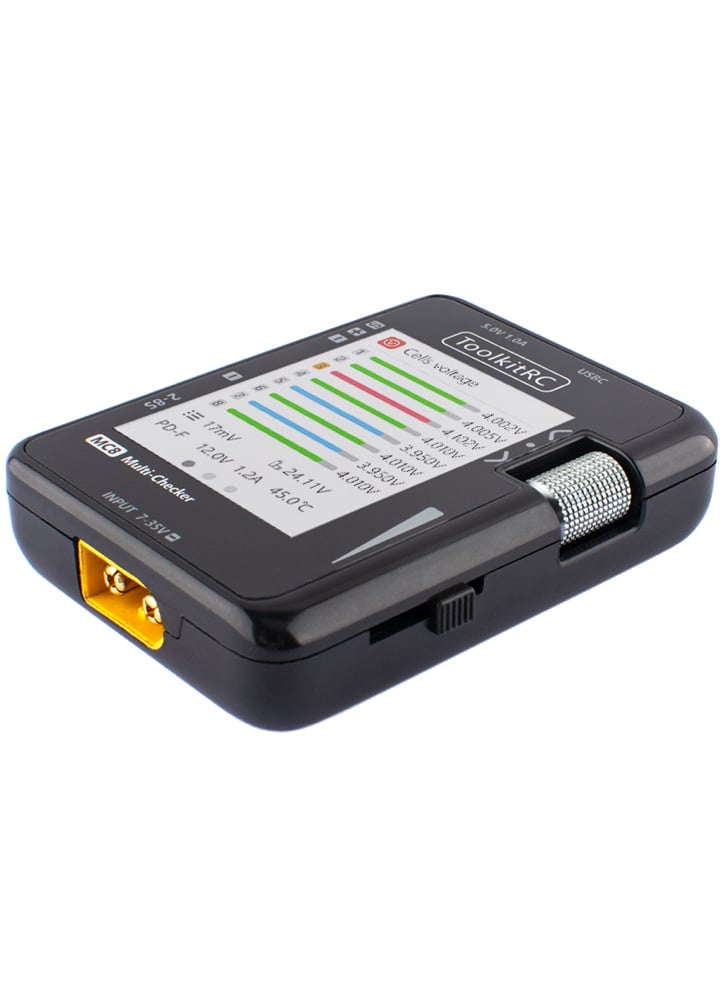

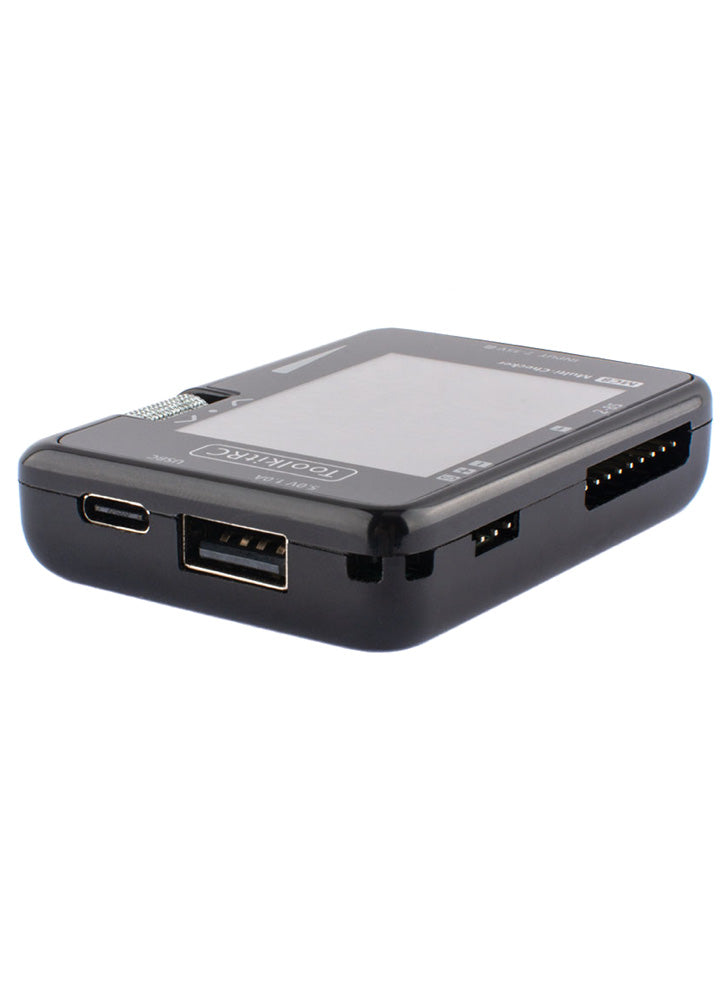

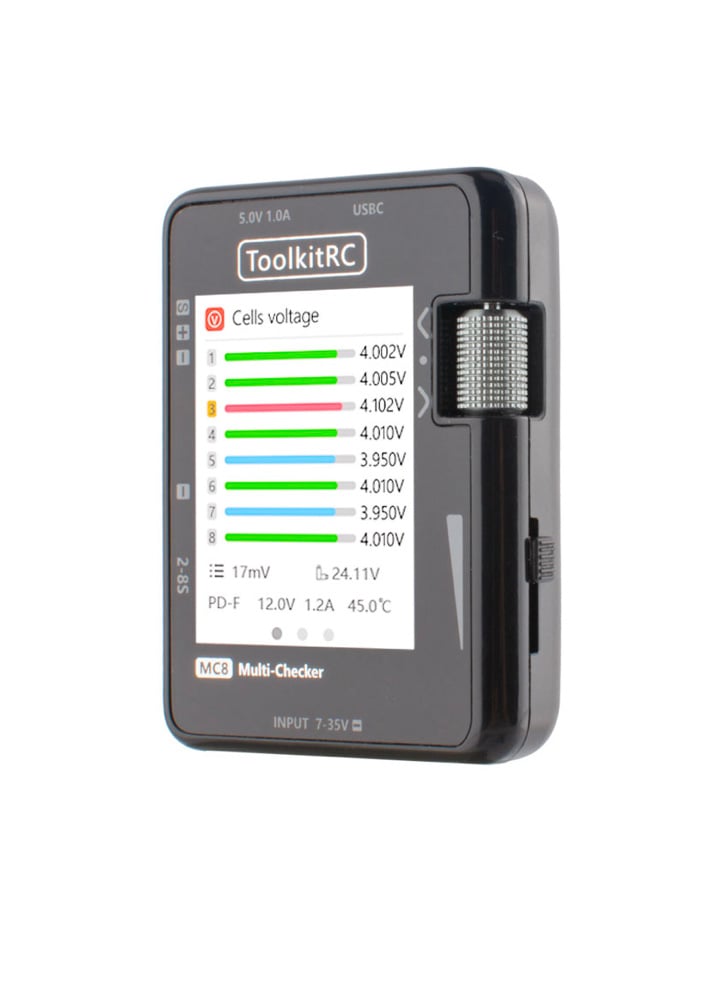

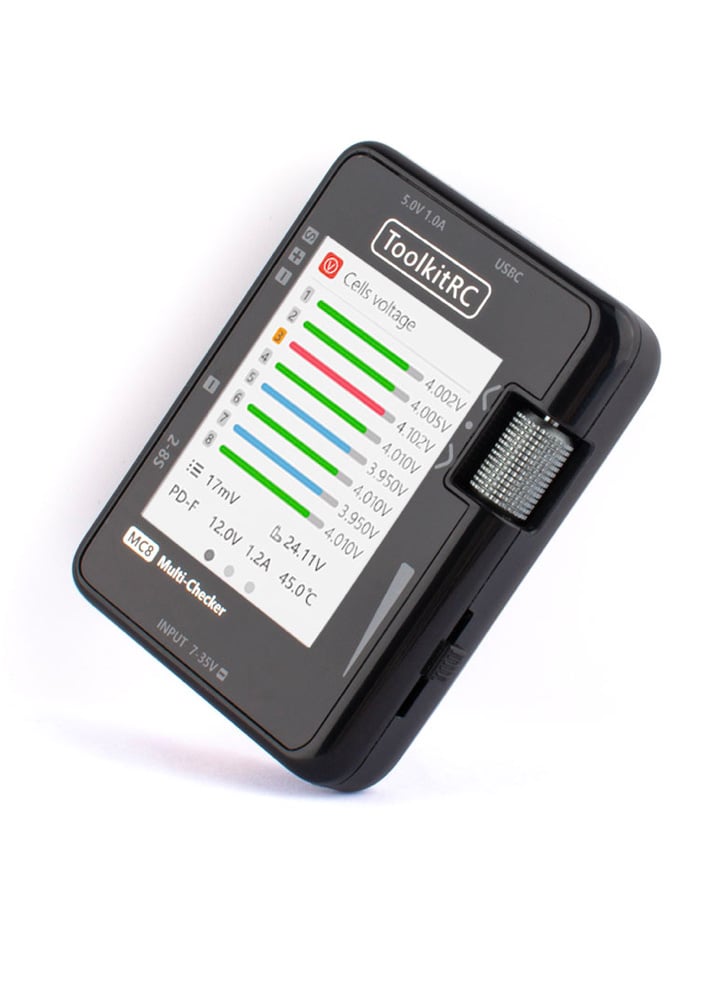

ToolkitRC MC8 Multi-Functional 2-8S Battery Checker

£29.90

The MC8 from Toolkit is a feature packed multi purpose cell checker with a big, bright, easy to read display. Not only can you check cell voltages and balance your battery packs, you can also monitor the PWM/PPM/SBUS output of radio receivers, generate PWM output to test servos and ESCS, and use your LiPos for USB device charging (up to 20W)!

Features

• Large colour screen
• Battery status display – cell voltage checker, supports 1S to 8S batteries
• Receiver signal readout: PWM, PPM & SBUS gives you the value of each channel
• PWM, PPM, SBUS signal generator output for driving servos, ESCs
• High precision LiPo battery cell balancer 0.005V / 60mA
• USB-C 20W fast charging for phones & tablets etc (supported protocols PD3.0, QC3.0, AFC, SCP, FCP etc)
• USB-A 5V 1A output
• Intuitive control

Specifications

• LCD:  2″ IPS 320×240
• Dimensions: 68x50x15mm
• Weight: 50g
• Main Input port: XT60 7.0-35.0V
• Balance input: 0.5V-5.0V Lixx 2-8S
• Signal port input: <6.0V
• Balance current: MAX 60mA @2-8S
• Balance accuracy: <0.005V @ 4.2V
• USB-A output: 5.0V@1.0A firmware upgrade
• USB-C output: 5.0V-12.0V @MAX 20W
• USB-C protocol: PD3.0 QC3.0 AFC SCP FCP
• PWM: 880-2200us @20-400Hz
• PPM: 880-2200us*8CH @20-50Hz
• SBUS: 880-2200us*16CH @20-100Hz
• PWM: 1000-2000us @20-1000Hz
• PPM: 880-2200us*8CH @20-50Hz
• SBUS: 880-2200us*16CH @20-100Hz

In the box

• 1x Toolkit RC MC8 Multi-Functional 2-8S Battery Checker
