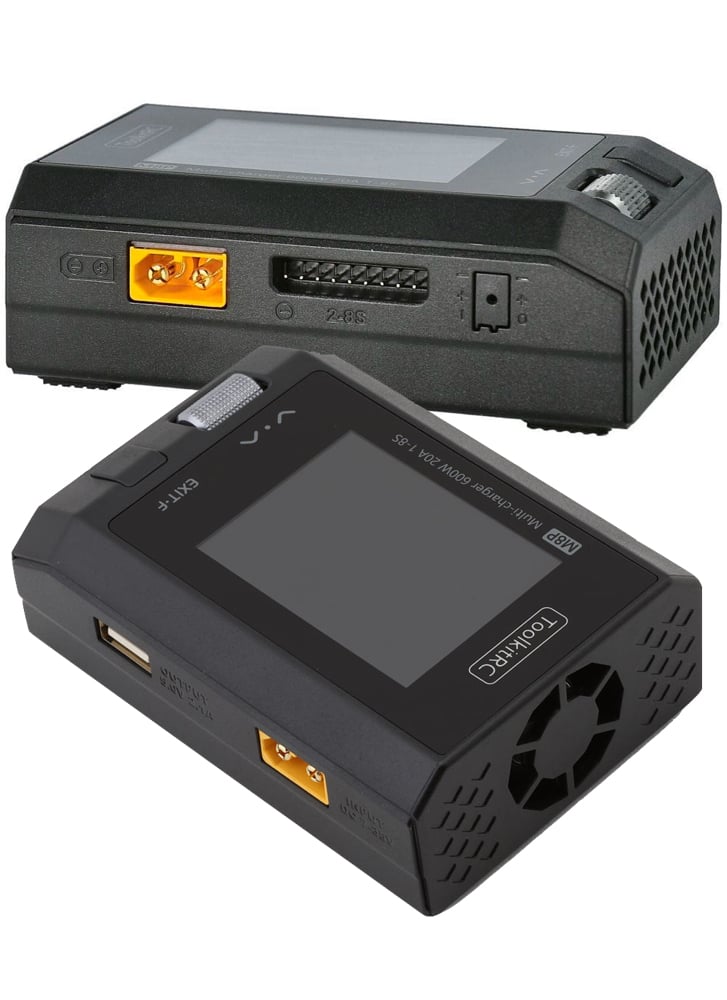

ToolkitRC M8P 600W 25A Charger, Cell Checker, Servo Tester, Signal Tester

£49.90

The M8P is a worthy upgrade over the previous version, the M8S. The M8P adds extra power so you can charge more batteries, even faster. The charger now offers up to 600W of power, the M8S was rated at 400W. The maximum charge rates has also been increased, now offering 25A, the M8S was limited to 18A.

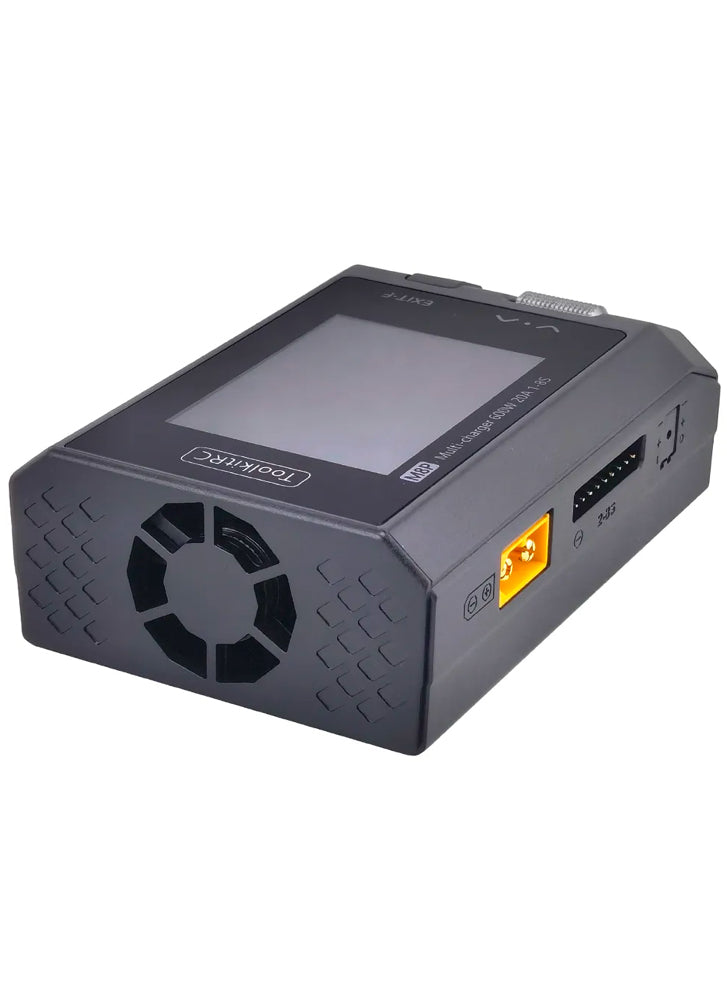

As you can see, this is not just a charger. The M8P has tons of features, even with its small size. It can be used as a servo tester, cell checker, watt meter, PWM/PPM/Sbus input testers and output generators. It can also be used to provide a variable voltage and amperage controlled DC power supply. The charger is DC, so it does require a power supply if using with mains (AC), or you could you a large battery as a power source (the power input connector is XT60).

Features

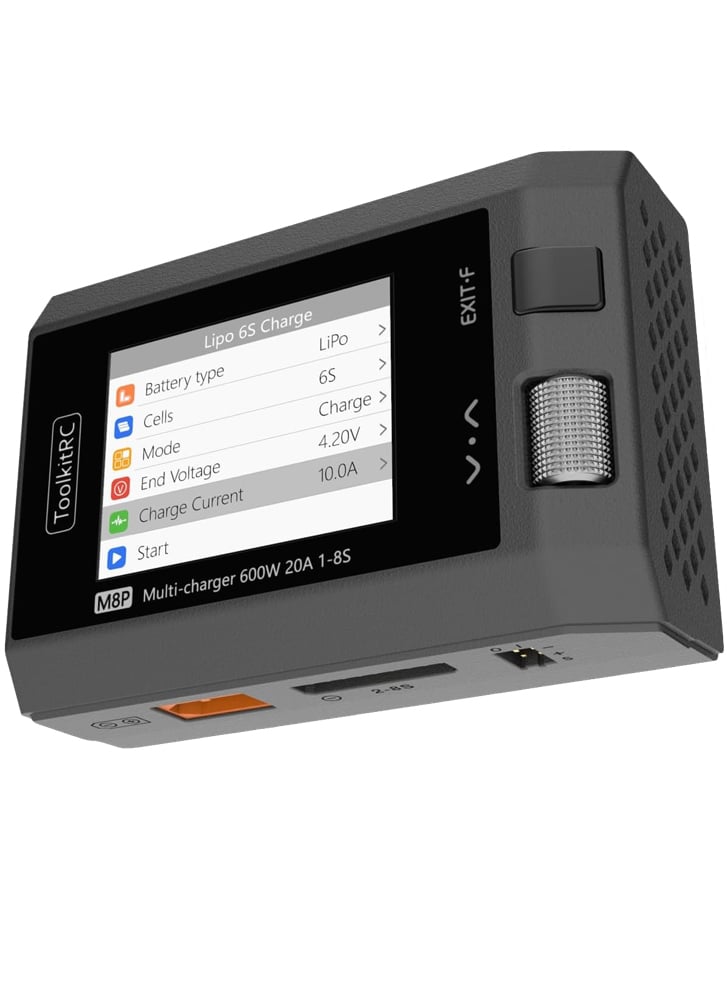

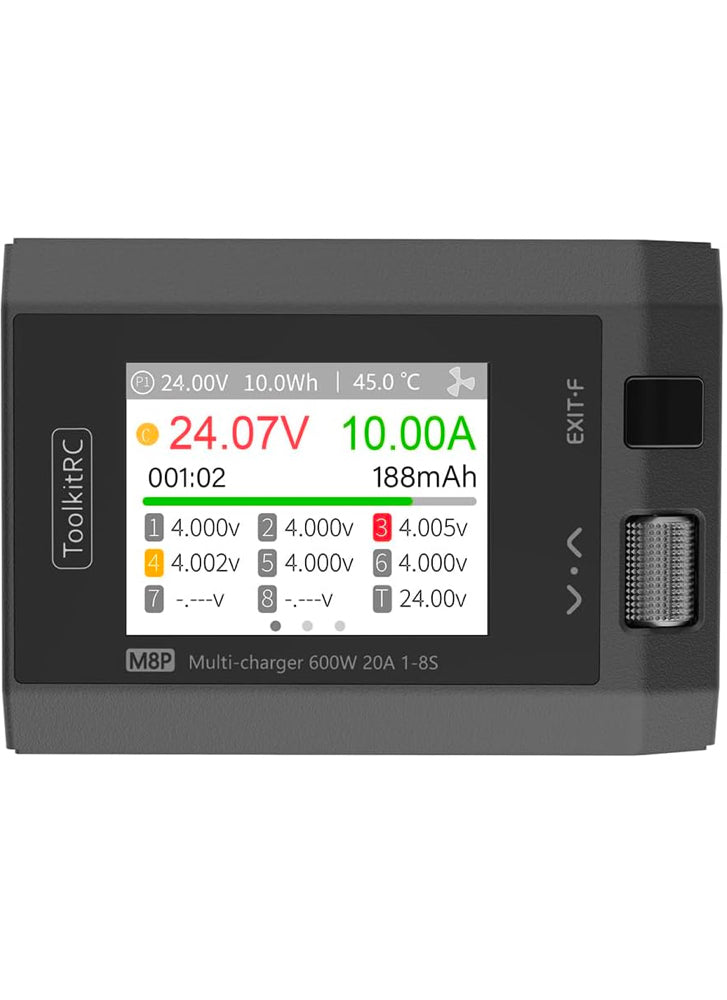

• 2.4″ Colour Screen
• Battery Charger
• Cell Checker
• Servo Tester
• PWM PPM SBUS Input tester / output generator
• Watt Meter
• Variable DC Power supply

Specifications

• Input 7-35V: @MAX25A
• Battery Type: LiPo LiHV LiFe Lion LTO @ 1-8S NiMh @1-20S Pb @1-10S
• Charging Power: 0.1-20A@600W
• Discharging Power: 0.1-20A @ 600W Recycle External
• Discharging Power: 0.1-3A @ 20W Normal mode
• Balance current: 1000mA@4.2V
• USB: 5.0V @ 2.1A upgrade
• PWM: 880us-2200us @20-400Hz
• PPM: 880us-2200us*8Ch @20-50hz
• SBUS: 880us-2200us*16ch @20-100Hz
• Voltage: 1.0V-5.0V @1-8S
• IR: 1-99mR @1-8S
• ESC: 1-20A@1-35V MAX600W
• PWM: 500us-2500us @20-1000Hz
• PPM: 880us-2200us*8ch @50hz
• SBUS: 880us-2200us*16ch @74Hz
• Power: 1-20A @ 1-35V Mode: CC+CV
• LCD Display: 2.4 IPS RGB 320×240 pixel
• Size 99mmx72mmx35mm
• Weight 180g

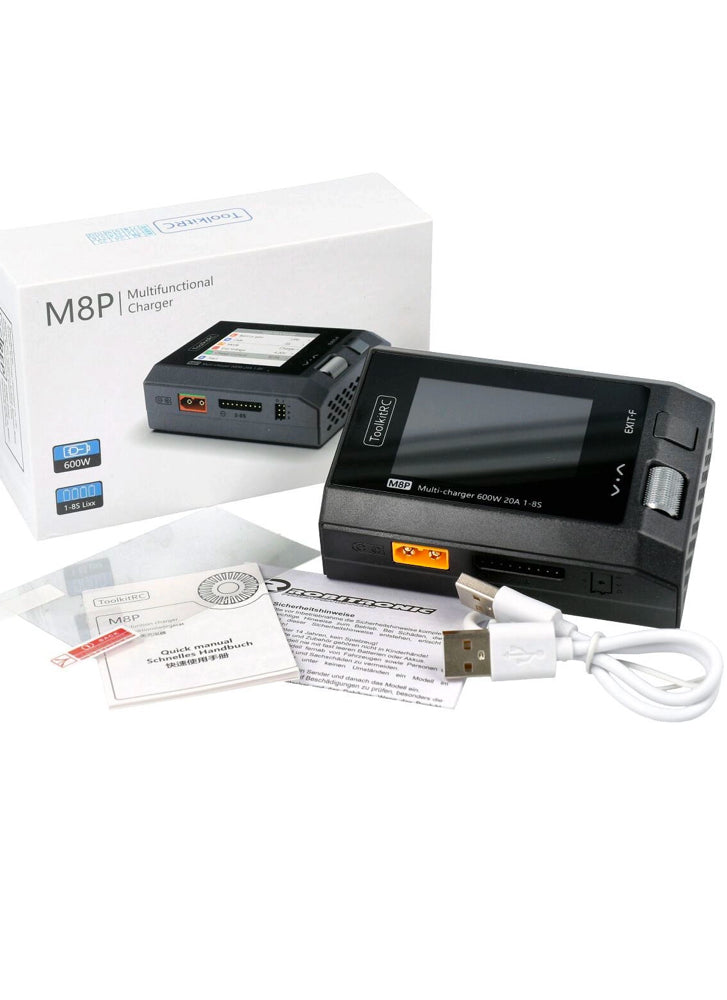

In the box

• 1 x ToolkitRC M8P 600W 25A Charger
