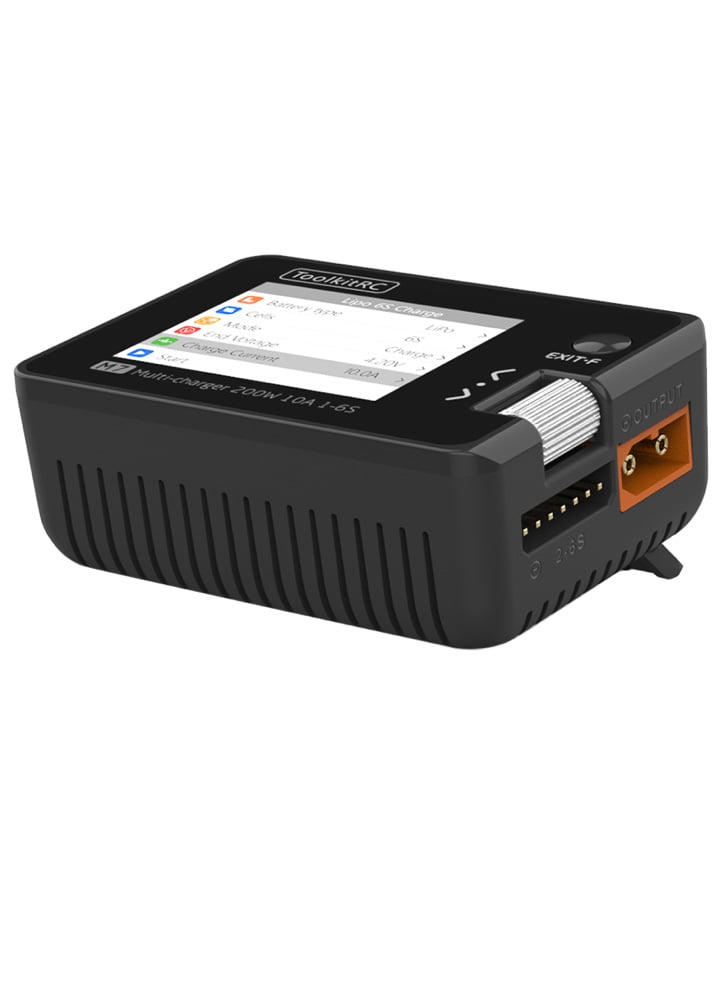

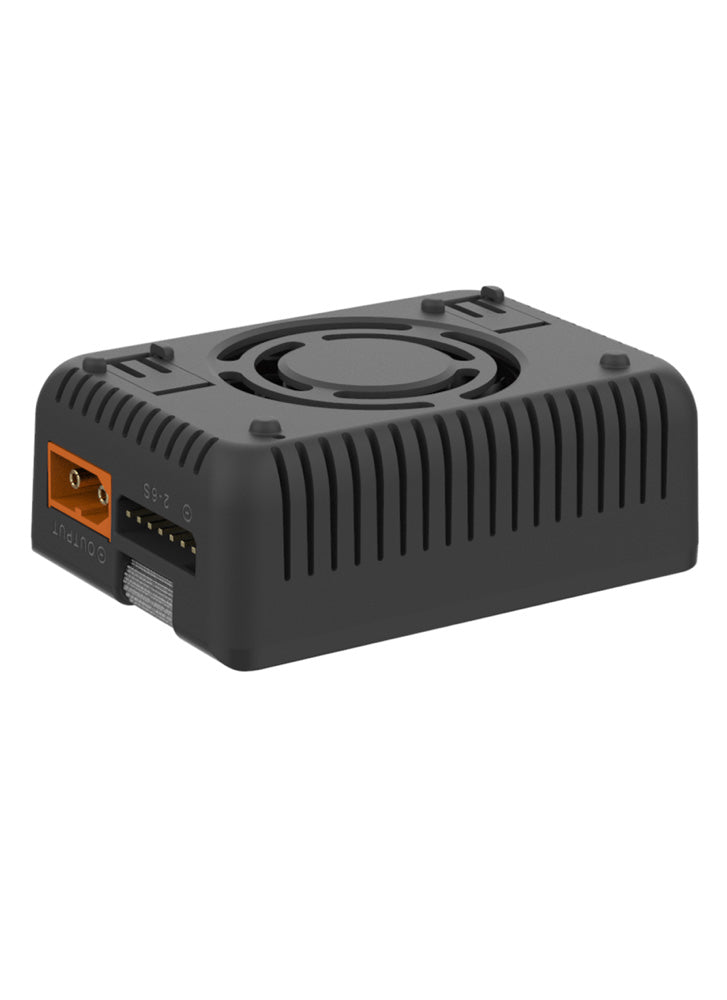

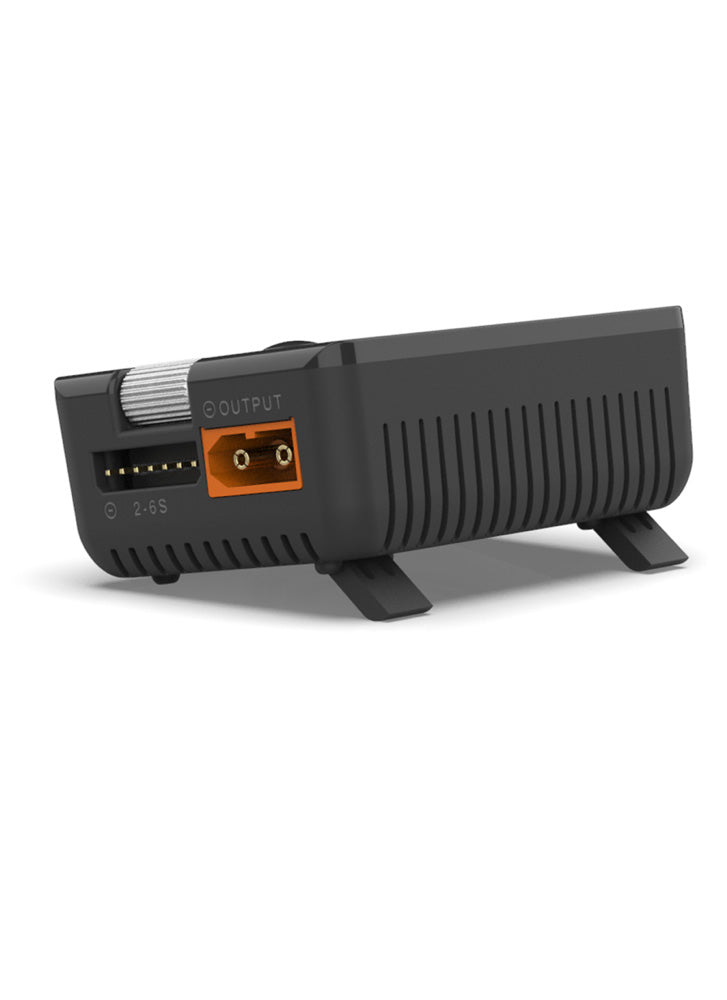

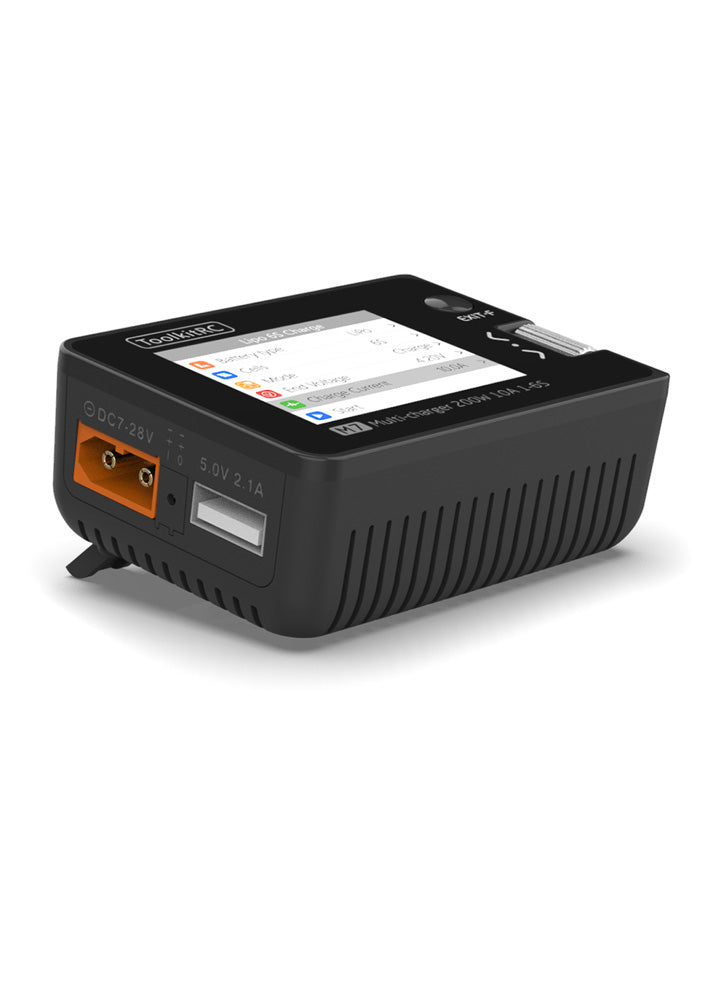

ToolkitRC M7 200W 10A 2-6S DC Multifunctional Charger
£42.90
The ToolkitRC M7 is a 200W multifunctional battery balance charger and the successor to the M6 charger. It boasts 33.3% more power than the M6 and a new IPS wide-angle display, which is still clearly viewable in outdoor sunlight.
The M7s core function is being a battery charger. It is compatible with the main battery types and offers various charging modes, including storage charge. It also has a mode for testing the international resistance measurements of batteries, which is a good overall indicator of the health of a battery. The charger is DC, so it does require a power supply if using with mains (AC), or you could you a large battery as a power source (the power input connector is XT60).
Despite its compact size, this charger packs in a wide array of other features not found in even high-end chargers. Additional functionality includes a battery cell checker, servo/ESC tester, PWM/PPM/S.Bus input testers (for receiver testing) and a variable voltage DC power supply output. The ToolkitRC M7 charger is a must have for anyone who wants a cheap, all-in-one tool that not only charges batteries, but can diagnose equipment, output SBUS, power other devices and more.
Features
- Simplified interface

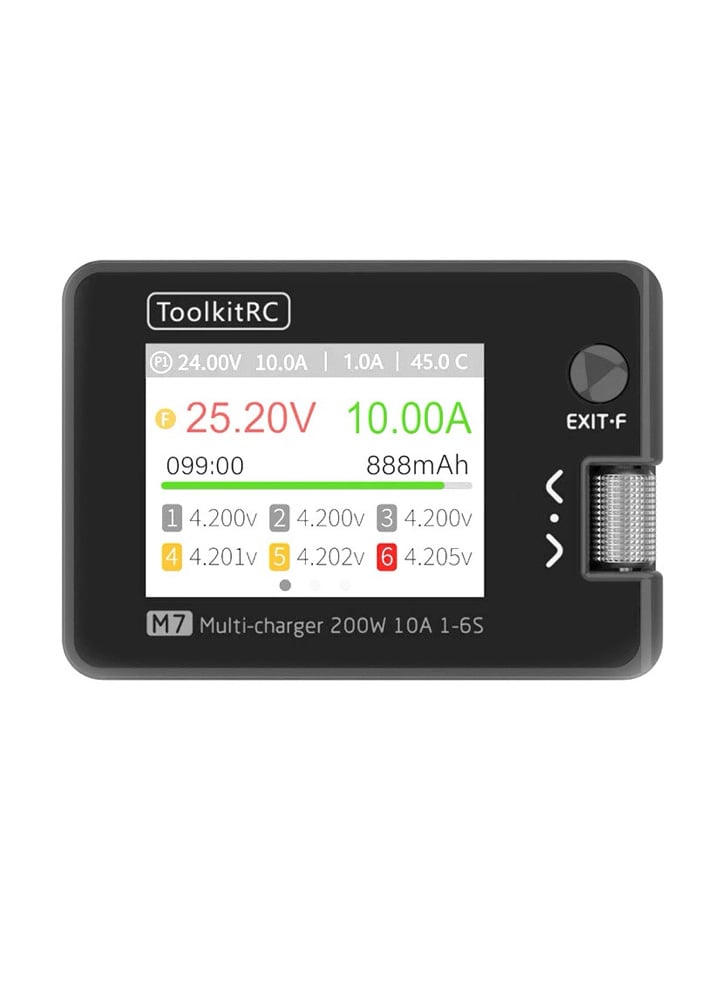

- Clear IPS Wide-angle display and easy to operate scroll wheel
- Multi-chemistry battery charger (LiPo, LiHV, LiFe Lion 1-6S, NiMh 1-16S, PB)
- Charge current: MAX10A @ MAX200W
- Smart battery charging for compatible DJI drones
- Balance charge / storage charge functions
- Cell voltage checker
- Internal resistance measurements
- PWM, PPM & SBUS signal tester
- PWM, PPM & SBUS signal generator
- ESC tester
- Variable DC power supply (1-28V constant voltage, 1-10A constant current)
- USB 2.1A @5.0V output for recharging mobile devices
Specifications
- LCD: IPS 2.0inch LCD 320×240 Pixel
- Product size: 73x51x27 mm
- Weight: 90g
- Discharge power: 200W @MAX 10A Recycle mode / 10W@3A Normal mode
- Type of battery: Lipo LiHV LiFe Lion@1-6S / NiMh @1-16S Pb @1-10S
- Input voltage 7.0-28.0V @MAX 12A
- Charger power: 200W @MAX 10A
- Balance current400mA @2-6S
- USB: 2.1A @5.0V or Upgrade
- Power supply: 1.0-28.0V @1.0-10A mode:CC+CV
- SBUS: 880-2200us*16CH @20-100Hz
- PPM: 880-2200us*8CH @20-50Hz
- PWM: 500-2500us @20-1000Hz
- OverCurrent Cutoff time: <5ms
- SBUS: 880-2200us*16CH @20-100Hz
- Internal resistance: 1-99mR @1-6S
- PPM: 880-2200us*8CH @20-50Hz
- ESC: 200W@10A PWM Output
- PWM: 880-2200us @20-400Hz
- Voltage:1.0-5.0V @1-6S
In the box
- 1x ToolkitRC M7 Charger
- 1x USB Charger Cable
