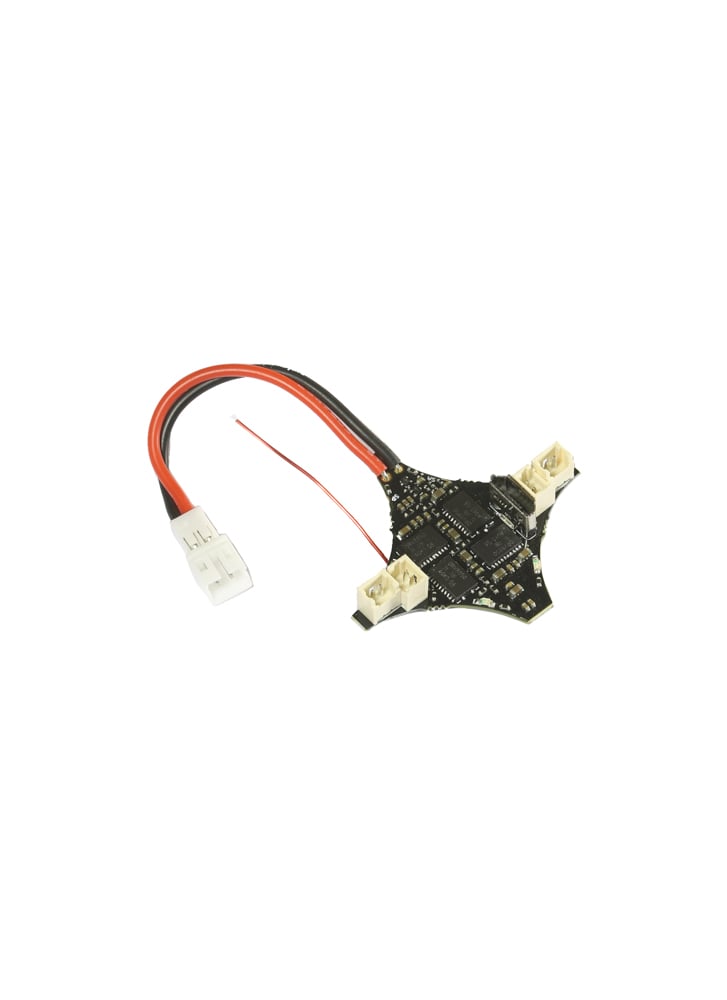

TBS Tiny Whoop Nano Flight Controller

£42.90

A replacement TinyWhoop Nano FC. F3 board, flashed with custom TBS flight controller code.

Specifications

• Input voltage: 1S (2.5 – 4.2V)
• Main MCU: STM32 F3
• RC Receiver: FrSky D16 (XM-style)
• Default FC Software: TBS Harold V0.1
• PWM to SmartAudio 2.0 / 2.1
• Supports turtle mode
• FC size: TW Nano size
• Weight (including power lead): 3.1g
• Dimensions (LxWxH): 36 x 26 x 7 (mm)
• Battery Connector: PowerWhoop (PH2.0)
• Motor connector: Molex picoblade 1.25mm (2 pin)
