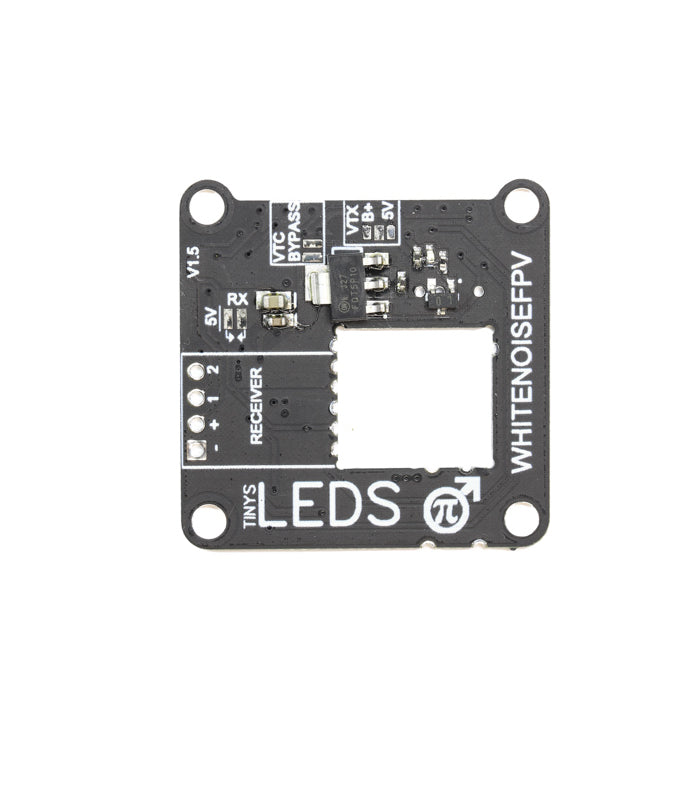

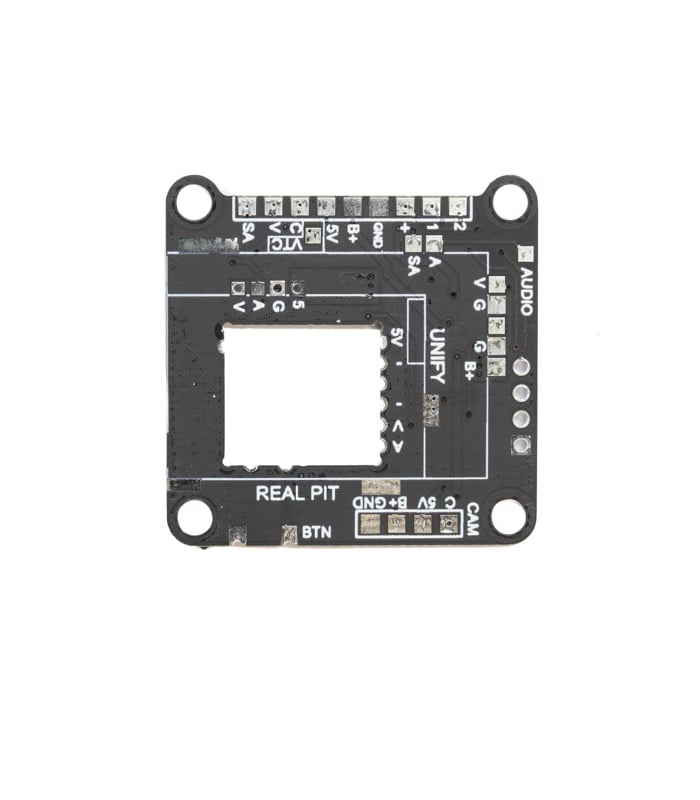

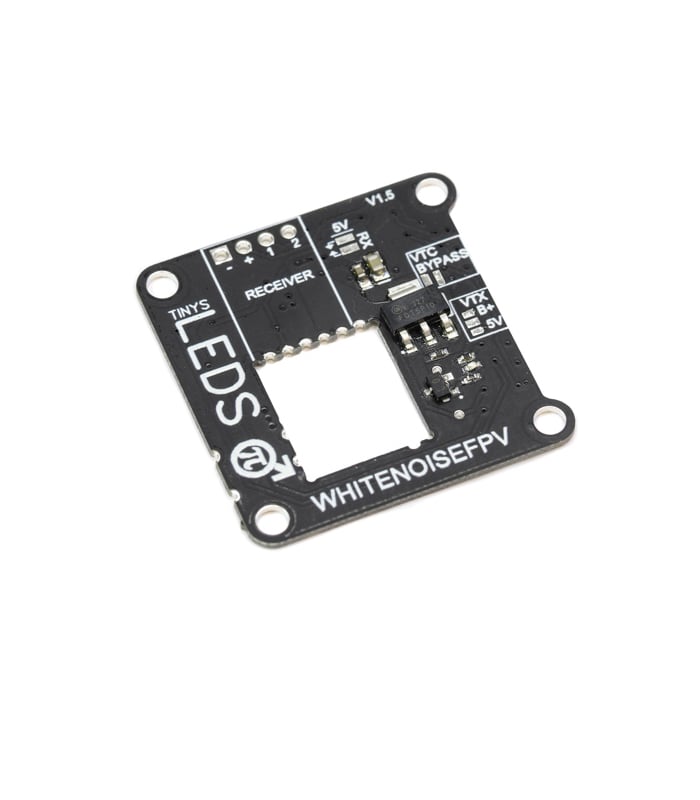

TBS Tiny LEDs WhitenoiseFPV Unify Mounting Board with Realpit
£8.50
Features
- Plug in your VTx at any time with 0 power start-up (Not Available with FlightOne at current time)
- Turn off your VTx on the line to avoid heat buildup
- Fast Team Race Pit stops (Sub second transitions possible)
- Compatible with TBS Unify Nano, 5v Pro, HV v3
- Mounting for Receiver on bottom of board. XM+ or XF easy mount
- Turn off VTx during races to test hover builds without interfering with other pilots in the air.
- Turn off VTx after Crash for clean video for other racers.
- Solo Endurance Races, 3 quads ready on the line. Practice for more than 1 pack without taking off goggles. (Instructions on how to setup on OpenTX / Spektrum Coming soon)
- LED Indicator light on board. (Light On Power On)
- Can be used on any pad on Betaflight Flight Controller.
- BUILT-IN capacitors for 5v camera/vtx power and Lipo battery voltage. (Clean up video lines)
- CURRENTLY SUPPORTED SOFTWARE
- Betaflight (PinIO)
- Butterflight (PinIO)
- FlightOne 1.2.x+ (VTXPRWTOGGLE)
BetaFlight Settings:
In CLI:
Type RESOURCE
Locate UART TX/RX pad resource ID you are using. We wired to RX4 in this demo. RX4 is A01 Note the name of resource and ID.
Next we need to assign the Resource ID to the Custom Mode switch. Using the Resource ID from above. “ A01 ”
resource PINIO 2 [resource=I.E=A04] resource PINIO 3 [resource=I.E=A05] resource PINIO 4 [resource=I.E=A06]
Type SAVE in CLI and then press enter. Your FC will reboot after applying changes.
Now go to Modes and Assign an AUX channel to the USER1 mode. Just like an arm or turtle mode switch. Click SAVE .
Now flip the switch and test. A RED LED will be lit on RealPit if your are providing power.
Specifications
- Operating Voltage: 5V – 28V (HV-6s) 1Amp Switch
- Dimensions: 36 x 36 x 2.5 mm
- Weight: 2.5 Grams w/ Heatshrink
In the box
- 1x TBS Tiny LEDs WhitenoiseFPV Unify Mounting Board with Realpit
