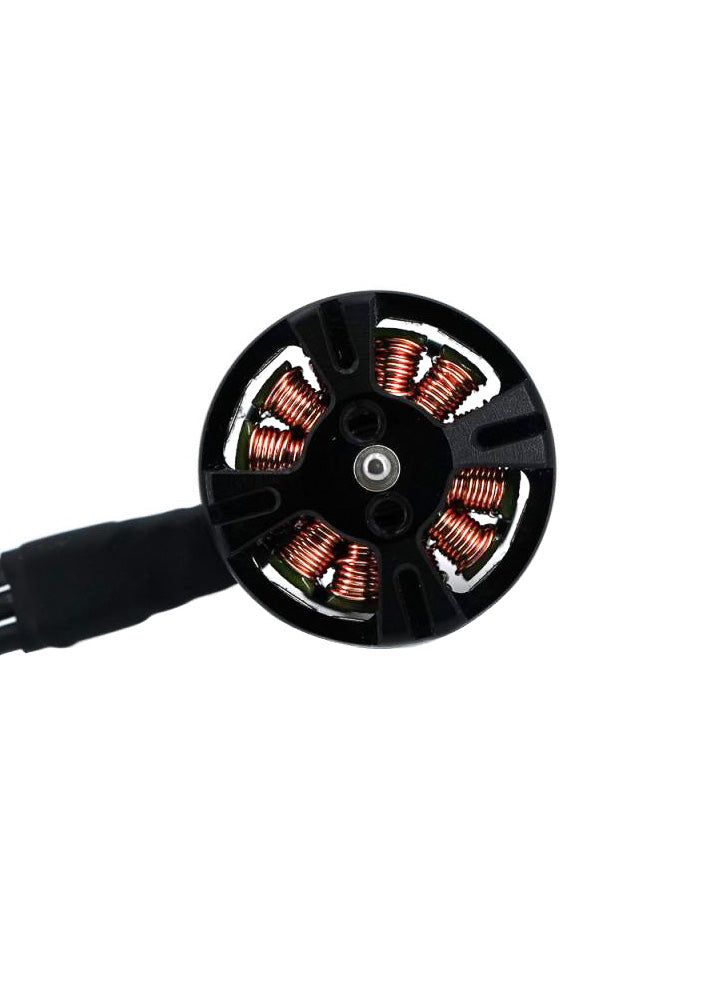

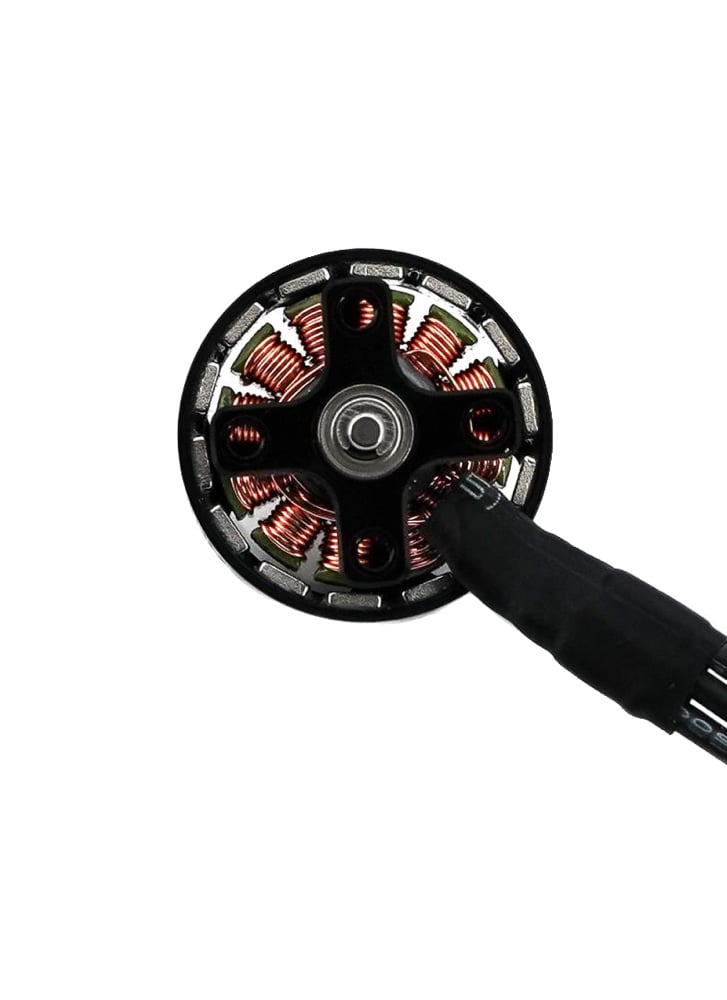

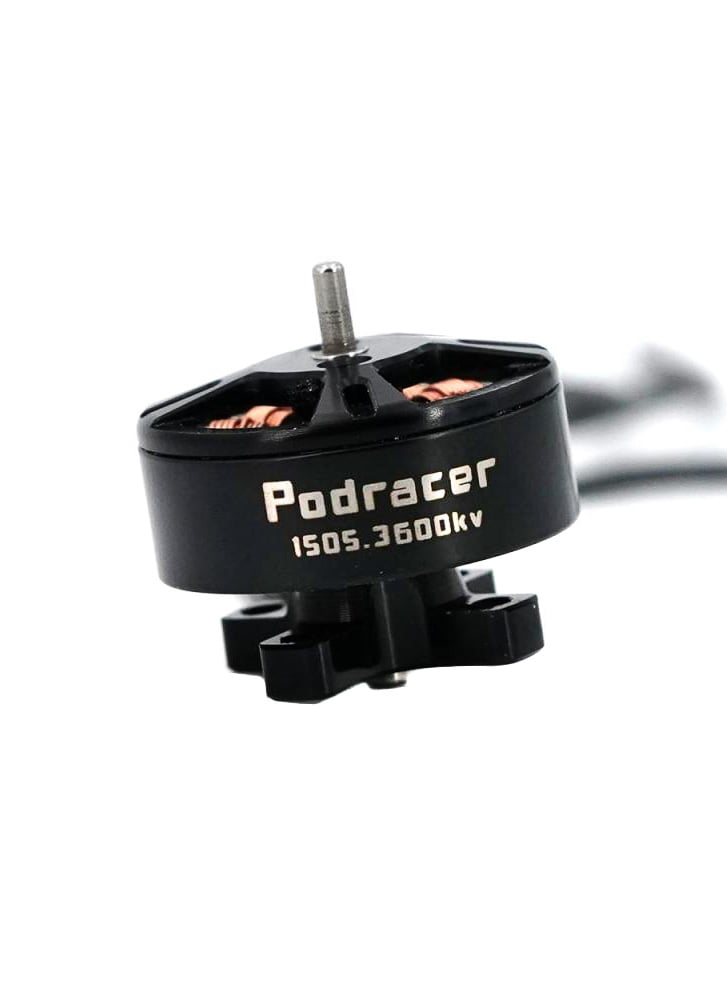

TBS Podracer 1505 3600Kv Motor

£13.90

Designed for the TBS Podracer 4″ & 5″ frame, but can be used for other ultralight 4-5″ racers. Compatible with 2-3S LiPo.

Specifications

• Stator Size (Diameter): φ15mm
• Kv: 3600
• Magnets: N52SH  Curved
• Windings: 15 turn DLRK
• Shaft Length (mm): φ1.5-4mm
• Main Shaft Diameter (mm): 2mm
• Prop Shade Diameter (mm): 1.5mm
• Shaft material: steel
• Bearing: 4x2x2.5
• Weight (With Wires)(g): 11g
• Cells (Lipo): 2-3S
• Max Current (A): 12A
• Max Burst Current (A): 15A
• Internal Resistance (Rm): 0.20Ω
• Wire Spec (AWG): AWG 24#
• Base Mounting Pattern: 12x12mm
• Base Mounting Thread: M2 Thread
• Motor Overall Dimensions: φ19mmx14mm
