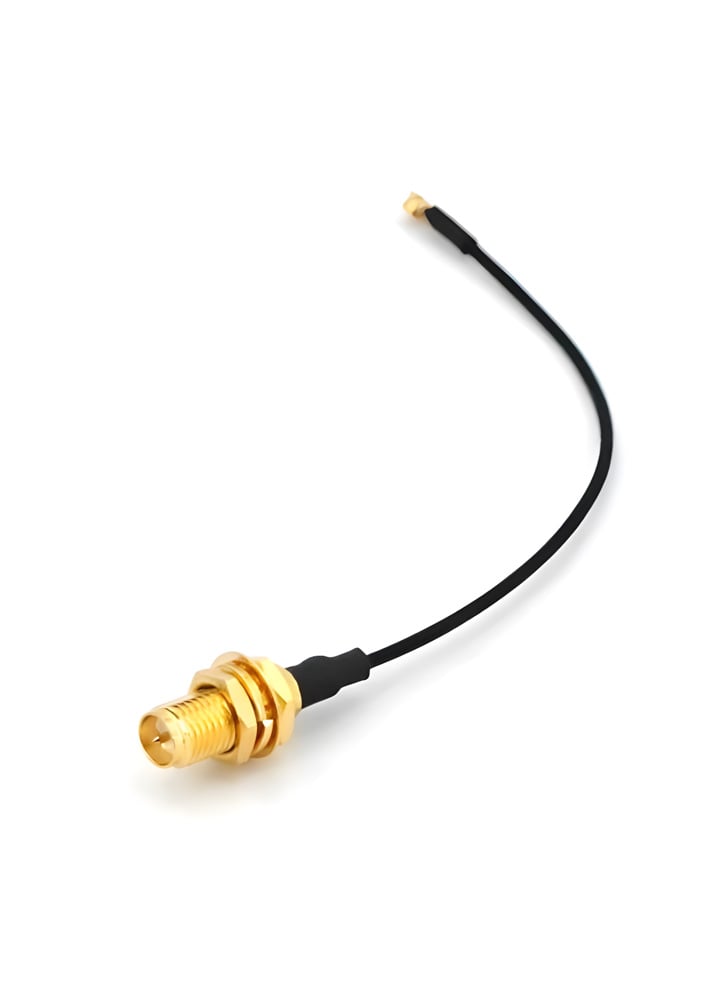

TBS Mambo U.FL to RP-SMA Adapter
TBS Mambo U.FL to RP-SMA Adapter
TBS Mambo U.FL to RP-SMA Adapter

TBS Mambo U.FL to RP-SMA Adapter

£4.60

For those who want to modify their mambo to use an external antenna like the Peter The Penetrator – Tracer TX antenna. Can also be used to mount SMA extensions for in-car operation.

HOW TO:

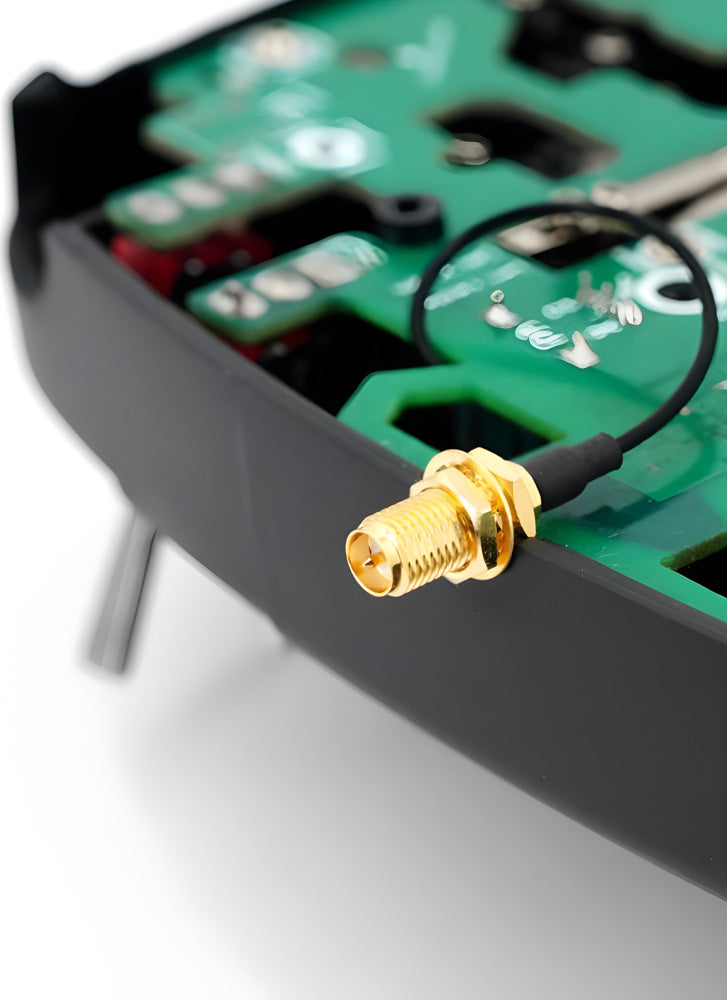

Open up the radio and you will find a circular groove located at the top of the radio

Drill a hole there with a diameter of approximately 6.2 – 6.5mm. Do not make it flush with the groove or the adapter will have no place to secure.

Connect the ufl side on to the PCB

Instal RP-SMA adapter with the lock washer and hex nut on the outside.

Done!

In the box
