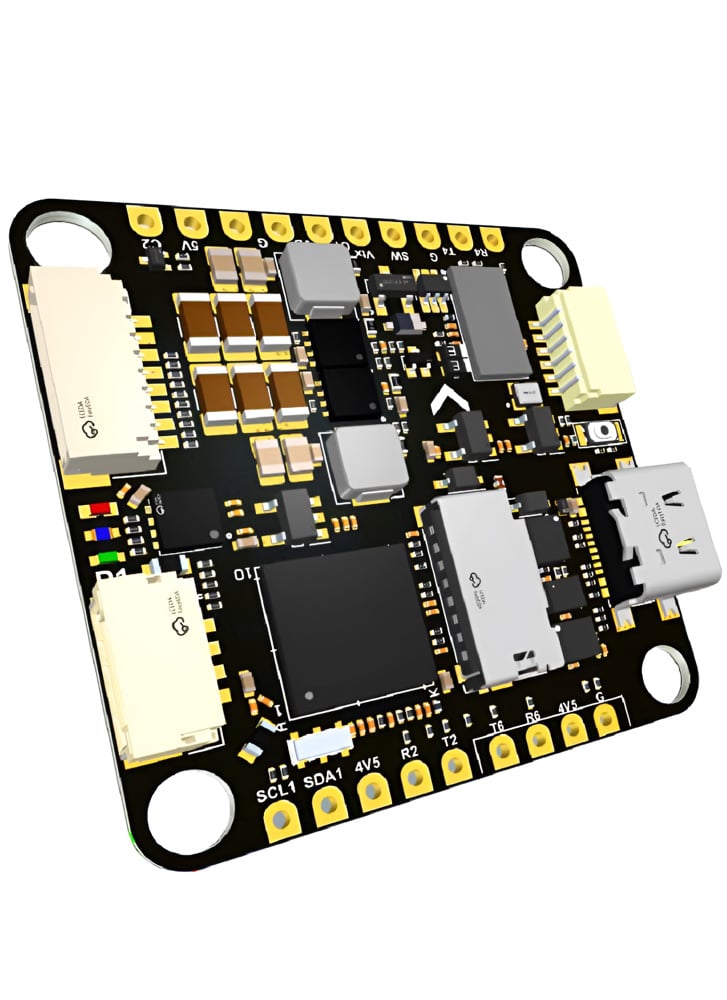

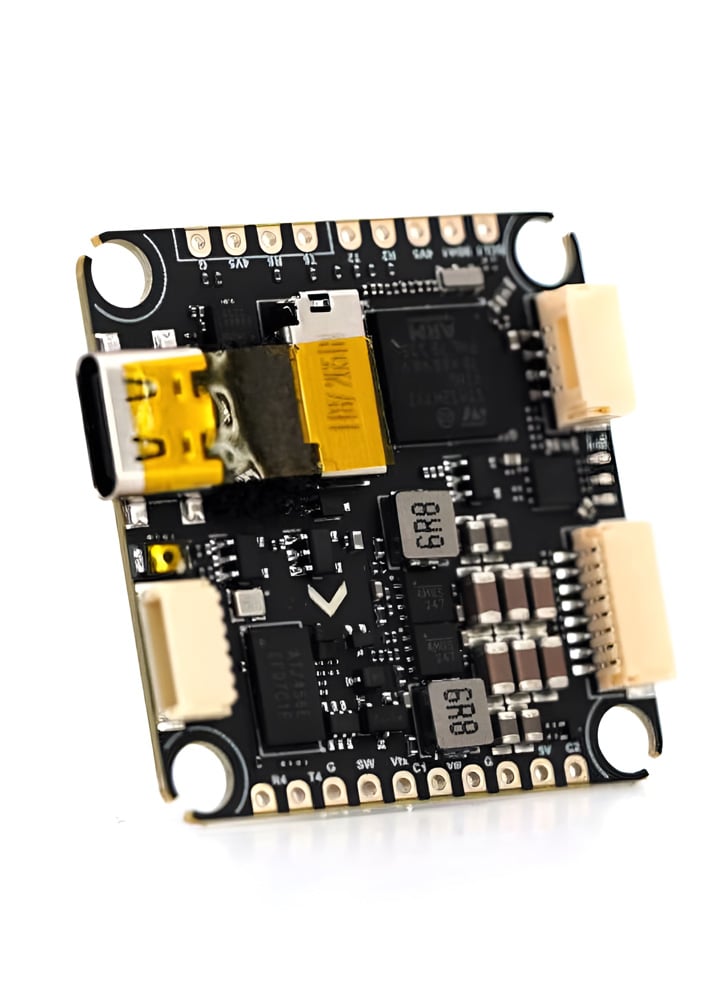

TBS Lucid H7 FC Flight Controller 2-8S 30×30 – NDAA Made in the USA
£83.95
This version is NDAA-compliant and made in the USA. Original Made in China Version HERE .
Unleash the full potential of your drone with the NDAA Compliant TBS Lucid H7 Flight Controller — engineered for peak performance and versatility. Powered by the STM32H743VIH6 MCU running at 480MHz, it seamlessly supports Betaflight, ArduPilot, and INAV, ensuring smooth control and precision. Equipped with dual ICM42688 gyros for ultimate stability, 7 UARTs, dual camera inputs, and DJI FPV OSD compatibility, the Lucid H7 adapts to any build — freestyle, racing, or cinematic. With robust 13 PWM outputs, a dedicated LED pad, and wide 2–8S LiPo support, this flight controller is designed for both seasoned pilots and ambitious newcomers. NDAA-Compliant for added security and compatibility.
Features
- Built for racing and freestyle
- Plug-and-Play Connectivity
- User-Friendly Design
- Supports 4-in-1 ESCs
- Versatile Application
- High Compatibility
Specifications
- MCU: STM32H743VIH6 running at 480MHz, with 1MB RAM and 2MB Flash.
- Gyro: ICM42688
- OSD Chip: AT7456E (SPI2)
- Barometer: Infineon DPS310 connected via I2C2.
- PWM Outputs: 13 channels, including a dedicated “LED” pad.
- Blackbox (BB): Data logging equipped with a MicroSD card slot (SDIO)
- UARTs: 7 total (1, 2, 3, 4, 6, 7, 8) signal inversion ready
- I2C Buses: 2 available.
- CAN Bus: 1 available.
- Analog Inputs: 6 ADC channels (VBAT, Current, RSSI, Analog AirSpeed, Vbat2, Cur2).
- LED Indicators: 3 LEDs (Blue, Green for FC Status, Red for 3.3V Power).
- Breakout: SPI3 breakout available.
- USB Interface: Type-C connector (USB 2.0 standard).
- JST Connectors: 1x JST-SH1.0 8-pin (Vbat/G/Curr/Rx8/S1/S2/S3/S4) 1x JST-GH1.25 4-pin (5V/CAN-H/CAN-L/Ground).
- Dual Camera Input: Switchable inputs for two cameras.
- Power Control: Switch for filtered 5V/Vbat output power.
- DJI FPV OSD: Compatible via any spare UART port.
- Mount: 30×30
- Input Voltage: 6 – 36V (2 to 8S LiPo).
- BEC: 5V 2A continuous (3A max) & 9V 2A continuous (3A max)
- LDO 3.3V: Supports up to 200mA.
- Voltage Support: ADC Vbat2 pad supports up to 36V (1K:10K voltage divider).
- Power Consumption: 200mA @ 5V with Betaflight, 150mA @ 5V with ArduPilot.
- ArduPilot: tba
- BetaFlight: tba
- INAV: tba
- TBS Lucid H7 FC
- FC-to-ESC cable (plug & play)
- DJI O3 cable (plug & play)
- 4pcs M3 rubber dampers
- 4pcs M3x8 screws
In the box
- 1x JST-SH1.0 8-pin (Vbat/G/Curr/Rx8/S1/S2/S3/S4)
- 1x JST-GH1.25 4-pin (5V/CAN-H/CAN-L/Ground).
