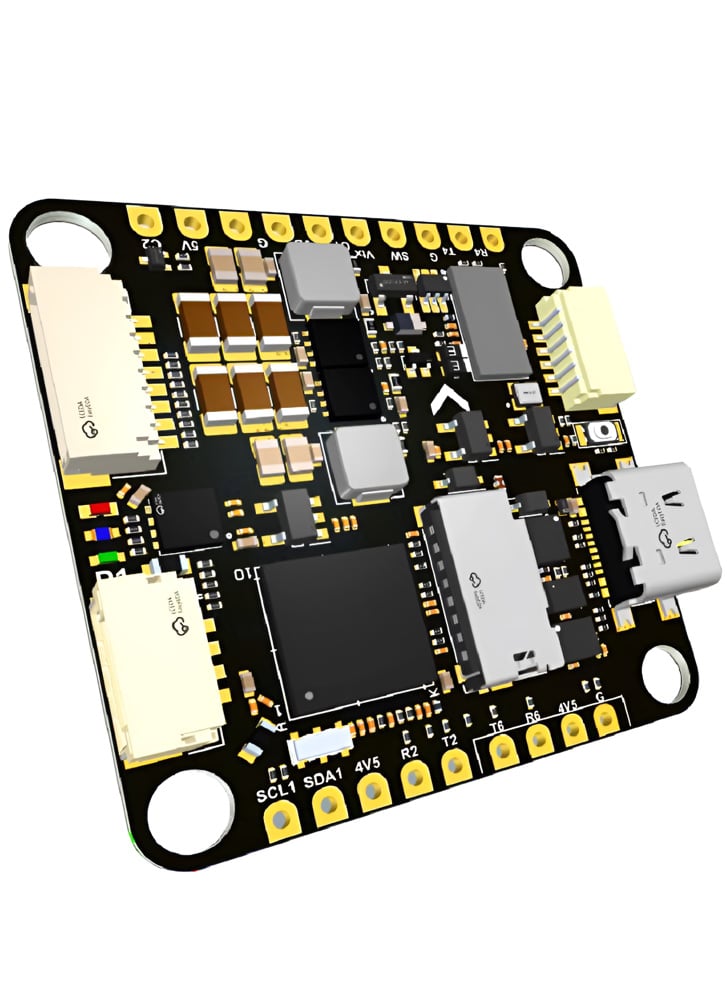

TBS Lucid H7 FC Flight Controller 2-8S 30×30
£59.95
The TBS Lucid H7 FC is a powerhouse built for those who crave peak performance and adaptability in their drones. Whether you’re ripping through freestyle moves or fine-tuning a racing rig, the TBS Lucid H7 delivers with its robust 480MHz processor and seamless support for Betaflight, ArduPilot, and INAV. Featuring dual camera inputs, DJI FPV OSD compatibility, and a compact design, it fits effortlessly into any setup. Designed for both seasoned pros and enthusiastic newcomers, this flight controller makes pushing the limits of your drone easier than ever.
NDAA-compliant version HERE .
Specifications
- MCU: STM32H743VIH6 running at 480MHz, with 1MB RAM and 2MB Flash.
- Gyro: ICM42688
- OSD Chip: AT7456E (SPI2)
- Barometer: Infineon DPS310 connected via I2C2.
- PWM Outputs: 13 channels, including a dedicated “LED” pad.
- Blackbox (BB): Data logging equipped with a MicroSD card slot (SDIO)
- UARTs: 7 total (1, 2, 3, 4, 6, 7, 8) signal inversion ready
- I2C Buses: 2 available.
- CAN Bus: 1 available.
- Analog Inputs: 6 ADC channels (VBAT, Current, RSSI, Analog AirSpeed, Vbat2, Cur2).
- LED Indicators: 3 LEDs (Blue, Green for FC Status, Red for 3.3V Power).
- Breakout: SPI3 breakout available.
- USB Interface: Type-C connector (USB 2.0 standard).
- JST Connectors: 1x JST-SH1.0 8-pin (Vbat/G/Curr/Rx8/S1/S2/S3/S4) 1x JST-GH1.25 4-pin (5V/CAN-H/CAN-L/Ground).
- Dual Camera Input: Switchable inputs for two cameras.
- Power Control: Switch for filtered 5V/Vbat output power.
- DJI FPV OSD: Compatible via any spare UART port.
- Mount: 30×30
- Input Voltage: 6 – 36V (2 to 8S LiPo).
- BEC: 5V 2A continuous (3A max) & 9V 2A continuous (3A max)
- LDO 3.3V: Supports up to 200mA.
- Voltage Support: ADC Vbat2 pad supports up to 36V (1K:10K voltage divider).
- Power Consumption: 200mA @ 5V with Betaflight, 150mA @ 5V with ArduPilot.
- ArduPilot: tba
- BetaFlight: tba
- INAV: tba
- TBS Lucid H7 FC
- FC-to-ESC cable (plug & play)
- DJI O3 cable (plug & play)
- 4pcs M3 rubber dampers
- 4pcs M3x8 screws
In the box
- 1x JST-SH1.0 8-pin (Vbat/G/Curr/Rx8/S1/S2/S3/S4)
- 1x JST-GH1.25 4-pin (5V/CAN-H/CAN-L/Ground).
