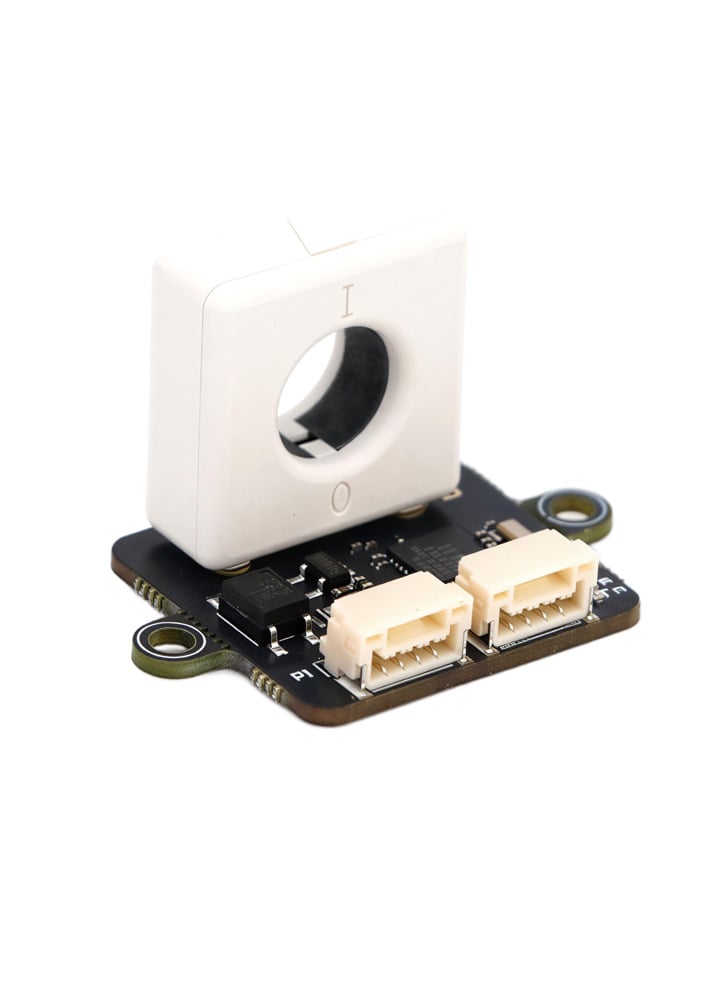

TBS Lucid DroneCAN 150A Hall Sensor

£17.90

The TBS Lucid DroneCAN 150A Hall Sensor, when high current measurements are required without the worry of burning shunt resistors on your FC.

Features

• Current sensors without in-line measuring for ultimate reliability
• Accuracy calibrated in factory
• Firmware: ArduPilot AP_Periph TBS-L431-CurrMon (Update via DroneCAN GUI Tool)
• 2x DroneCAN connectors, dasiy-chainable
• 0~150A DC Continuous current rating
• 17ma Power Consumption
• Hall effect current sensor
• LED: (FN LED blinking, Booting)(TM LED solid, CAN BUS termination active)

Specifications

• Sensitivity: 12mV/A, INAV/BF scale = 120, ArduPilot BATT_AMP_PERVLT = 91
• Continuous current rating: 0~150A DC
• Power Consumption: 17mA
• Dimensions: 35x22x22mm
• Weight: 7g
