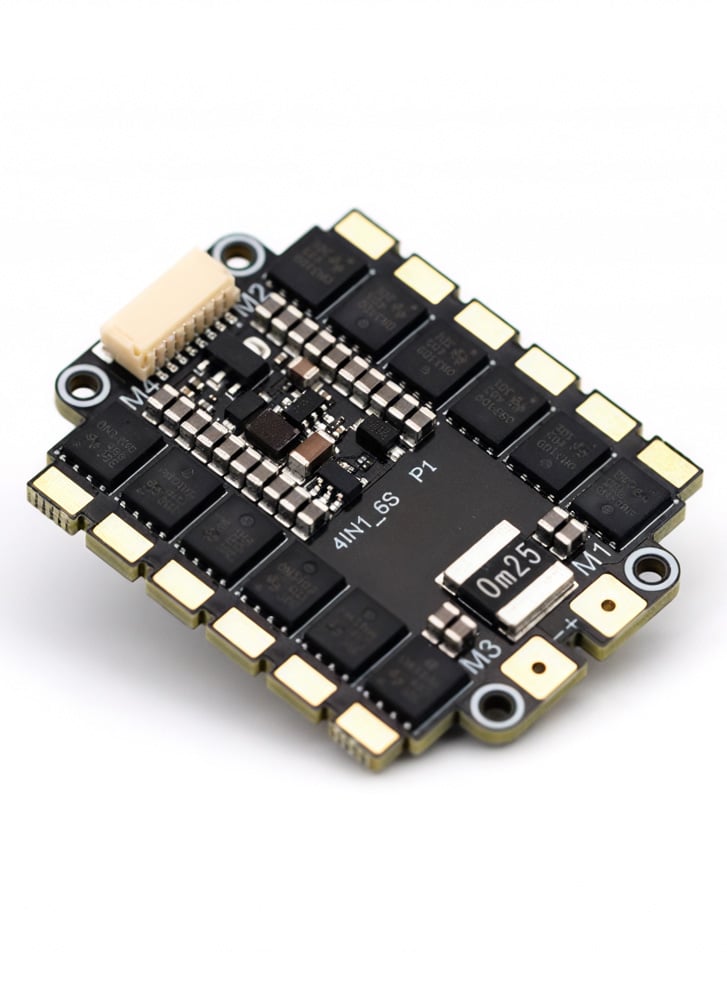

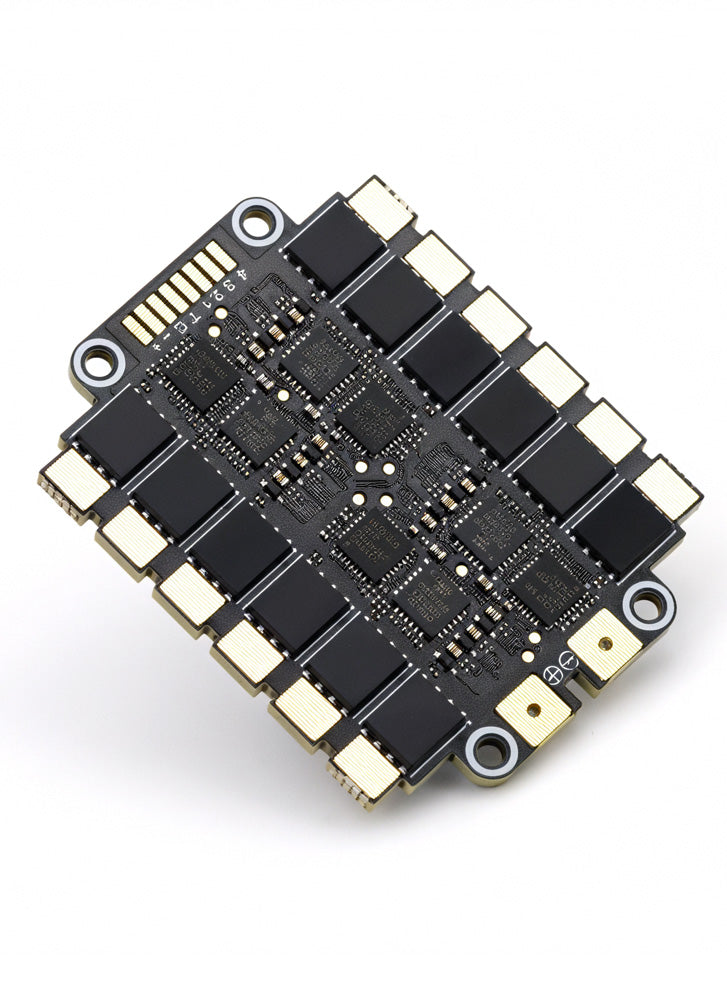

TBS Lucid 6S 4in1 ESC with AM32 Firmware
£49.90
The TBS Lucid 4in1 6S ESC is the latest in product engineering at TBS. Built for racing and freestyle applications and developed to cater to the needs of both seasoned pilots and enthusiastic newcomers.
Featuring an 8 layer high current density board with twice the market average on-board capacitance, the ESC is built to withstand the harshest punishment of everyday FPV flying while delivering buttery-smooth flight characteristics paired with face-melting acceleration. By focusing on thermal dissipation from the ground up, the flight stack achieves excellent power to weight density without the need of heavy heat sinks.
A close collaboration with AM32 allowed us to squeeze the last bit of performance without breaking the bank.
Features
- 4in1 ESC, 60A continuous/ 70A peak(60s), 3-6s input, 13.81g
- AlkaMotors32 (AM32) FW, current-sensor port
- Bi-directional Dshot 300/600, KISS ESC Telemetry

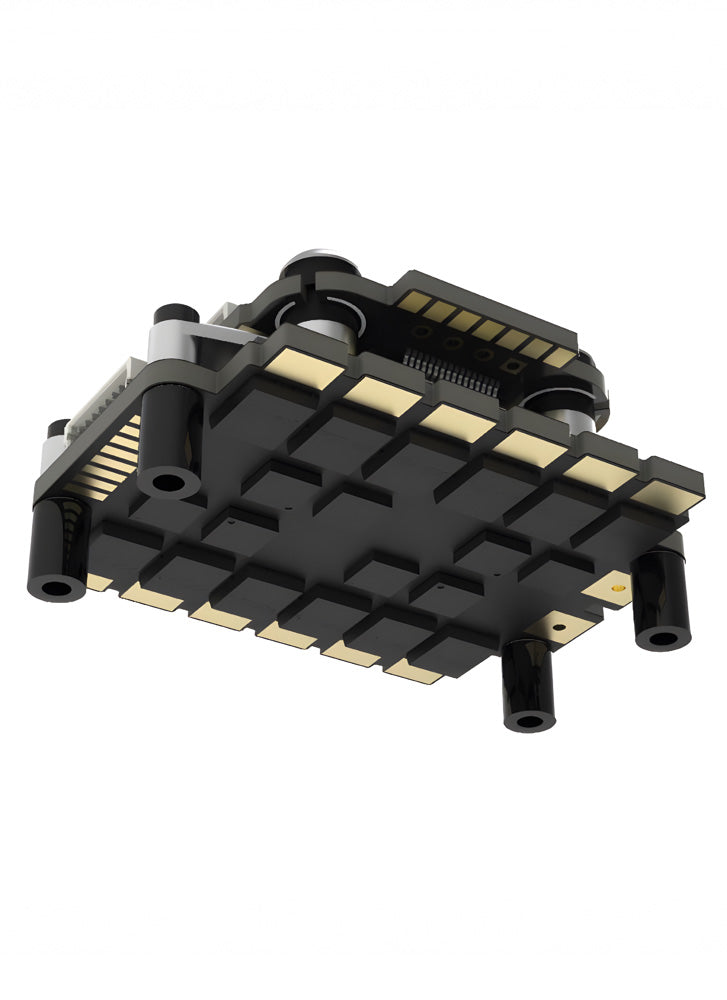

- GORILLA MOUNT
- Superior power delivery is additionally achieved by the innovative mounting brackets which avoid the complication of having to run mounting bolts through the middle of the ESC. We call this the “Gorilla” mount.
- Frame developers are encouraged to integrate the gorilla mounting pattern into their new and upcoming frames. Backwards compatibility is provided through mounting brackets.
- TBS Gorilla 30×30 Adapter
- TBS Gorilla 20×20 Adapter
- DOWNLOADS
- Gorilla mounting pattern
- Frame developer pack for Gorilla mounting pattern
- AM32 Online Configurator
- AM32 Firmware
- TBS Lucid Manual
Specifications
- ESC software: AlkaMotors32 (AM32)
- ESC target: tbslu6s4in1
- Rated current: 60A x 4, 300 seconds
- Peak Current: 70A x 4, 60 seconds
- Propellers: Up to 9″, over 7″ requires good airflow
- Input: 3-6S Lipo
- Protocol: Bi-directional Dshot 300/600), KISS ESC Telemetry
- ESC Current port: Yes
- BEC: No
- Size: 34mmx44mm
- Mounting: Gorilla-mount (39.5 x 16.0mm) or brackets for 20×20 mm, 30.5×30.5 mm
- Weight: 13.81g, 19g incl. brackets

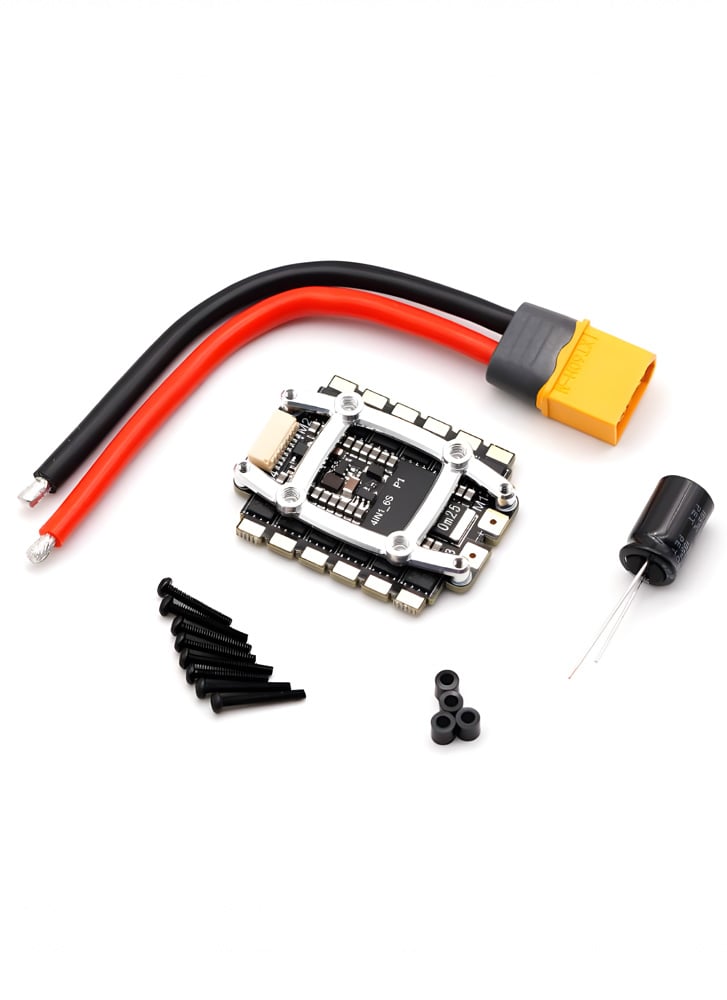

- TBS Lucid 4in1 ESC
- Aluminum top bracket for 20×20 FCs
- XT60 power connector
- 470uF 6S Capacitor
In the box
- 4x 2.2x4mm standoffs
- 4x M2x12 screws
- 4x M2x14 screws
