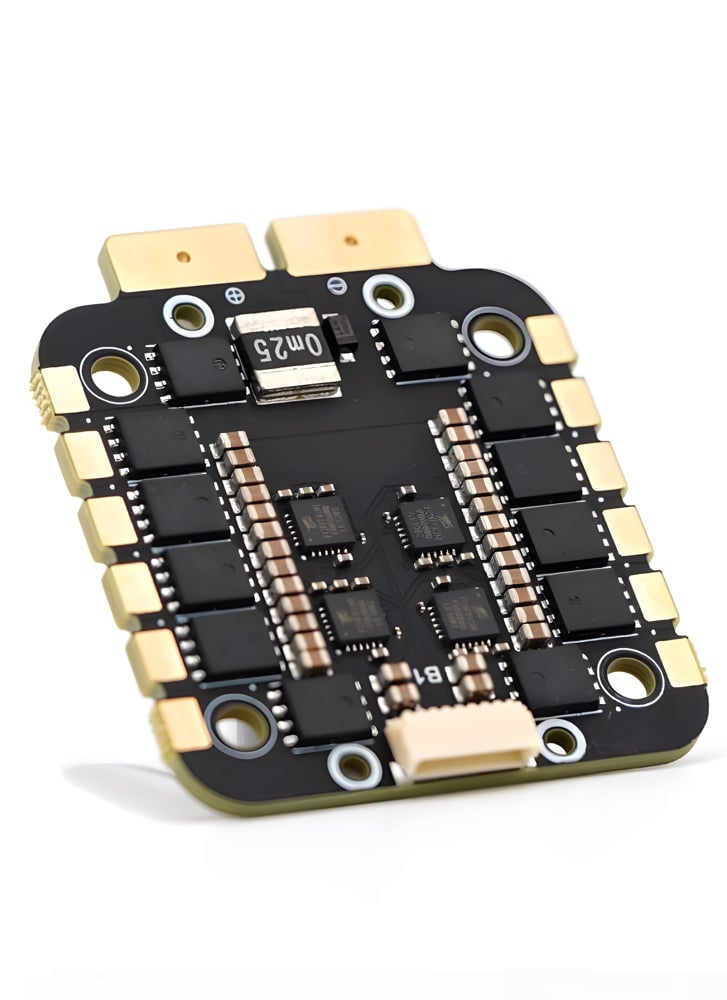

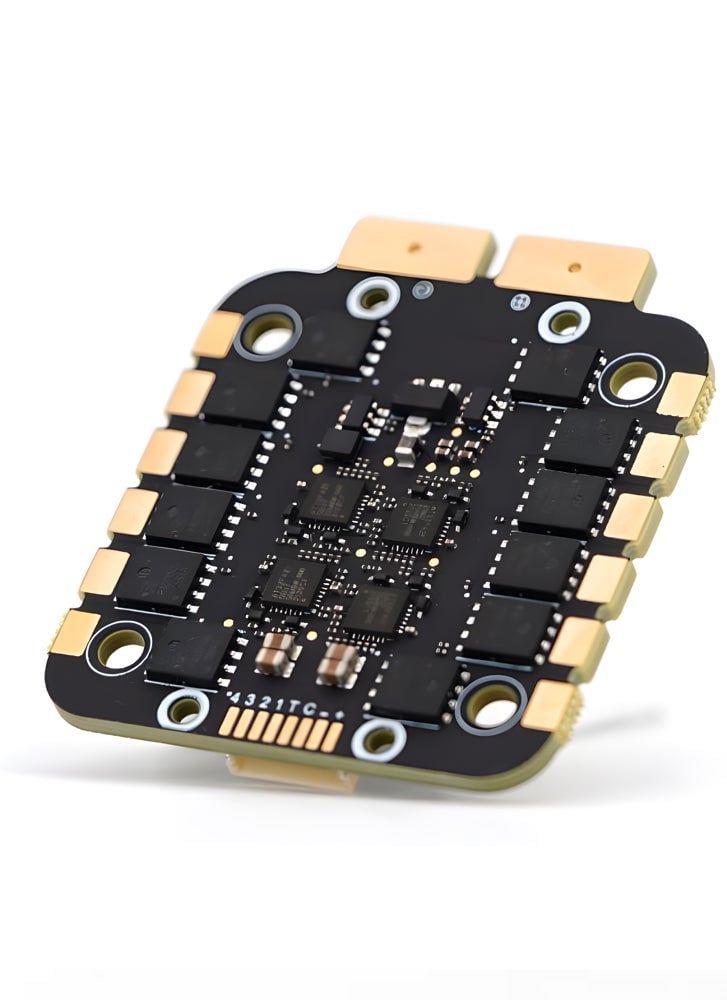

TBS Lucid 3S-8S 4in1 60A ESC AM32 – NDAA Made in the USA
£83.95
This version is NDAA-compliant and made in the USA. Original Made in China Version HERE .
Engineered for peak performance, the NDAA Version of the TBS Lucid 60A 4-in-1 ESC is designed to satisfy both seasoned pilots and ambitious newcomers. Built on an 8-layer high current density board with twice the market average onboard capacitance, it delivers ultra-smooth flight control and explosive acceleration. Crafted for resilience, the Lucid ESC excels under extreme conditions, with advanced thermal dissipation removing the need for bulky heat sinks. Developed in close collaboration with AM32, it’s fine-tuned for maximum efficiency and affordability. NDAA-compliant for added security and compatibility.
Features
- 8-Layer High Current Density Board
- Enhanced On-Board Capacitance
- Optimized for Racing & Freestyle
- Exceptional Thermal Dissipation
- Robust & Reliable ESC
- Powerful Acceleration
- AM32 Collaboration
- NDAA Compliant
- GORILLA MOUNT
- Superior power delivery is additionally achieved by the innovative mounting brackets which avoid the complication of having to run mounting bolts through the middle of the ESC. We call this the “Gorilla” mount.
- Frame developers are encouraged to integrate the gorilla mounting pattern into their new and upcoming frames. Backwards compatibility is provided through mounting brackets.
- DOWNLOADS
- Gorilla mounting pattern
- Frame developer pack for Gorilla mounting pattern
- AM32 Online Configurator
- AM32 Firmware
- TBS Lucid Manual
Specifications
- ESC software: AlkaMotors32 (AM32)
- ESC target: tbslu8s4in1
- Rated current: 555A x 4, 60 seconds
- Peak Current: 85A x 4, 10 seconds
- Propellers: Up to 11″, over 7″ requires good airflow
- Input: 3-8S Lipo
- Protocol: Bi-directional Dshot 300/600), KISS ESC Telemetry
- ESC Current port: Yes
- BEC: No
- Size: 50mm*42mm
- Mounting: Gorilla-mount (39.5 x 16.0mm) & 30.5×30.5 mm or brackets for 20×20 mm,
- Weight: 17.58g, 22g incl. brackets
- TBS Lucid 8S 4in1 ESC
- Aluminum top bracket for 20×20 FCs
- XT60 power connector
- 560uF 8S Capacitor
In the box
- 4x 2.2x4mm standoffs
- 4x M2x12 screws
- 4x M2x14 screws (for 30×30 mount)
