TBS Lucid 3S-8S 4in1 60A ESC AM32
£59.90
The TBS Lucid flight stack is the latest in product engineering at TBS. Built for racing and freestyle applications and developed to cater to the needs of both seasoned pilots and enthusiastic newcomers.

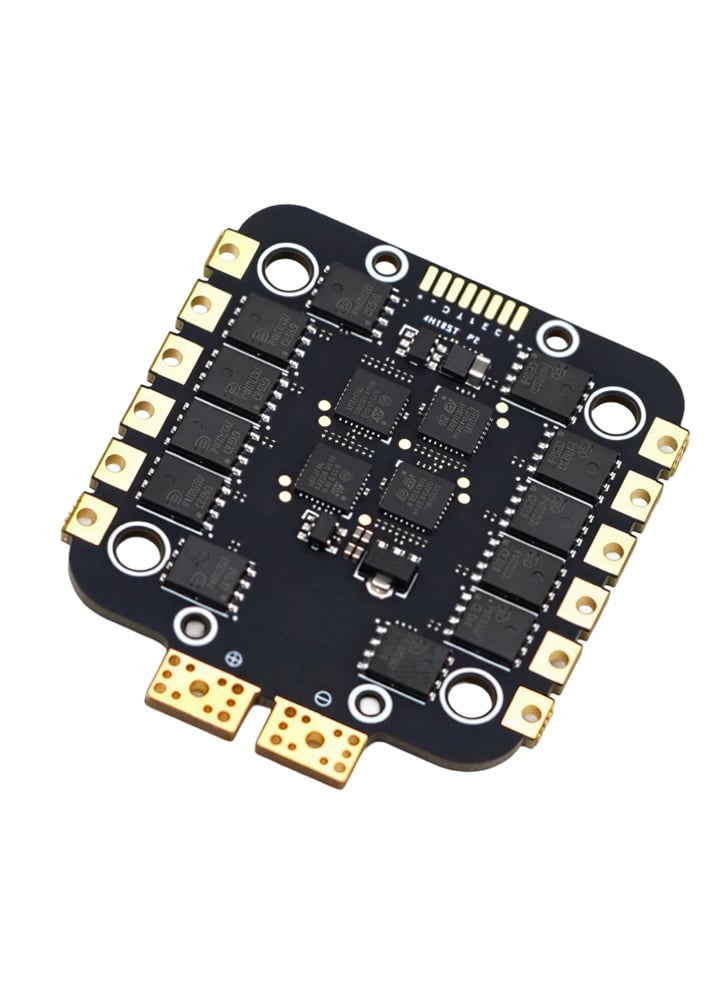

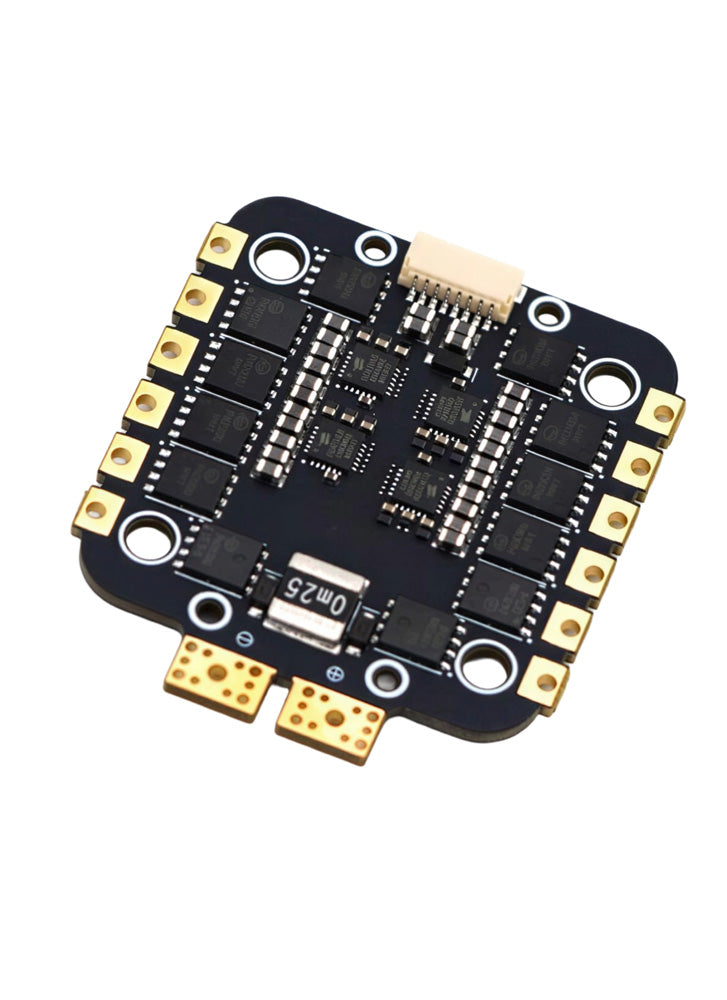

Featuring an 8 layer high current density board with twice the market average on-board capacitance, the ESC is built to withstand the harshest punishment of everyday FPV flying while delivering buttery-smooth flight characteristics paired with face-melting acceleration. By focusing on thermal dissipation from the ground up, the flight stack achieves excellent power to weight density without the need of heavy heat sinks.
A close collaboration with AM32 allowed us to squeeze the last bit of performance without breaking the bank.
GORILLA MOUNT
Superior power delivery is additionally achieved by the innovative mounting brackets which avoid the complication of having to run mounting bolts through the middle of the ESC. We call this the “Gorilla” mount.
Frame developers are encouraged to integrate the gorilla mounting pattern into their new and upcoming frames. Backwards compatibility is provided through mounting brackets.
DOWNLOADS
Gorilla mounting pattern
Frame developer pack for Gorilla mounting pattern
AM32 Online Configurator
AM32 Firmware
TBS Lucid Manual
NDAA-compliant version HERE .
Specifications
- ESC software: AlkaMotors32 (AM32)
- ESC target: tbslu8s4in1
- Rated current: 555A x 4, 60 seconds
- Peak Current: 85A x 4, 10 seconds
- Propellers: Up to 11″, over 7″ requires good airflow
- Input: 3-8S Lipo
- Protocol: Bi-directional Dshot 300/600), KISS ESC Telemetry
- ESC Current port: Yes
- BEC: No
- Size: 50mm*42mm
- Mounting: Gorilla-mount (39.5 x 16.0mm) & 30.5×30.5 mm or brackets for 20×20 mm,
- Weight: 17.58g, 22g incl. brackets

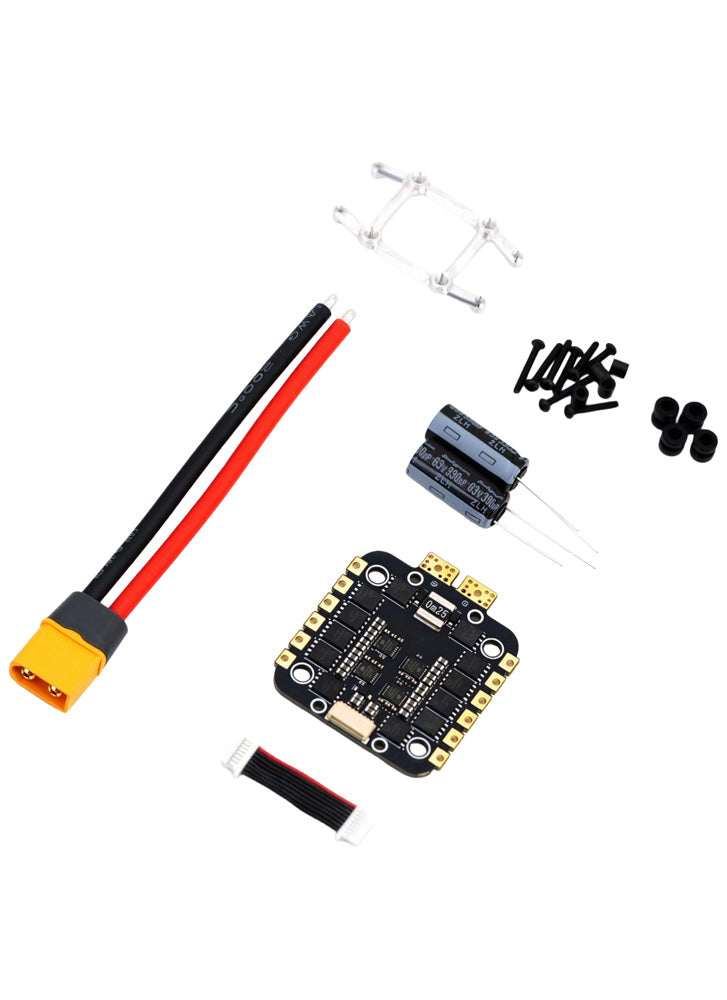

- TBS Lucid 8S 4in1 ESC
- Aluminum top bracket for 20×20 FCs
- XT60 power connector
- 560uF 8S Capacitor
In the box
- 4x 2.2x4mm standoffs
- 4x M2x12 screws
- 4x M2x14 screws (for 30×30 mount)
