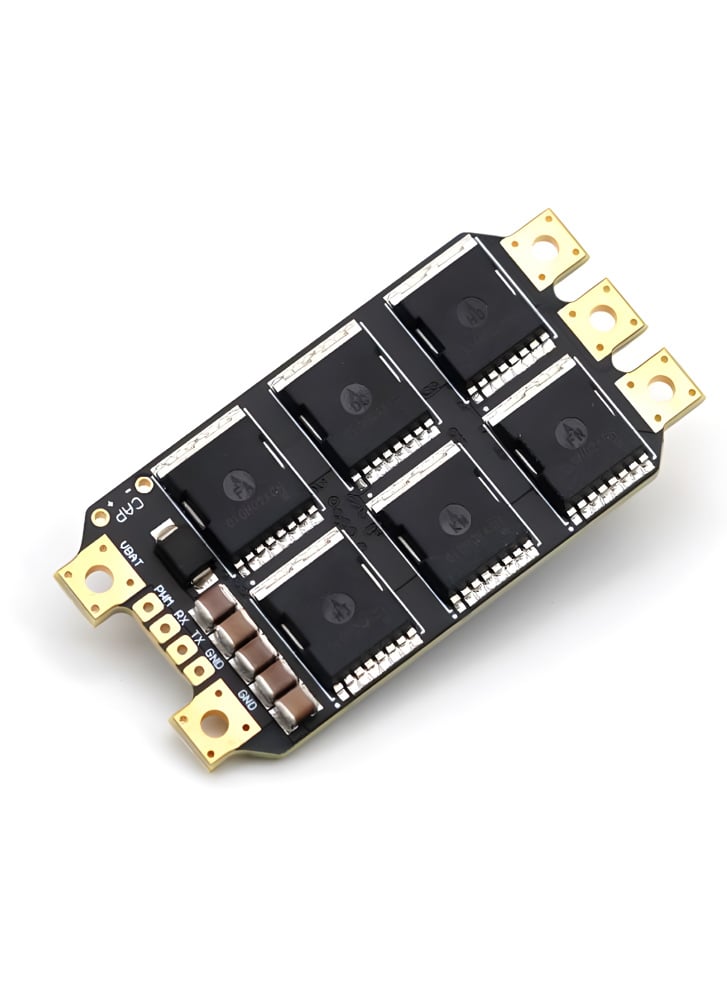

TBS Lucid 3S-12S 90A Single ESC with AM32 – NDAA Made in the USA
£71.95
This version is NDAA-compliant and made in the USA. Original Made in China Version HERE .
The NDAA Version of the TBS Lucid 12S ESC is built for high-voltage, high-power applications where reliability is non-negotiable. Featuring an 8-layer high current density board with exceptional heat resistance, this ESC can handle the rigors of intense flying while supporting heavy payloads. Integrated TVS protection safeguards against voltage spikes, giving you peace of mind in every flight. With a design focused on thermal dissipation—without the added weight of bulky heat sinks—the Lucid 12S strikes the perfect balance between power and efficiency. Developed in close collaboration with AM32, it pushes performance to the limit without breaking the bank. NDAA-Compliant for added security and compatibility
Features
- Advanced Thermal Dissipation
- AM32 Firmware Collaboration
- Built for Harsh Conditions
- High Voltage Powerhouse
- Lightweight & Powerful
- Robust 8-Layer PCB
- NDAA Compliant
- TVS Protection
- Links
- AM32 Online Configurator
- AM32 Firmware
Specifications
- ESC software: AlkaMotors32 (AM32)
- ESC target: AM32_TBS_12S_F421
- Rated current: 70A, 60 seconds, 90A 40 seconds
- Peak Current: 120A, 30 seconds
- Propellers: Up to 15″, over 7″ requires good airflow
- Input: 3-12S Lipo
- Protocol: Bi-directional Dshot 300/600), KISS ESC Telemetry
- ESC Current port: Yes
- BEC: No
- Size: 57.75mm x 29mm
- Mounting: See DXF drawing
- Weight: 19g excl. cable and capacitors

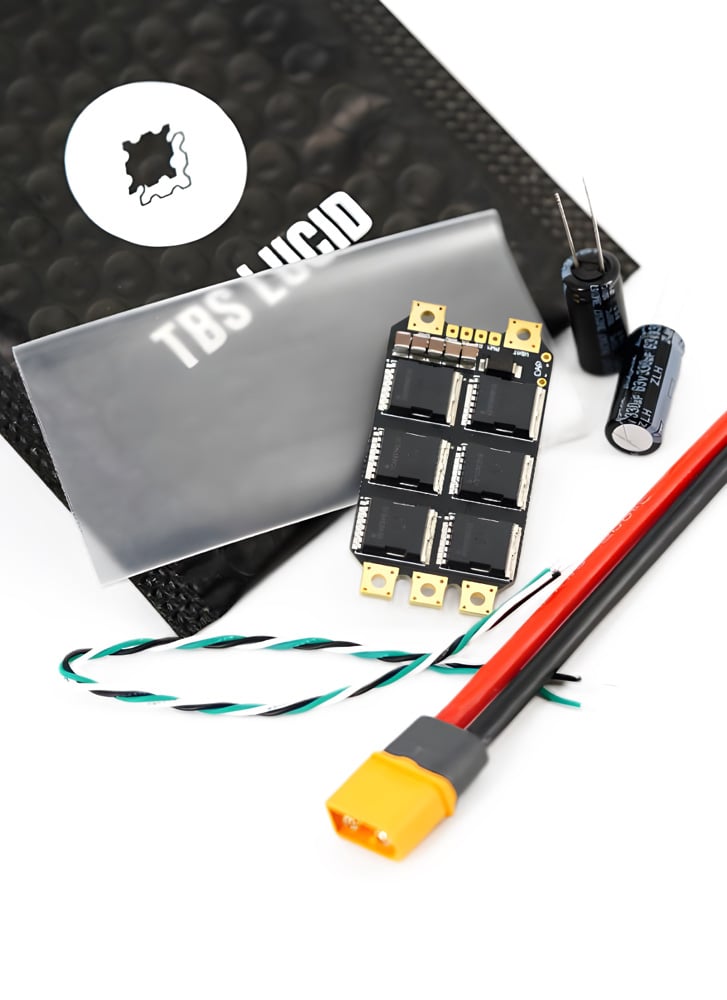

In the box
- 1x TBS Lucid 12S ESC
- 1x XT60 12 AWG wire
- 1x 3-color wire for PWM or Serial (D-Shot, CRSF)
- 1x shrink tube (transparent)
- 2x 330uF 12S low-ESR Capactior
