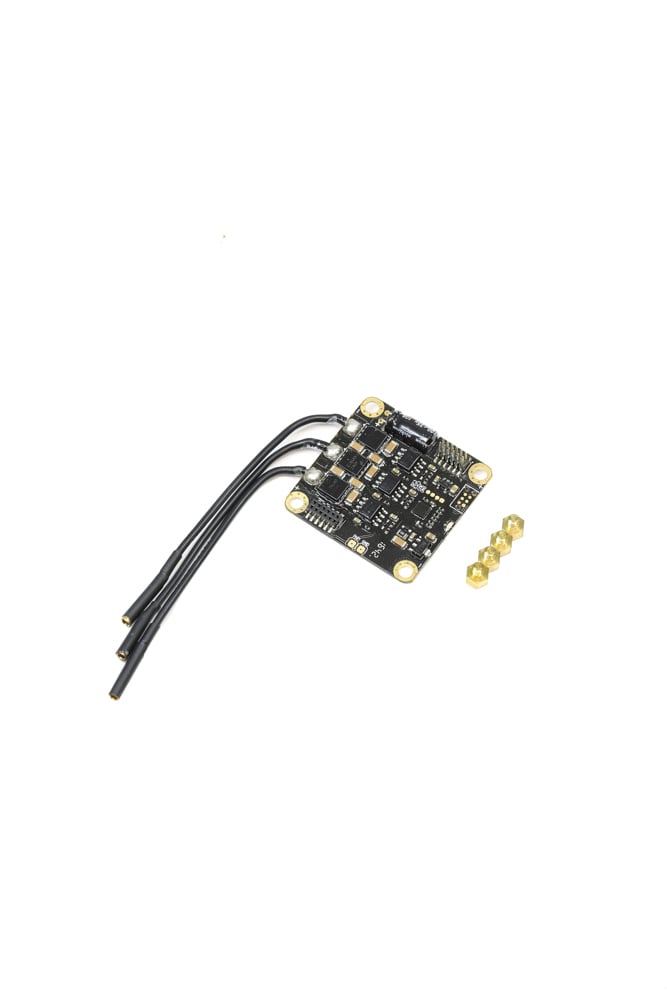

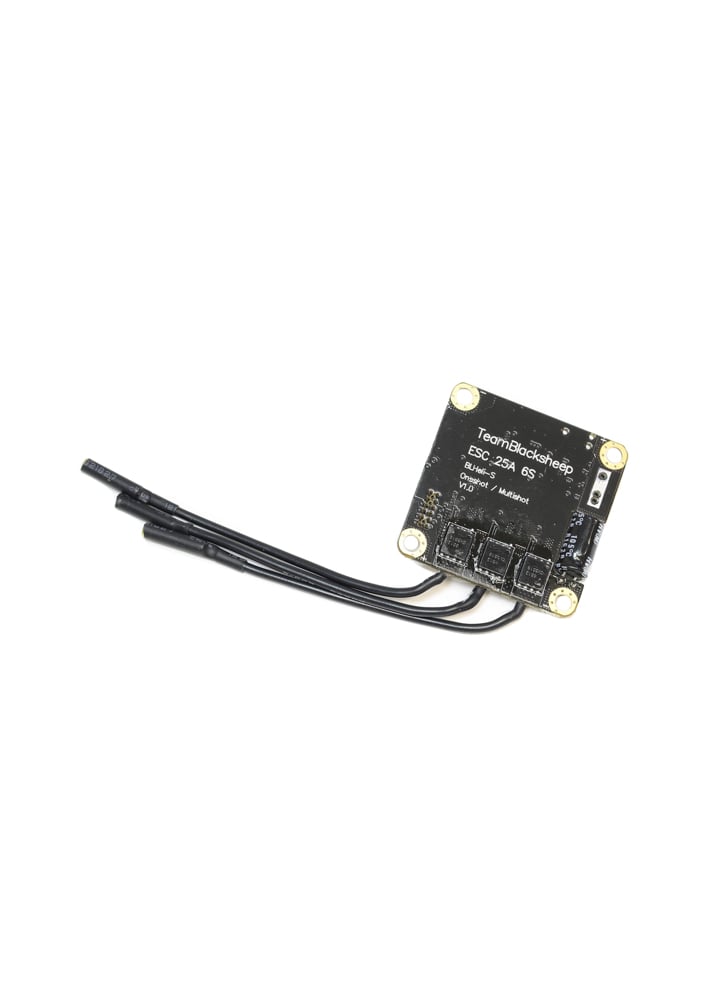

TBS BulletProof Powercube 25A 6S V2 – Spare ESC
£17.90
The world’s most reliable, powerful and precisely switching ESC just got a major overhaul and re-design. With raceing driving the technology forward, TBS was dead set on setting a new milestone in ESC technology. Stackable to cater any kind of multi rotor configuration, with unmatched input resolution, output power, regenerative braking and ease-of use. Forget the days were you had to bother about configuring your ESCs. Stack, plug and fly!
** These are the new V2 versions **
Note: requires Coiibri Race >V2.0!
BUILT FOR RACE
960 step input resolution
Multishot 32KHz, OneShot auto detection
Fastest regenerative braking
Dedicated PWM FET driver IC for fastest in class FET switching (lowest deadtime)
Latest BlHeli-S firmware
SAFE AND RELIABLE
Mechanical crash protection (no more fires!)
Optimized passive cooling
Automatic Motor/ESC protective cutoff
Status LED
For defualt settings of the ESCs, please click here
Specifications
- Continuous Current 25A, peak 45A
- Voltage Range: 6 – 26V
- Firmware: BlHeli (actual V16.x, FH-00)
- Dimensions: 36mm x 36mm x 3mm
- Weight: 4.8g without wires. 7.3g incl. wires & 2mm bullet connectors
- Input: Multishot up to 32kHz, Oneshot or PWM
- Connectors: 2.0mm bullet connectors, 80mm wire
- Motor start at 1020us, max at 1980us
In the box
- 1x TBS Powercube ESC
- 4x Brass standoffs
