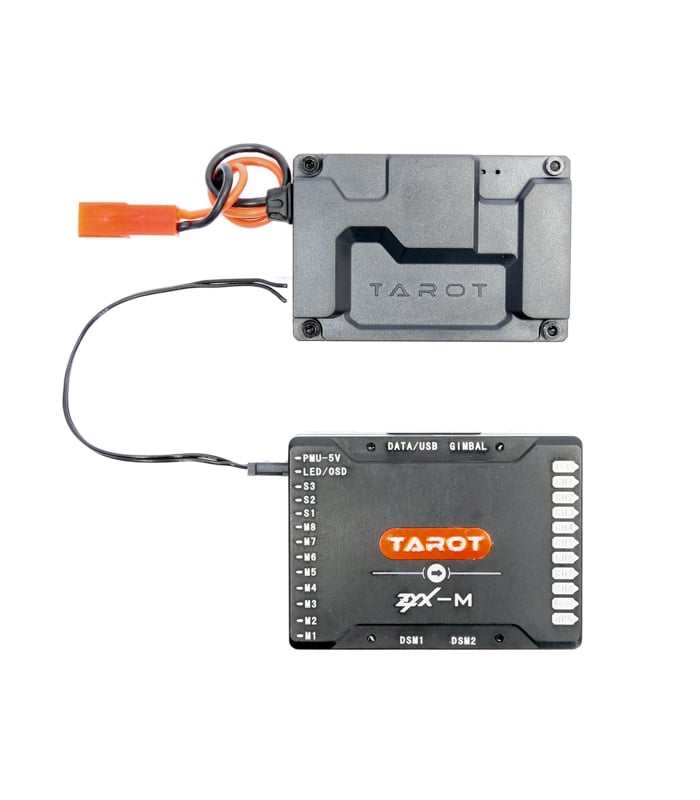

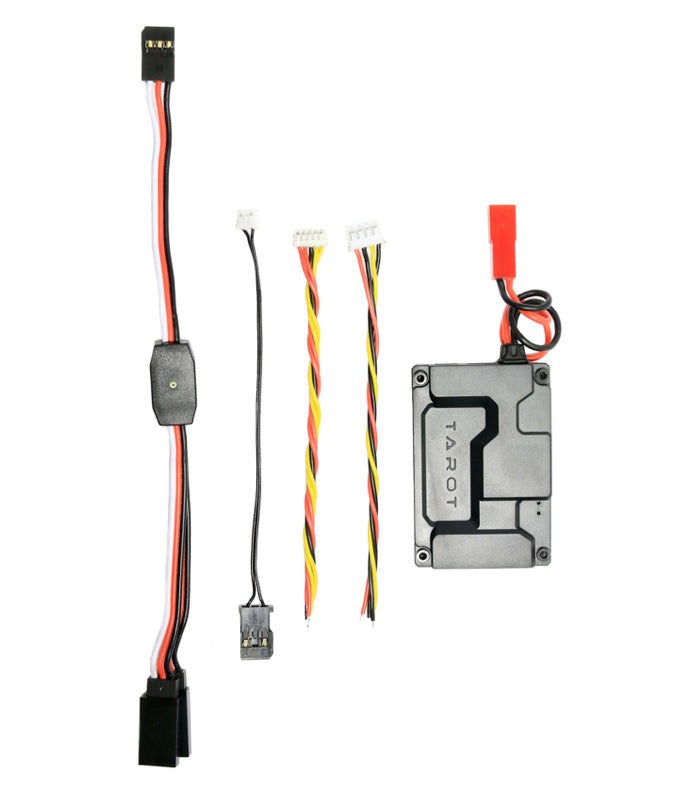

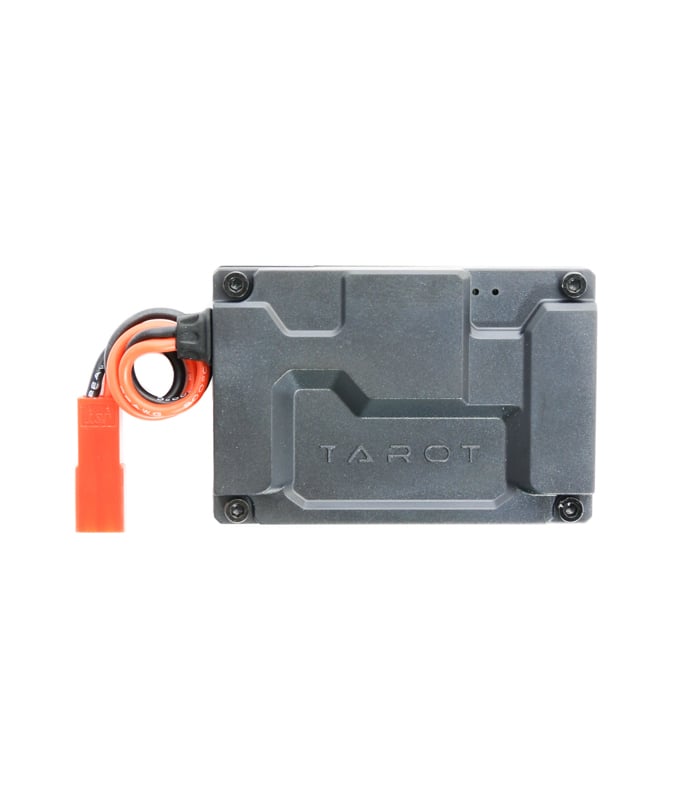

Tarot ZYX-OSD Video Overlay System for ZYX-M FC TL300C
£35.00
Features
- With ZYX-OSD, basic fight information, such as altitude and speed, can be superposed on the receiver. You can obtain actual fight status in real time to ensure a safe and delightful journey.
- ZYX-OSD has two-way video input, video input source can be switched by remote control.
Please note: ZYX-OSD must be used in conjunction with ZYX-M flight control system.
OSD Functions:
Roll Attitude
Pitch Attiude
Horizontal Speed
Vertical Speed
Flight Mode
Failsafe Status
Battery Voltage
Relative Altitude
Satellite Count
Distance from Home
Heading
Flight Time
Home Point Position
Specifications
- Input voltage/current:12 V (80mA)
- Output voltage/current: 12V(1.5A) & 5V(2.0A)
- Dimensions: 53x36x10 mm
- Weight:18g
- Video Format: PAL/NTSC (AUTO-identifcation)
- Operating Temperature: -20℃ ~60℃
