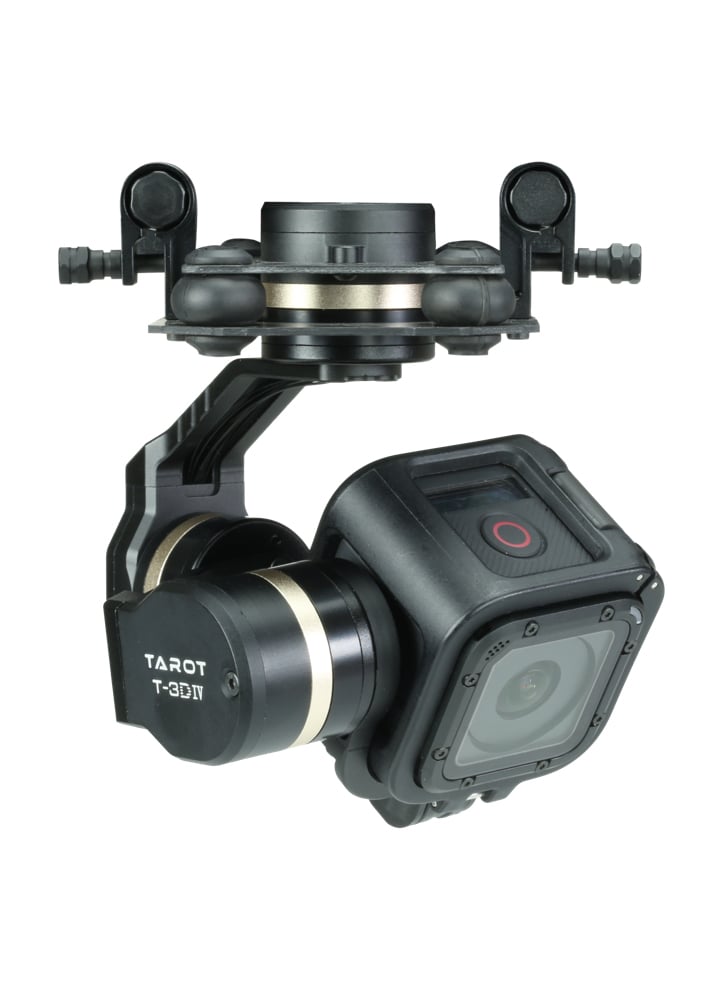

Tarot T-3D IV 3-Axis Brushless Gimbal For GoPro Hero Session

£148.99

Tarot ZYX T-3D IV is the latest 3 Axis brushless gimbal designed for GoPro 4 Session from Tarot. With unique internal wiring design, built-in IMU gimbal control module, specialized servo drive module, this gimbal is able to support Pan Follow (PF) mode and First Person View (FPV) mode.

Also compatible with the RunCam 3 with a little modification.

Please Note: The GoPro Hero Session doesn’t support video out via USB, so you can’t use it for real time FPV flight.

Product Features:

Point follow mode (PF)

First-person view mode (FPV)

Built-in independent IMU modules

TAROT PTZ dedicated servo module

Wide range voltage input

Support conventional receiver / PPM receiver / S-Bus receiver / DSM receiver

Supports Camera: GOPRO HERO4 Session / HERO5 Session

Specifications

• Support conventional receiver / S-Bus receiver / PPM/ DSM receivers
• Support Camera Type: GoPro HERO4 Session  / GoPro HERO5 Session
• Input Power: 2S ~ 6S LiPo battery
• Attitude control accuracy: ± 0.02 degrees
• Operating Current: 30mA (@ 25V) 50mA (@ 12V)
• Stall Current: 350mA (@ 25V) 700mA (@ 12V)
• Working temperature: -20 ° C ~ 50 ° C
• Weight: 153g
• Size: 80mm × 90mm × 120mm
• Software installation requirements: Windows XP
• Windows VISTA
• Windows 7
• Windows 8 (32 or 64 bit)
• The direction of rotation (PAN): ± 200 ° / s
• Pitch direction (TILT): ± 200 ° / s
• Roll direction (ROLL): ± 200 ° / s
• The direction of rotation (PAN): ± 125 °
• Pitch direction (TILT): -120 ° to + 80 °
• Roll direction (ROLL): ± 50 °

In the box

• 1x TL3T02 T-3D 3 Axis Brushless Gimbal
• 1x  PTZ control module (36 × 25 × 11MM)
• 1x 8P head main body and the head cable
• 1x 5V output, the receiver and video cable
• 1x USB module
• 1x Flight control cable
• 1 x Foam sponge
