Tarot Retractable Landing Gear Motor for Large UAVs – 25mm
£55.00
These high capacity landing gear retracts motors are designed for large heavy lifting, industrial application multirotors. They have a robust aluminium alloy construction coupled with a high torque motor and a reliable worm drive-screw mechanism. Two versions are available; a retract with 75degrees range of moment (TL4N004) and another with 90 degrees of movement (TL4N003) – both suit a 25mm tube . The retract motor is designed so that is can be mounted horizontally or vertically. Please note that the retractor will only work in conjunction with the Tarot TL8X002 controller.
Features
- High capacity 25KG landing gear retractor
- Robust 6061 T6 aluminium alloy construction
- Reliable mechanism with metal gearing and a high torque motor
- 75-degree retract angle for increased stability
- To suit 25mm tubes
Note: To complete a landing gear you will need to order two retract motors. The retractor will only work in conjunction with the Tarot TL8X002 retract controller.
We also sell a lower capcity 25mm retractor to suit ~900 size platforms and a 16mm retractor for smaller drones.

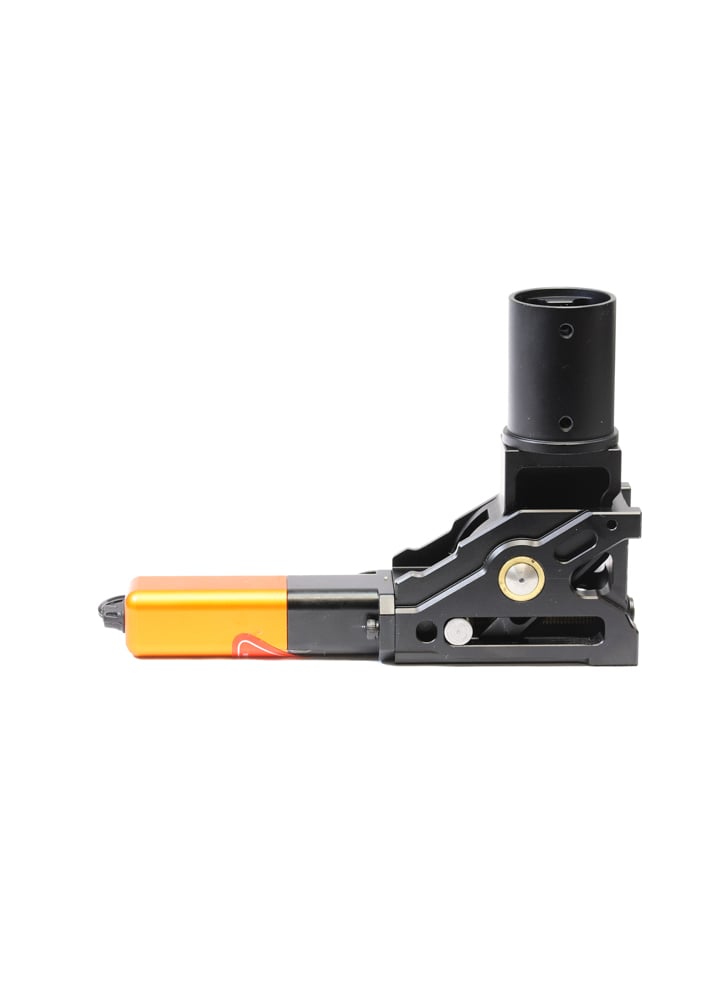

Tarot High Torque Retractable Landing Gear Motor: Left TL4N003 90 ° / Right TL4N004 75 °
Specifications
- Applicable to 25mm Tubes
- Bearing capacity: 25kg
- Retract range: 75/90 degrees
- Weight: 134g
- Size: 115×34 ×36.5mm
- Electronic Landing Gear Retractor (TL4N004/03) x1
