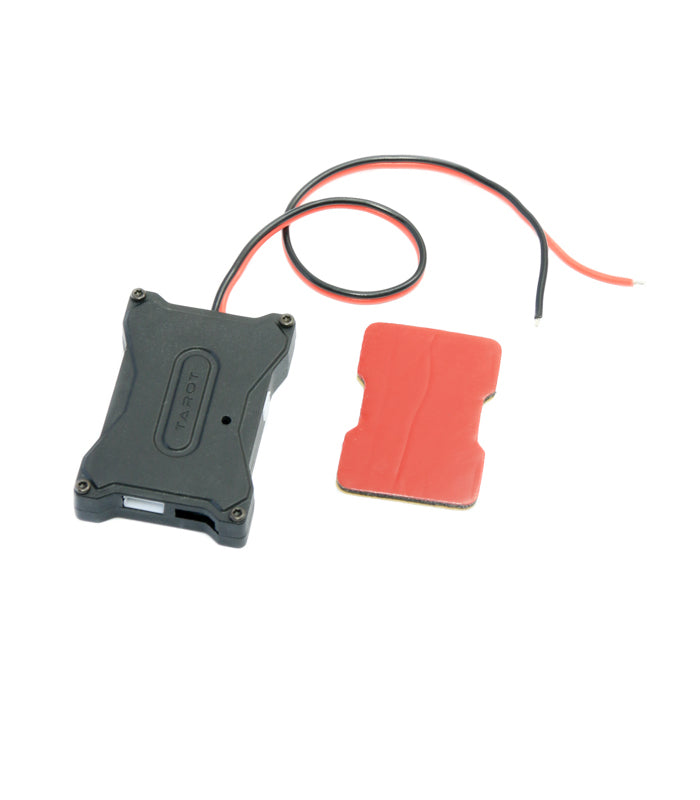

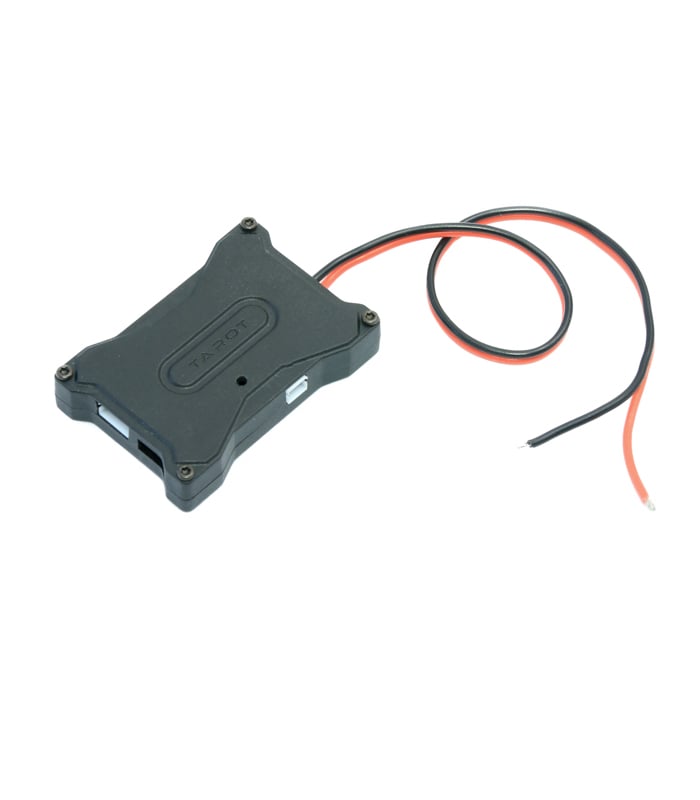

Tarot Retractable Landing Gear Controller and Power Supply – TL8X002

£14.90

This retractable landing gear controller is comptaibtle with the Tarot X-series and T-series multirotors.

Features

• Polarity Protection: The controller is protected against revered positive and negative polarity
• Power Up Safe: The gear will remain deployed when you power on, regardless of the gear switch position.
• Working Status Light: The LED status light will blink when the gear is in motion, once fully deployed or retracted, the LED status will go out.
• Fail Safe Protection: The landing gear will automatically deploy if the control signal is lost
• Wide Working Voltage: The controller has a built in UBEC so it’s compatible with 3S-6S(12.6V-25.2V)

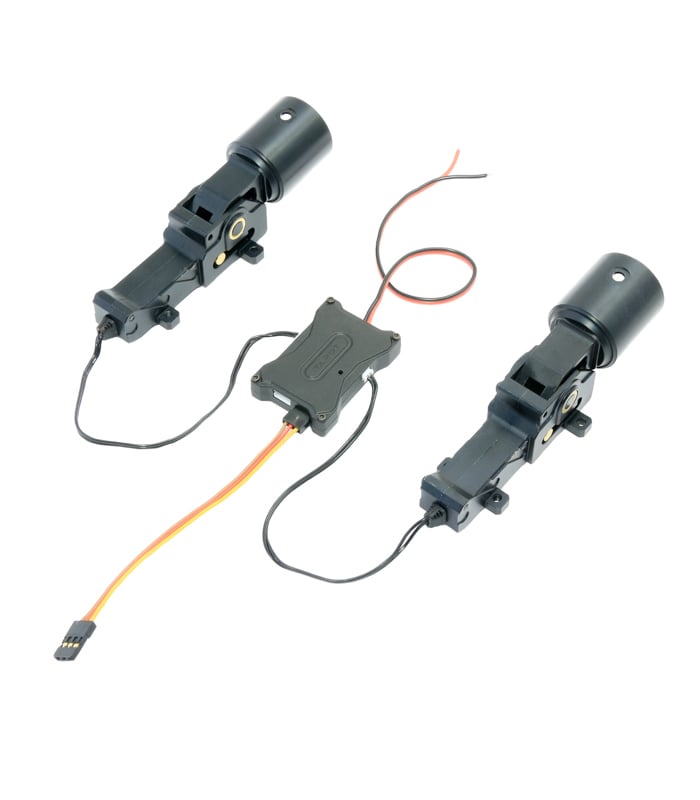

• Compatible with : Tarot TL8X003 / TL8X001 / TL96030 landing gears only – not compatible with the TL65B43.

Specifications

• Working Voltage: 3S-6S(12.6V-25.2V)
• Minimum Voltage: 10V
• Maximum Voltage: 26V
• Signal input: PWM signal, <1520us will deploy, >1520us will retract
• Size: 47×32×9.5MM
• Weight: 14g
