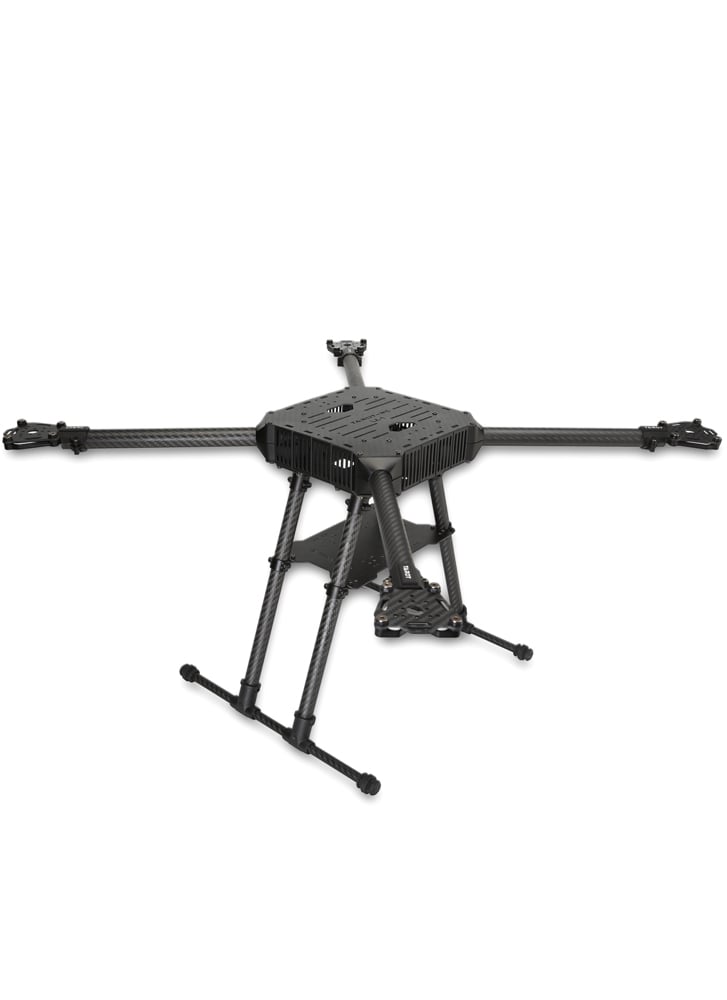

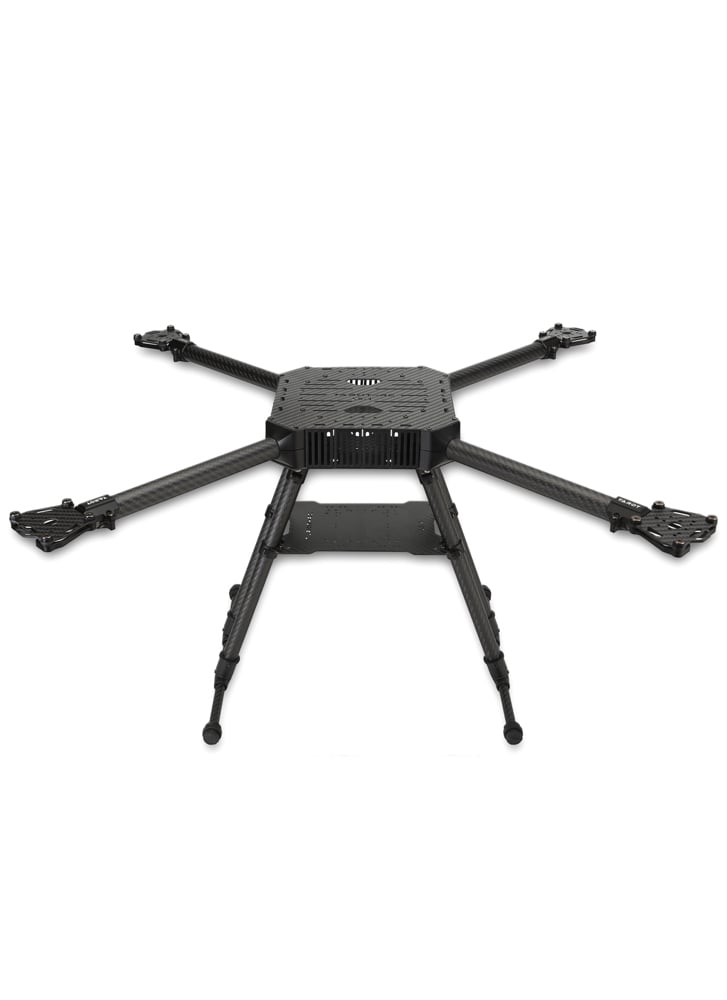

Tarot Multirotor Frame 680mm Quadcopter – TL680A
£190.00
The Tarot TL680A is a 680mm wheelbase quadcopter frame designed for stable, efficient flights in aerial photography, mapping, and surveillance applications. Its integrated, non-folding carbon fiber frame structure provides outstanding rigidity while keeping weight low, ensuring consistent flight performance even under load.
The TL680A uses 6061T6 CNC-machined aluminium alloy parts at key joints for added strength and durability. The frame features a large center panel area for clean installation of your flight controller, power distribution, and additional equipment, with a shock-absorbing motor mount system to reduce vibrations transmitted to sensitive electronics. The T-type double landing gear design offers stability on the ground while protecting your battery compartment and electronics during takeoff and landing.
With an empty frame weight of just 880g and a tested take-off weight around 3.6kg (with a 6S 12000mAh battery), the TL680A is capable of unloaded flight times up to 40 minutes, with practical endurance under load (1kg payload) around 28 minutes depending on conditions.
Features
- Integrated non-folding carbon fiber frame for high rigidity
- CNC-machined 6061T6 aluminum alloy joints for durability
- Large central mounting space for electronics
- Shock-absorbing motor mounts reduce vibration

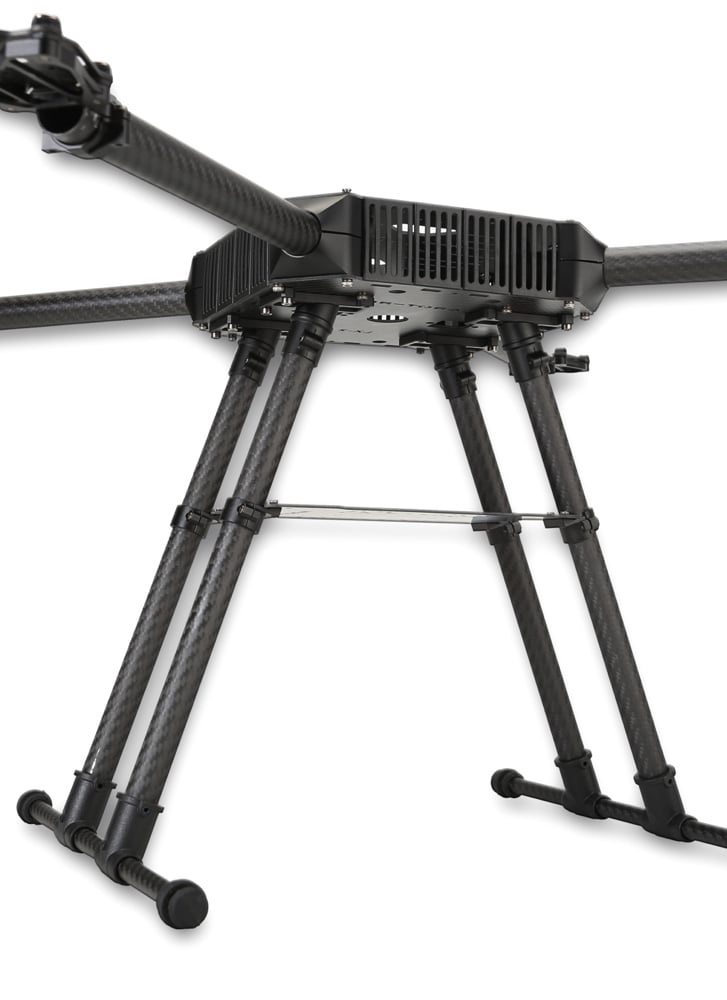

- T-type double landing gear for ground stability
- Weighs only 880g for the frame alone
Recommended Configuration:
Motor: Martin 4012 320KV (6S)
ESC: XRotor 40A
Props: Tarot 18-inch folding props (1865)
Battery: 22.2V 12000mAh
Takeoff weight: 3.6KG
Hovering time: 40Min
Included: FRAME ONLY
Specifications
- Wheelbase: 680mm
- Propeller: 18inch – recommended
- Center plate diameter: 170mm
- Frame Height: 324mm
- Motor installation hole spacing:Diagonal 16mm；Diagonal 19m；Symmetric four sides Φ25；Equilateral triangle Φ32
- Frame weight: 880g
