Tarot MT1104 4000KV 3S Motor with 3020 Prop Set – TL150M1

£9.90

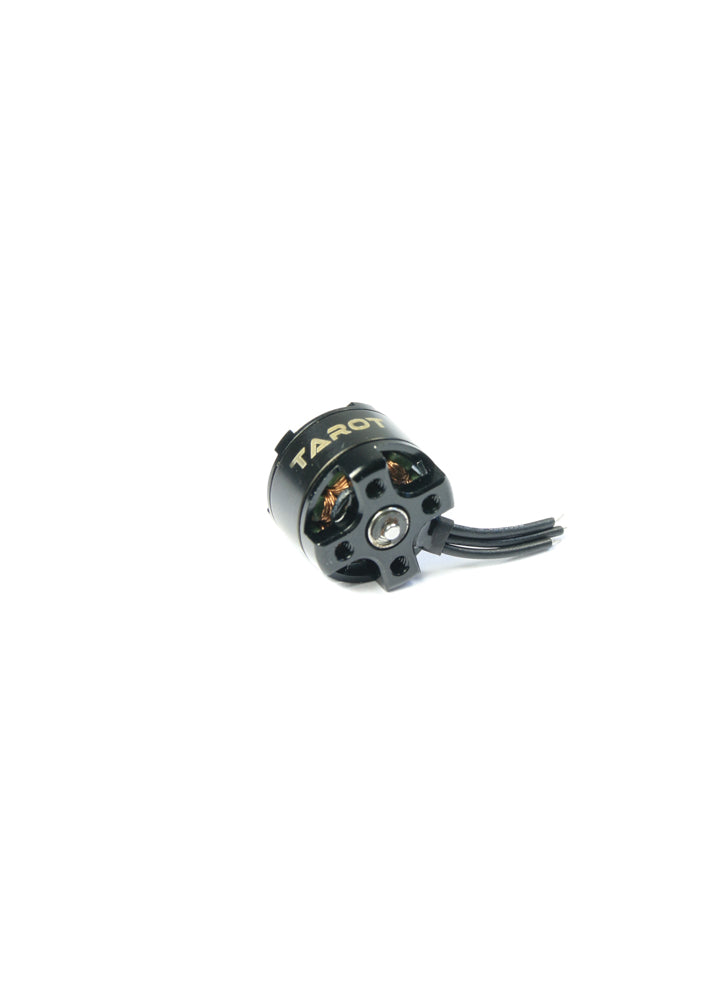

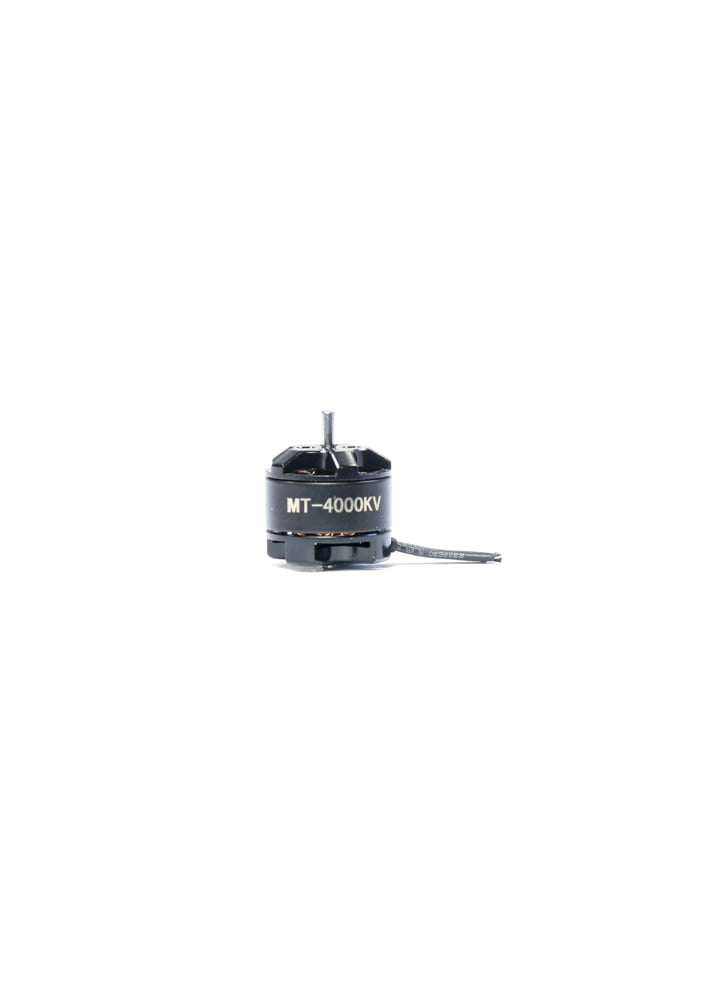

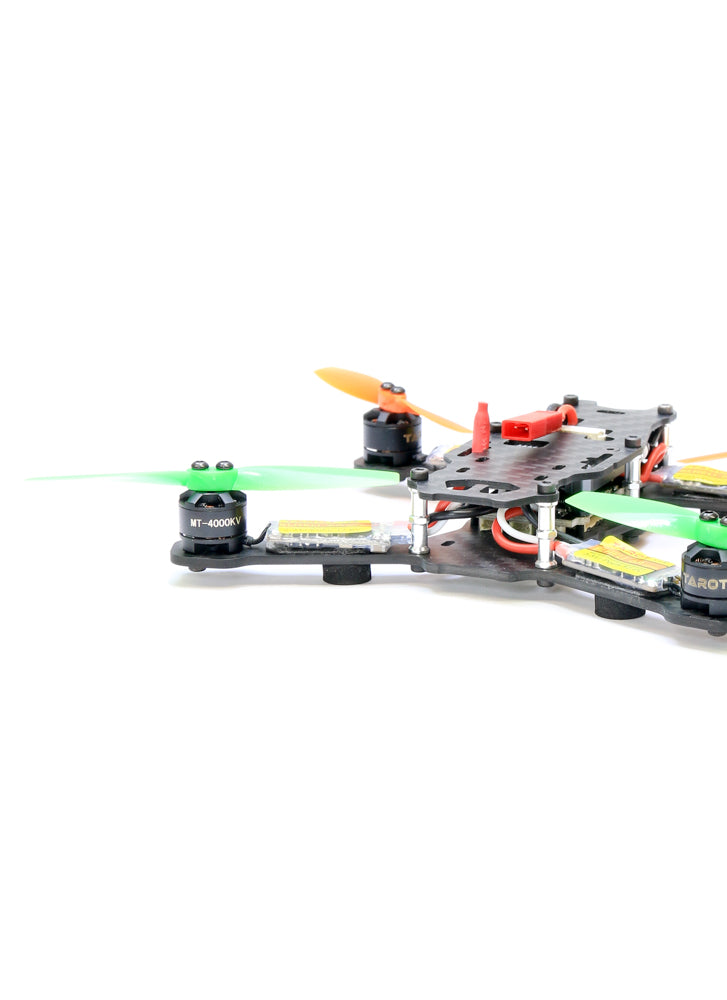

This tiny motor is a genuine spare part for the mini Tarot frames (TL120H1, TL130H1, TL150H1), but it could be used in any micro drone build. The motor is rated at 4000KV and when matched with a 3020 prop produces a 120g thrust output. It’s efficient too with a low current draw, we recommend using it with the Tarot 6A ESC . The motor has M2 9mm spaced mounting holes, compatible with most micro drone frames.

Specifications

• LiPo Battery: 3S
• No. of Stator End: 9
• No. of Stator Pole: 12
• KV: 4000

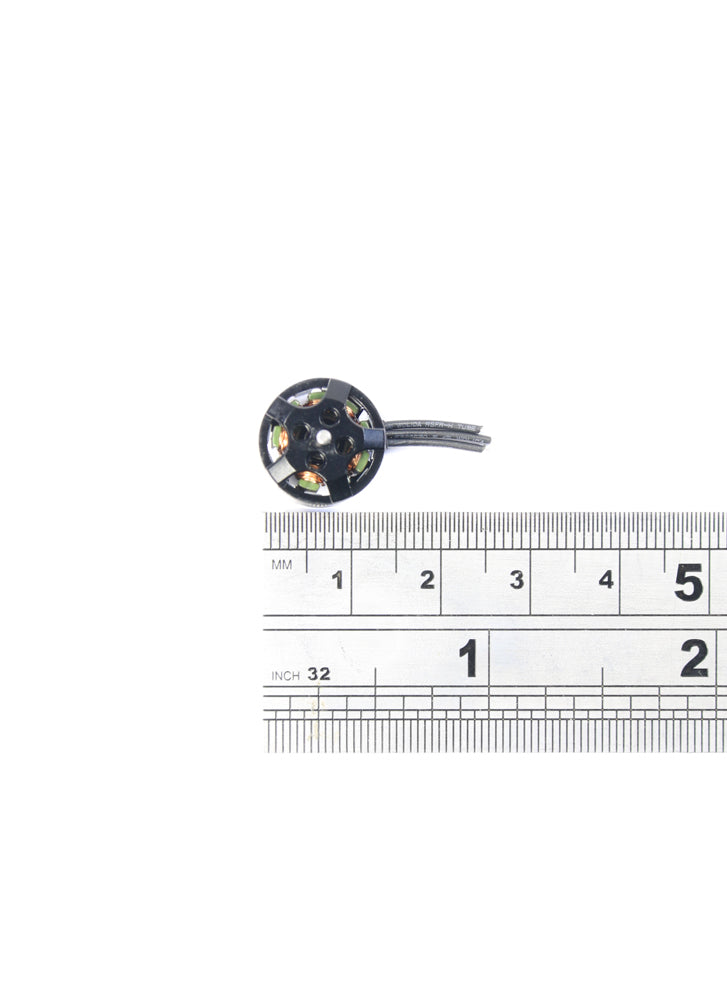

• Motor Diameter: 14mm
• Motor Shaft Length: 1.5mm
• Motor Height: 17.5mm
• Motor Mounting Hole Spacing: 9mm
• Stator Diameter: 11mm
• Stator Thickness: 4.0m
• Propeller: 3020 Direct Mount Propeller (5mm)
• Motor Weight: 5.3g

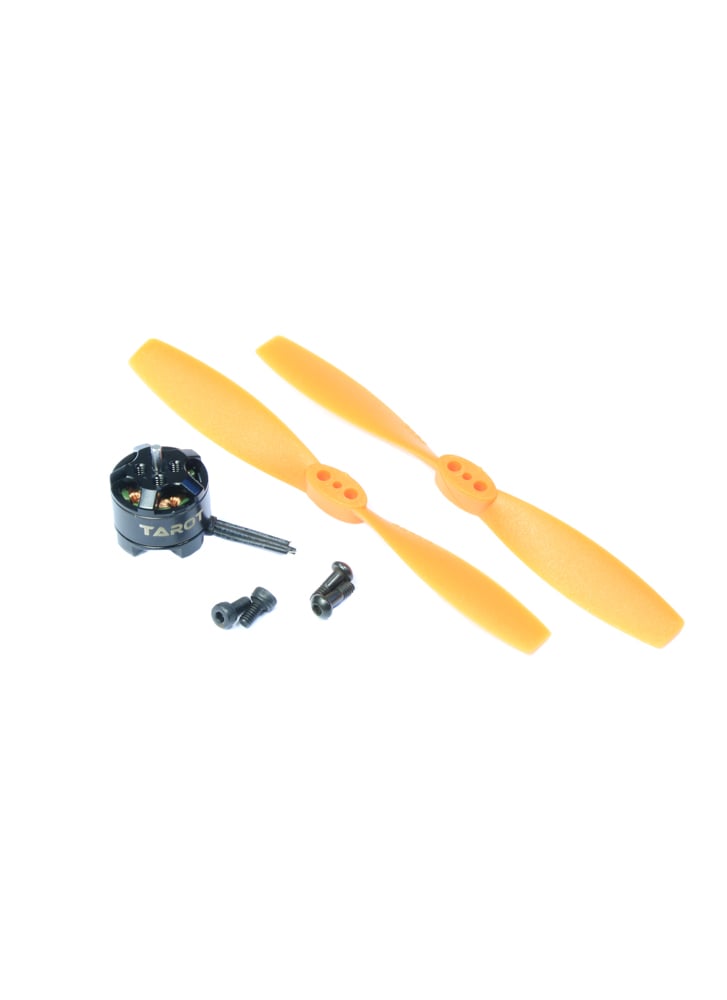

In the box

• 1 x Tarot MT1104 4000KV Brushless Motor
• 2 x M2x6M half-round head screw
• 2 x M2xM4 cup head hexagon screws
• 1 x 3″ 2 blade Propeller
