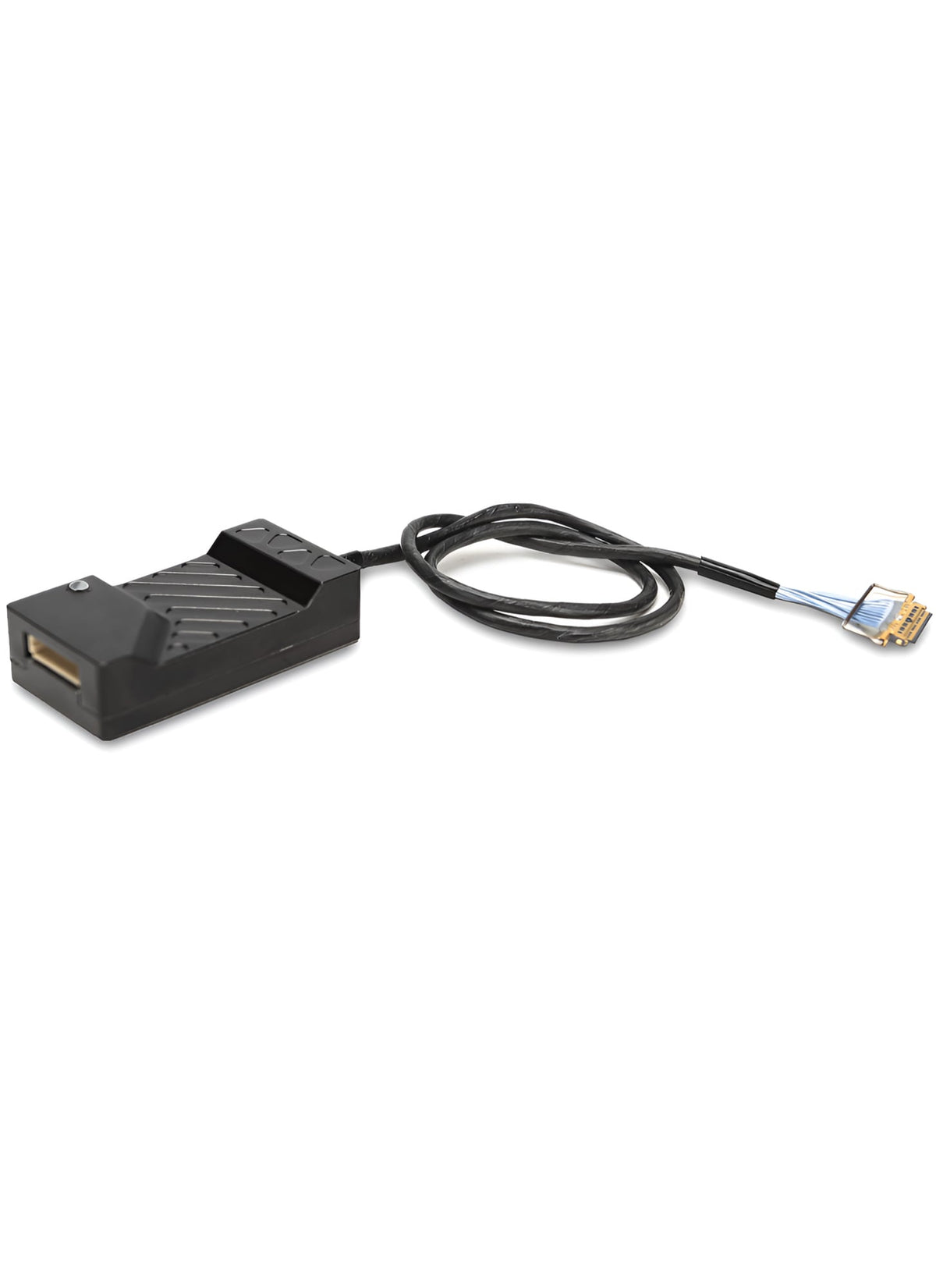

Tarot Analog AV to HDMI Converter – TL3504
£54.99
This handy little device converts an analogue AV signal input (both audio and video) into a digital audio video (AV) output via HDMI, ready to use with HDMI input monitors or HDMI video transmitters. Its HDMI output upscales the video output to 1080P or 720P (select via the switch).
The adapter needs to be powered. It is compatible with a 5-10V input.

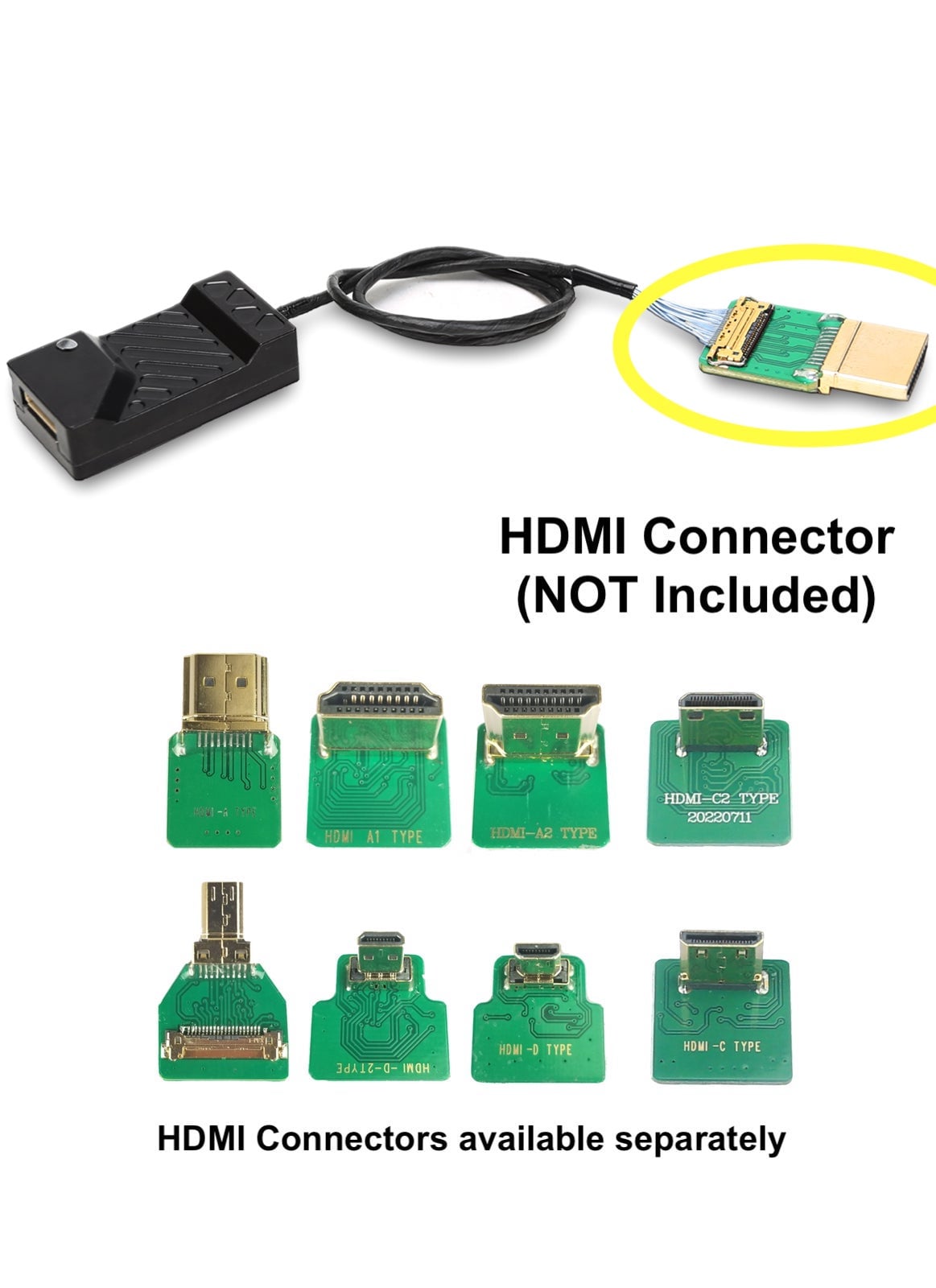

The device comes with a 300mm long, shielded HDMI video cable, but no HDMI connector. Please match with the Tarot TL10A11 series HDMI adapters to use. Also a longer HDMI cable (500mm) is available here .
Points To Note: 1: This device only support HDMI to AV one-way conversion. 2: How to use: Power on module power supply before HDMI video source. To power off, first cut off the video source power supply, and then cut off the module power supply.
We also sell a converter that converts in the opposite direction, HDMI to AV – HERE .
Specifications
- Input voltage: 5-10V
- Delay: 120 milliseconds
- Resolution: Support physical button 1080P/720P switching
- Output HDMI cable length: 300mm
- Operating ambient temperature: -20 to 50℃
- Size: 37.3mmx19.4mmx9.75mm
- Weight: 12g
- AV to HDMI module (cable length 300mm) ×1
- 1.0-8P single-ended cable/150mm ×1
- 3M adhesive ×1
