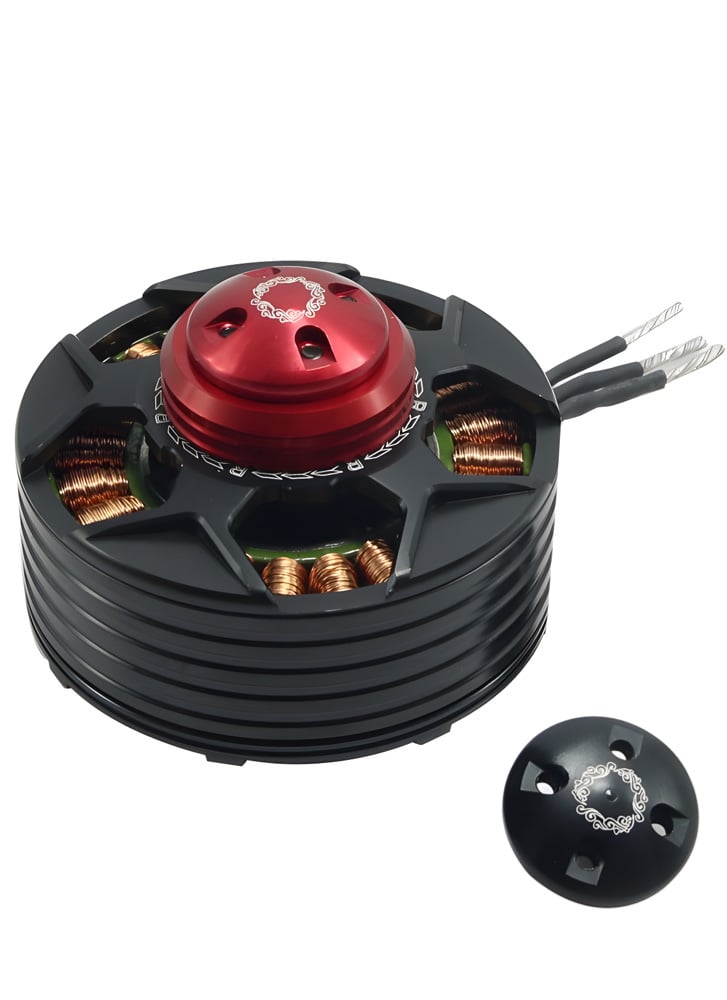

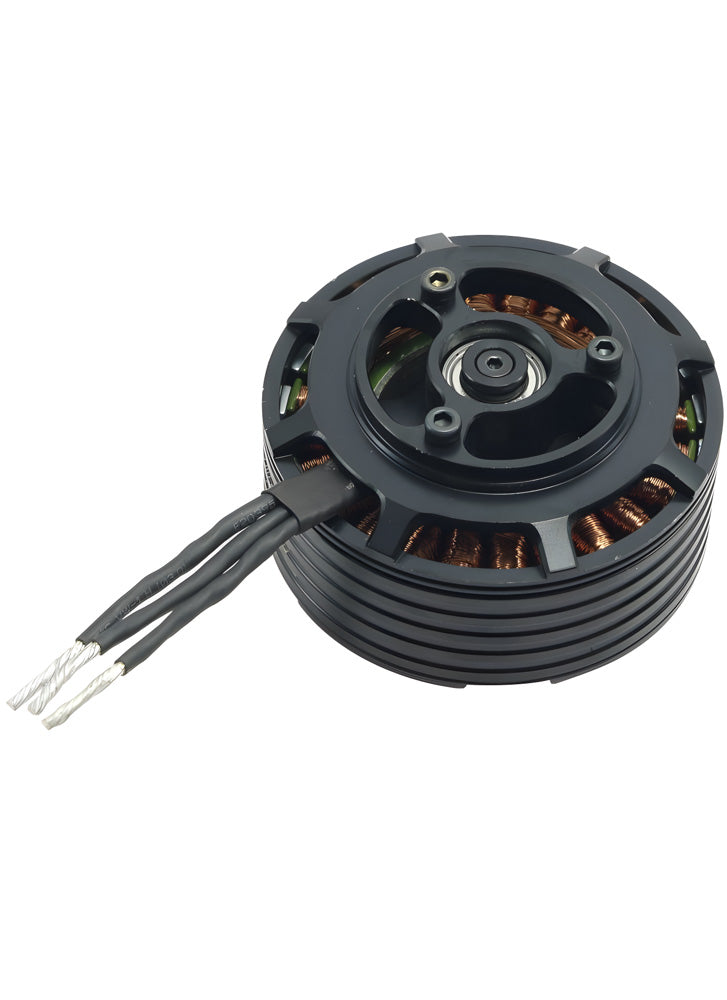

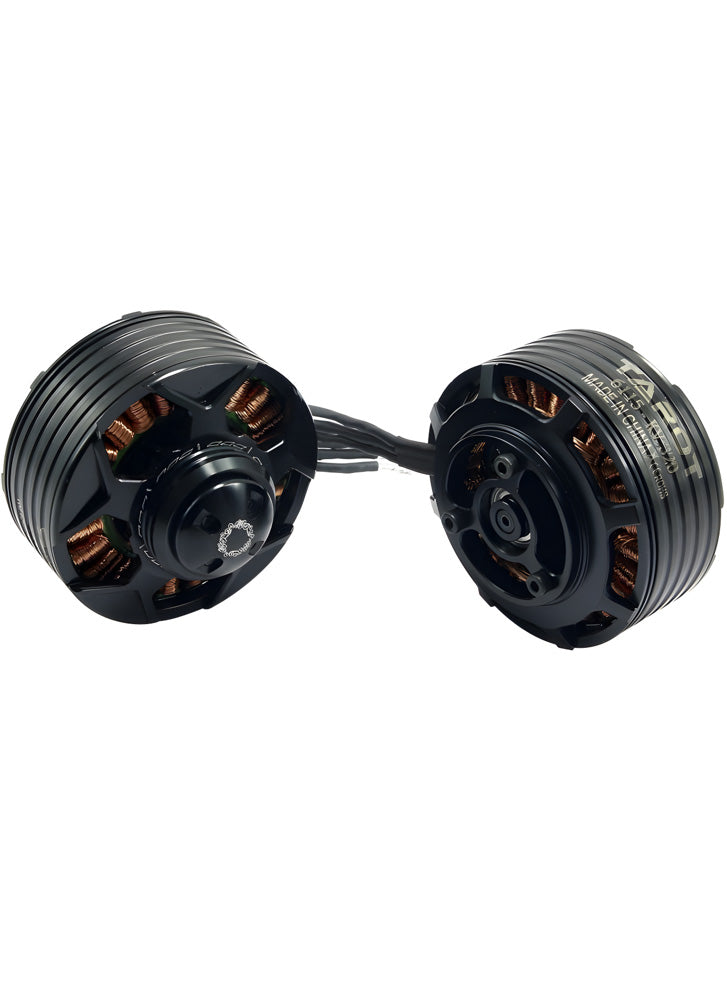

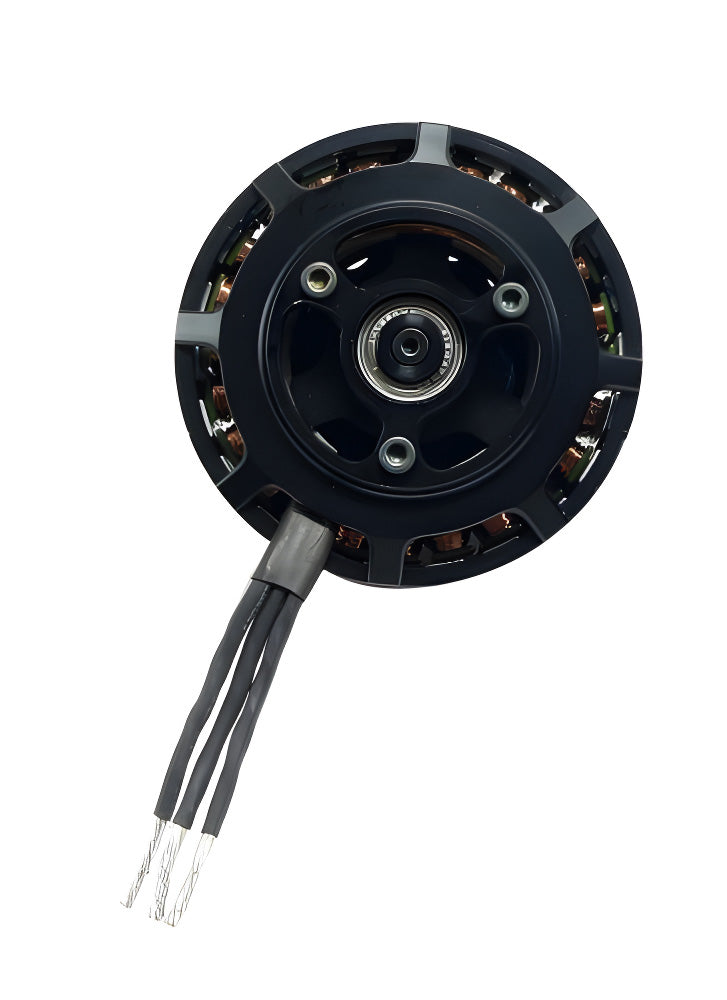

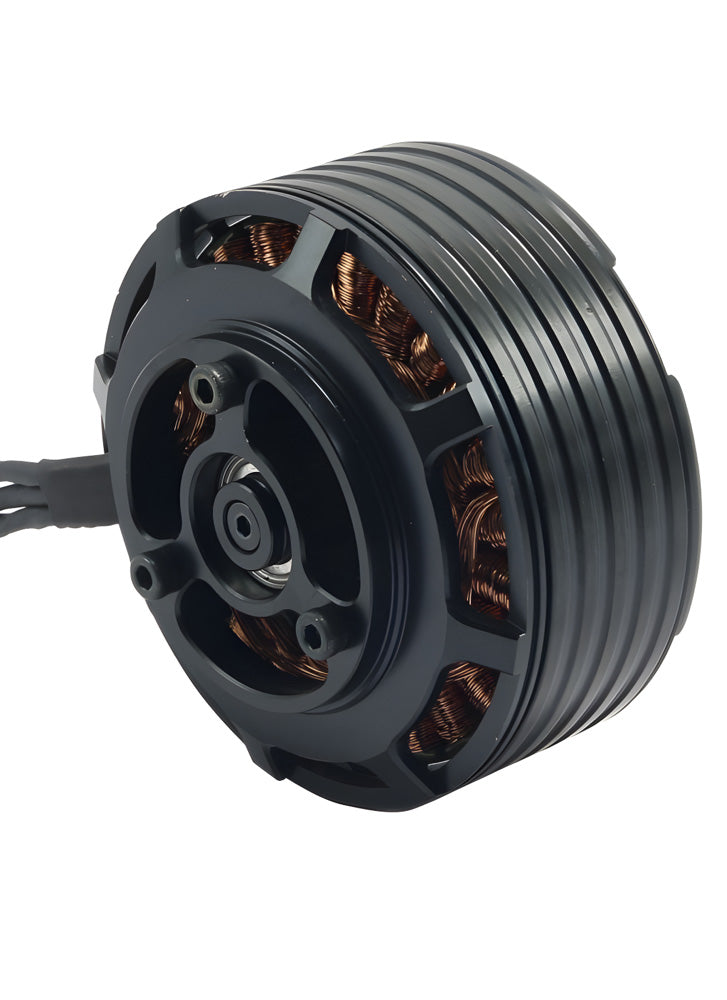

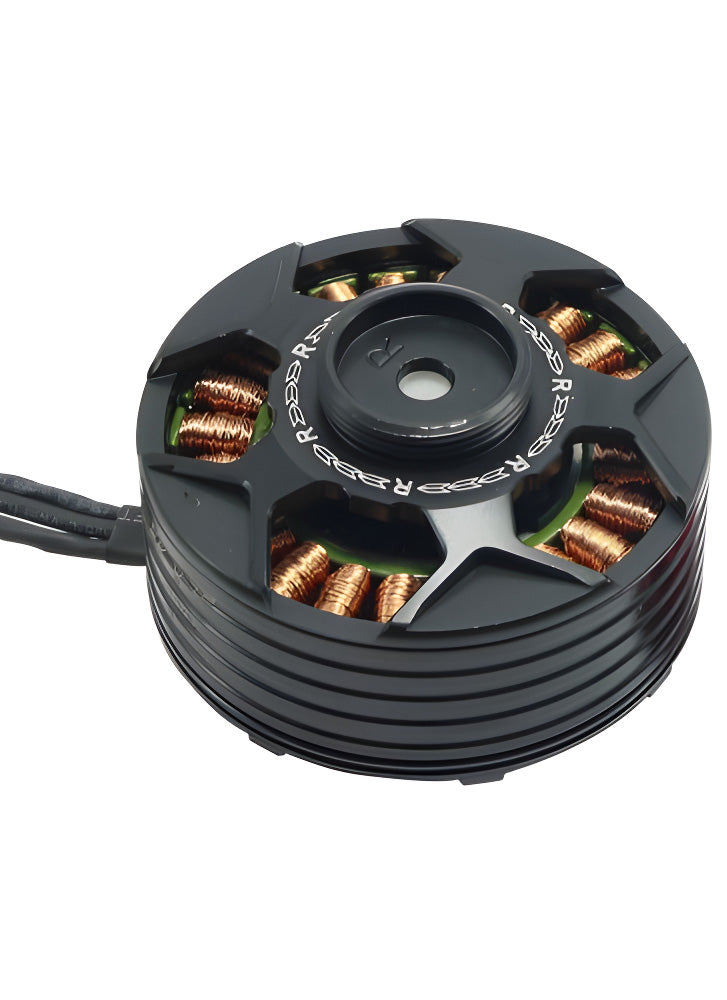

Tarot 6115 320KV 6S Multirotor Brushless Disc Motor – TL4X003/5
£92.50
6115 320KV 6S Multirotor Brushless Disc Motor is a high-efficiency motor designed for large multirotor platforms, including heavy-lift drones. With a maximum thrust of 5060g, it delivers the power needed for payload-heavy applications such as aerial photography, surveying, and industrial use. Compatible with 22- to 26-inch propellers, it features an integrated self-locking prop adapter for secure installation and easy removal. It supports 6S (22.2V) LiPo batteries and is engineered for smooth, stable performance with efficient cooling and low power consumption.

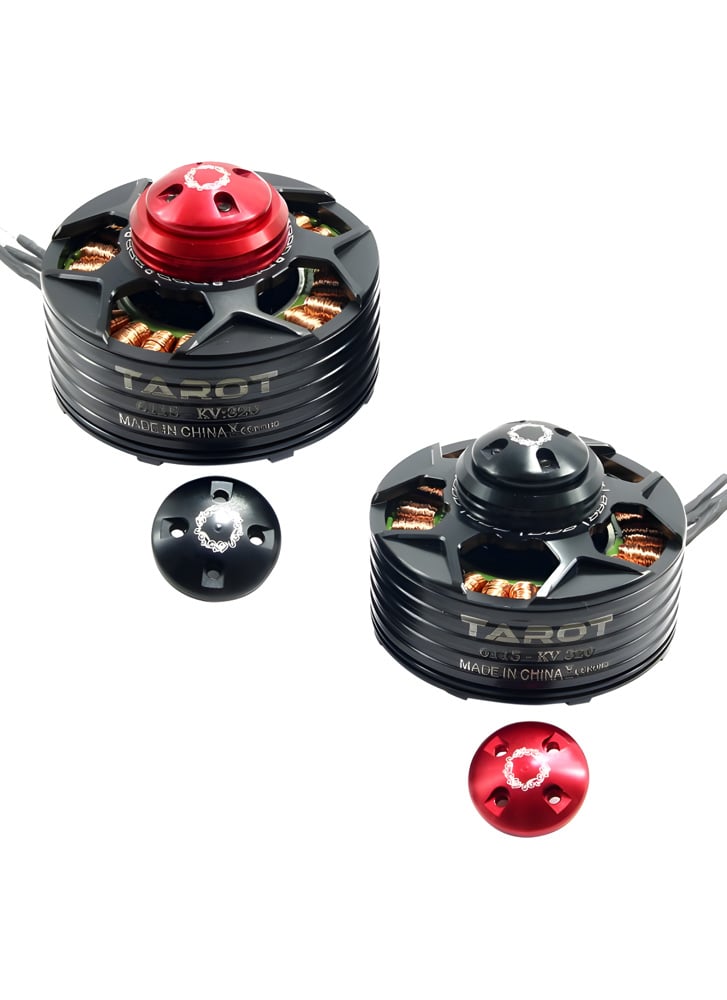

Please Note – the motors are sold individually. For a quad you will need 2x CW and 2x CCW.
Specifications
- Model: 6115 (TL4X003/5)
- KV: 320KV
- Power supply: 6s LiPo
- Motor diameter: 68.8mm
- Stator diameter: 61.5 mm
- Stator end Thickness: 15.0 mm
- Stator end number: 24N
- Motor Poles: 22P
- Diameter: 0.31mm
- Empty annexed 22.2V Current: 2.0 Amps
- Motor resistance: 126 mΩ
- Motor Weight: 312g
- Motor Length: 45.5 mm
- Motor axis full length: 36.0 mm
- Motor mounting pitch: 32MM
- 6115 Self-locking multicopter motor x1 315g
- Self-locking cover x1 8g
- Black fairing x1 6g
- Red fairing x1 6g
