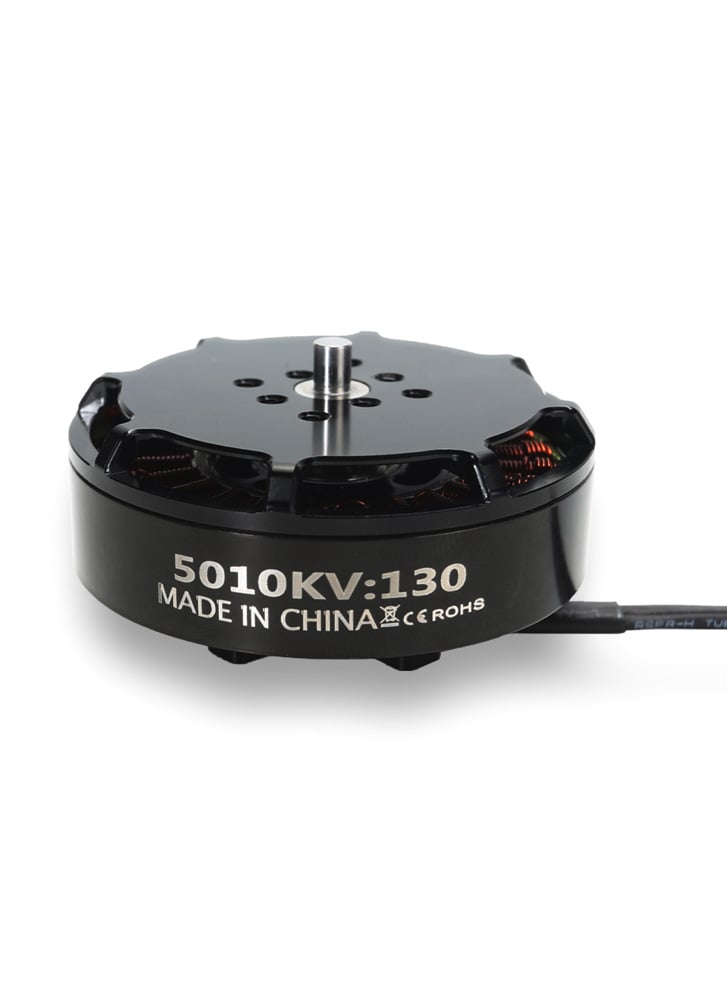

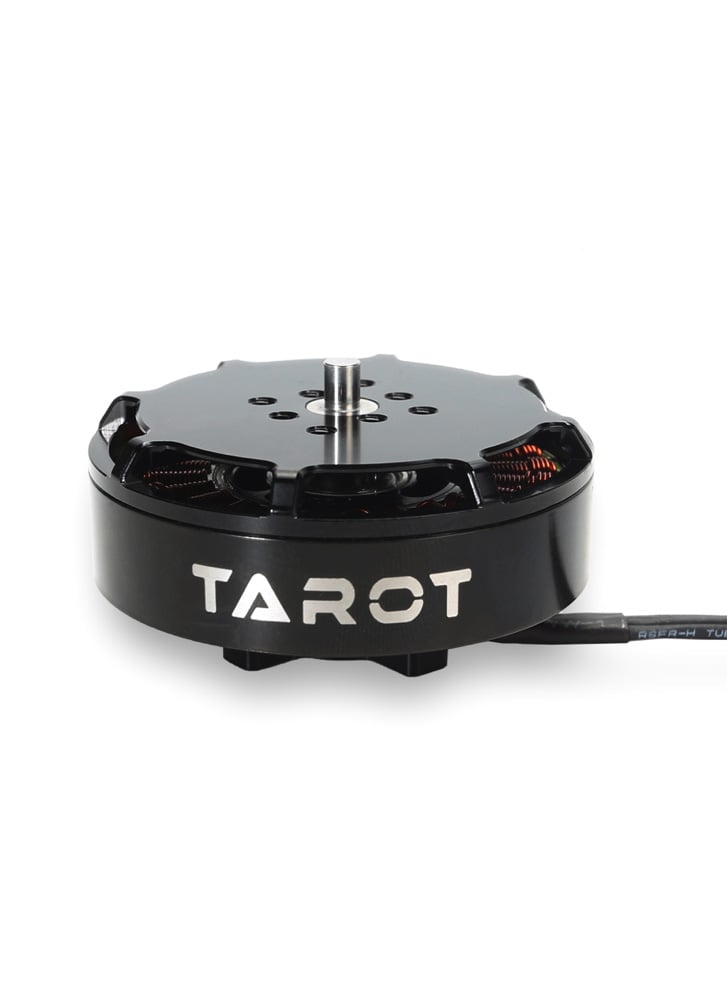

Tarot 5010 130KV 12S Multirotor Brushless Disc Motor – TL50M10
£49.99
Unlock new levels of stability and thrust with the Tarot 5010 130KV Disc Motor. Designed for professional-grade multirotors, this low KV motor is ideal for 12S setups where large propellers and high efficiency are key. With a 19-inch prop running on 12S, it can deliver up to 4800g of thrust at 16A, while maintaining solid efficiency at lower throttle levels for endurance-focused builds.

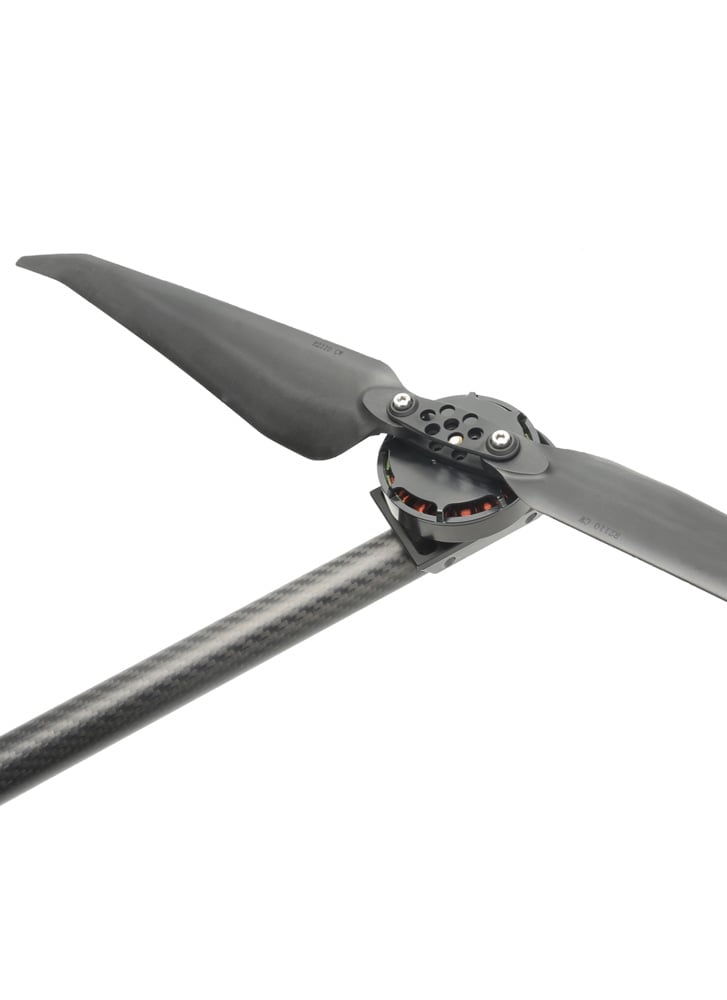

The motor features a wide recommended prop range of 19–21 inches, making it especially well-suited to larger airframes that need smooth, reliable power delivery. For the best performance, we recommend pairing it with Tarot’s Martin series carbon fibre folding propellers. These props are not only beautiful but are also engineered for maximum aerodynamic efficiency, helping you get the most out of every milliamp.
Just like its smaller sibling, the 5010 benefits from Tarot’s precision CNC manufacturing and a low-profile pancake design that contributes to a lower centre of gravity—enhancing flight stability. Weighing only 142g, it’s a powerful yet lightweight option for demanding aerial platforms.
Specifications
- Model: TL50M10
- KV: 130
- Stator diamater: 50mm
- Stator height: 10mm

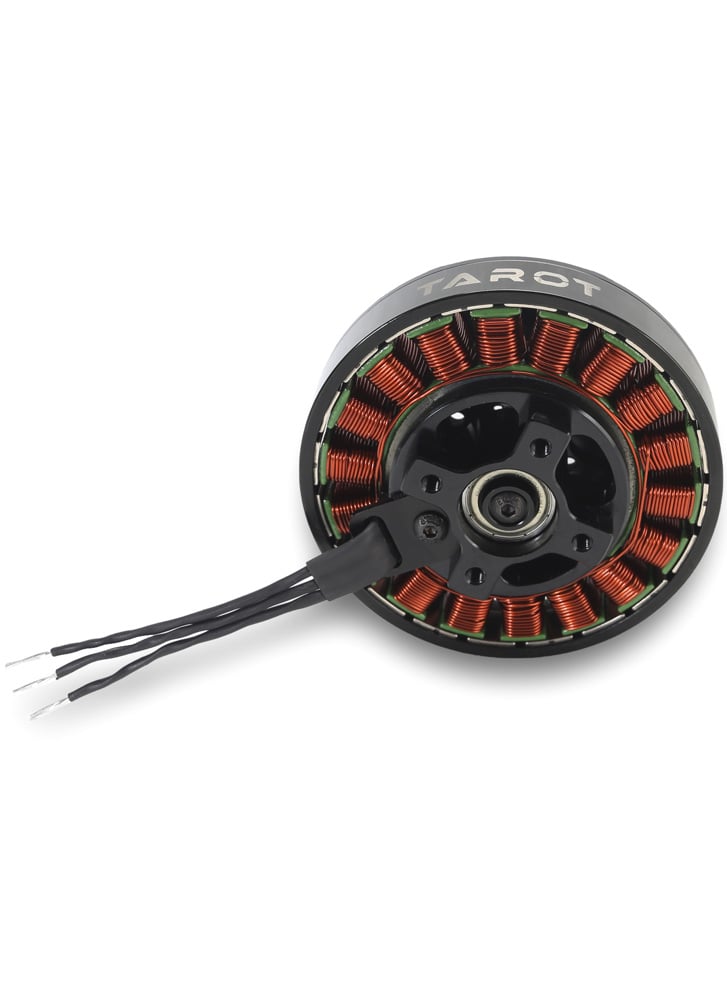

- Stator: 24N
- Poles: 28P
- Motor shaft: φ4mm
- Weight: 142g
- Idle current (A)@20V: 0.2A
- LiPo: 12S
- Max continuous current (A): 29.5A
- Mounting: 25mm symmetrical hole spacing
- Props mounting diameter: 12mm/15mm/18mm/20mm
- Recommended props size: 19-21 inch
- Fixings
In the box
- 1x Tarot 5010/130KV Motov Brushless Motor
- 1x Propeller Mount
