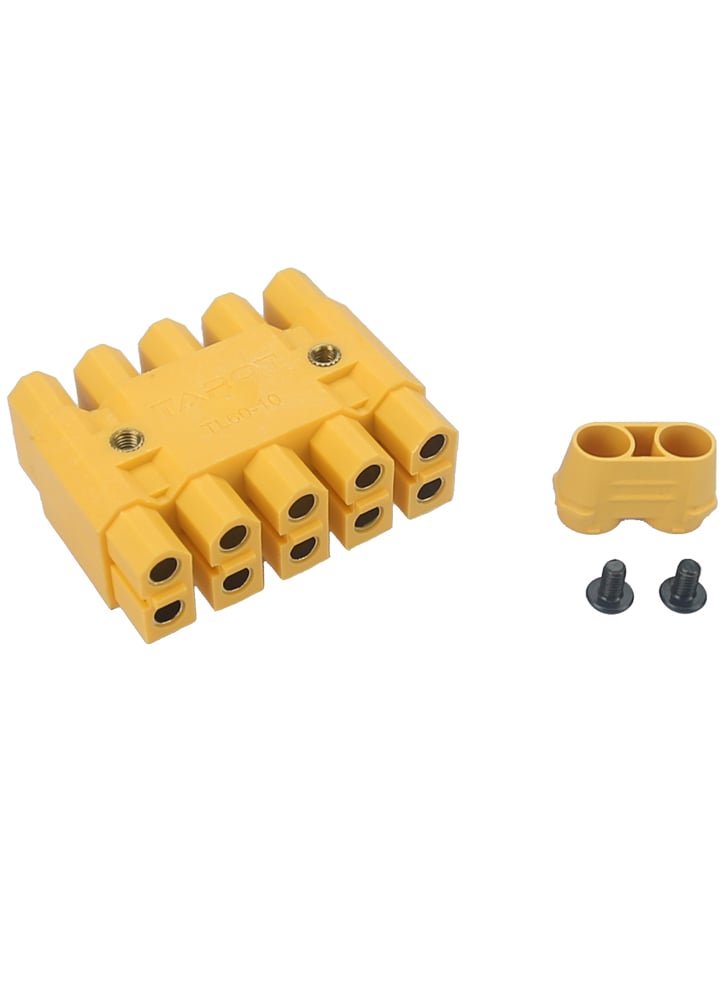

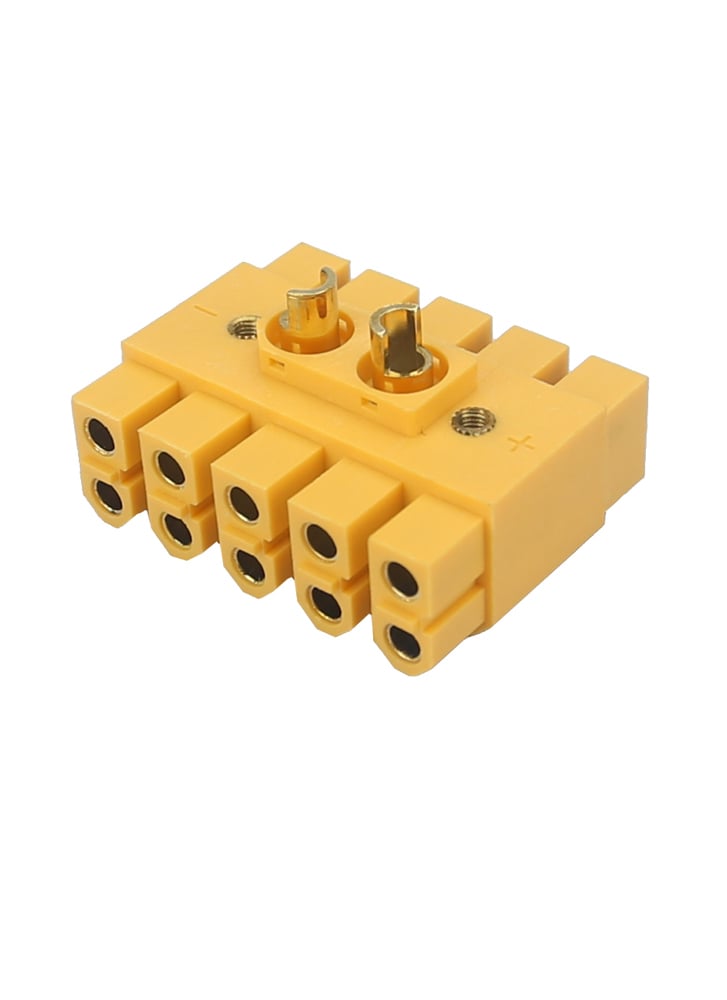

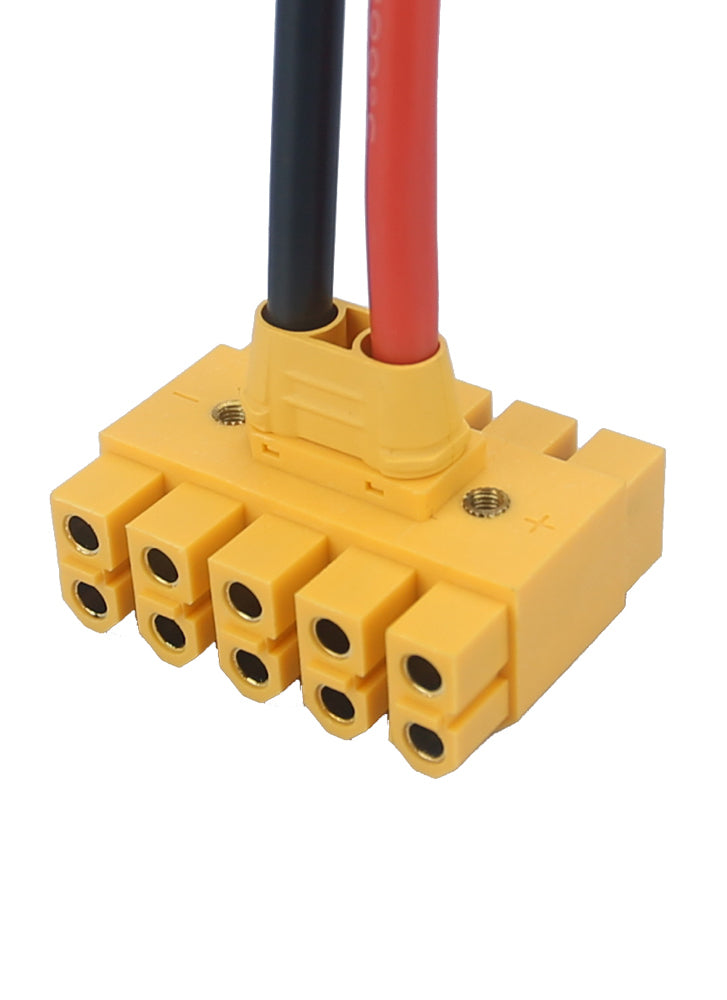

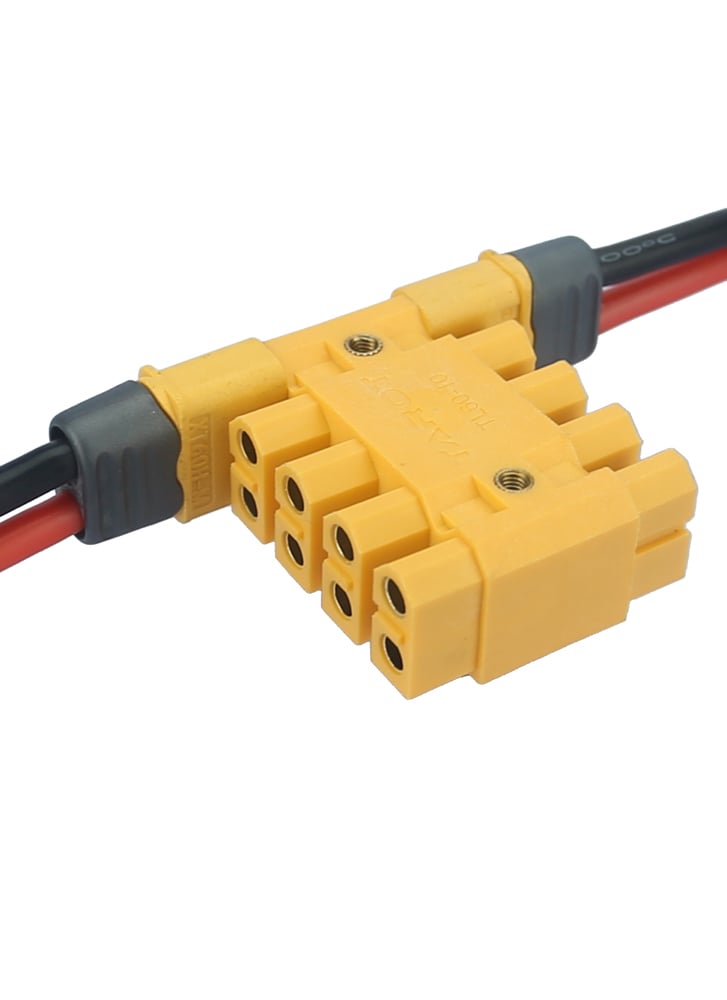

Tarot 200A Power Distribution Module Power Hub TL60-10
£19.90
This power hub from Tarot provides a very neat solution for ESC power distribution on medium and large drones. The power hub splits your power input 10 ways via XT60 style outputs. The hub has a solid copper core, which allows it to carry a high current load, up to 200A. It is easily mounted thanks to M3 threaded inserts.
Please note the power hub does not come with XT60 connections or wire for the input. We recommend using 8-10AWG silicone wire . Due to the internal solid copper construction which has a high heat absorption, it is recommended to use a >100W soldering iron .
We also sell a slightly smaller 8 output version and a 6 output version.
Features
- Current Rating: 200A
- Outputs: 10 x XT60 Female – compatible with XT60 Male
- Input includes protective sheath to prevent sock circuits
- Internal wiring uses solid copper one-piece structure
- Gold-plated plug contacts
- Single piece injection moulding design
- UL94V-0 flame retardant
Specifications
- UL94V-0 flame retardant
- Current Rating: 200A
- Size: 44x24x16mm
- Weight: 43g
- Hole Mounts: M3 spacing 27mm
- Power distribution module TL60-10 ×1
- Screws M3x5mm ×2
