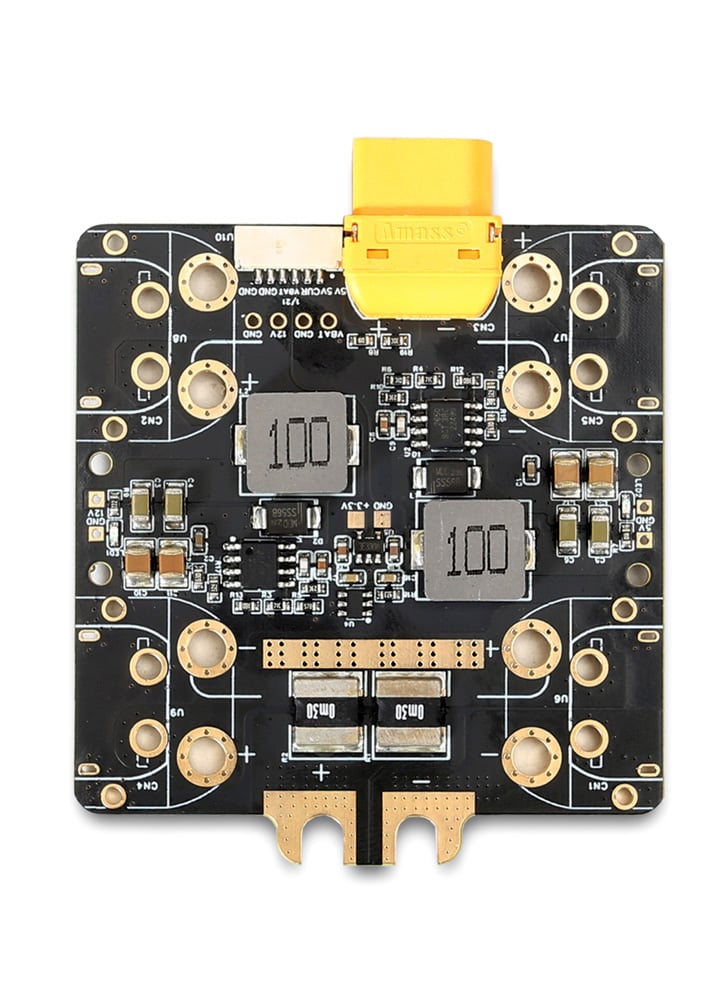

Tarot 100A 12S Quadcopter Power Distribution Board Hub with Voltage and Current Meter – TL3302

£34.70

Tarot TL3302 Power Hub offers a neat solution for wiring up a quadcopter. It serves the purpose of providing a stable power supply along with voltage/current monitoring to compatible open source flight controllers (FC) such as the Pixhawk, Pixhawk 4, HEX Cube, CUAV, or even BetaFlight compatible racing drone FCs. It also functions as a power distribution board for connecting speed controllers too. The outputs to the ESC have been designed for direct solder or to carry XT90-PW / XT60-PW connectors (not included).

The board accepts a wide input power supply of 8-60V (Up to 14S LiPo). It has a current rating of 100amps (burst rating 200A), which is split between four power output pairs, so suited to quadcopters. It provides a VBAT output via a pre-soldered XT60PW. It also has a regulated 5v output at 5amps which is intended to power compatible FCs. There is a further LC filtered power output that is split via two output connections that provides 12V at 4amps. This could be used to provide a clean power supply to FPV equipment or other auxiliary equipment.

For information regarding setting up Power Module with Mission Planner. Please refer to the Ardupilot Wiki Page.

Connection Cables: Please note, TL3302 does not come with a flight controller connection cable – available here .

TL3302 can be used with XT60 / XT90 PCB connections, available here: XT60PW / XT90PW .

Specifications

• Voltage input: DC8-60V
• Voltage output: 1 way Vbat voltage output self-soldering point
• 1 way 5V/5A BEC output self-soldering point (with LED indicator)
• 2-way 12V/4A (total) BEC output self-soldering point (with LED indicator)
• Integrate 1 Vbat voltage output of model XT60PW plug
• 1 way Vbat voltage output self-soldering point
• 1 way 5V/5A BEC output self-soldering point (with LED indicator)
• 2-way 12V/4A (total) BEC output self-soldering point (with LED indicator)
• Integrate 1 Vbat voltage output of model XT60PW plug
• Integrated 1 GH1.25-6P female socket,using the corresponding connecting cable can be directly connected to all types of flight control Power interface
• Construction: Six-layer board, 2oz copper thickness
• Current Rating: Ccontinuous current 100A, instantaneous current 200A
• Power output support direct silicone wire welding, XT90PW-F welding, XT60PW-F welding self-selecting output pads, three wiring output method at will
• Supported Controller: Pixhawk2.4.8, Pixhawk4, CUAV, HEX and all types of Pixhawk open-source flight control and Betaflight’s docking voltage and current meter detection
• Mounts: 11.2mm x 54.5mm fixed hole installation
• Size 60mm x60mm

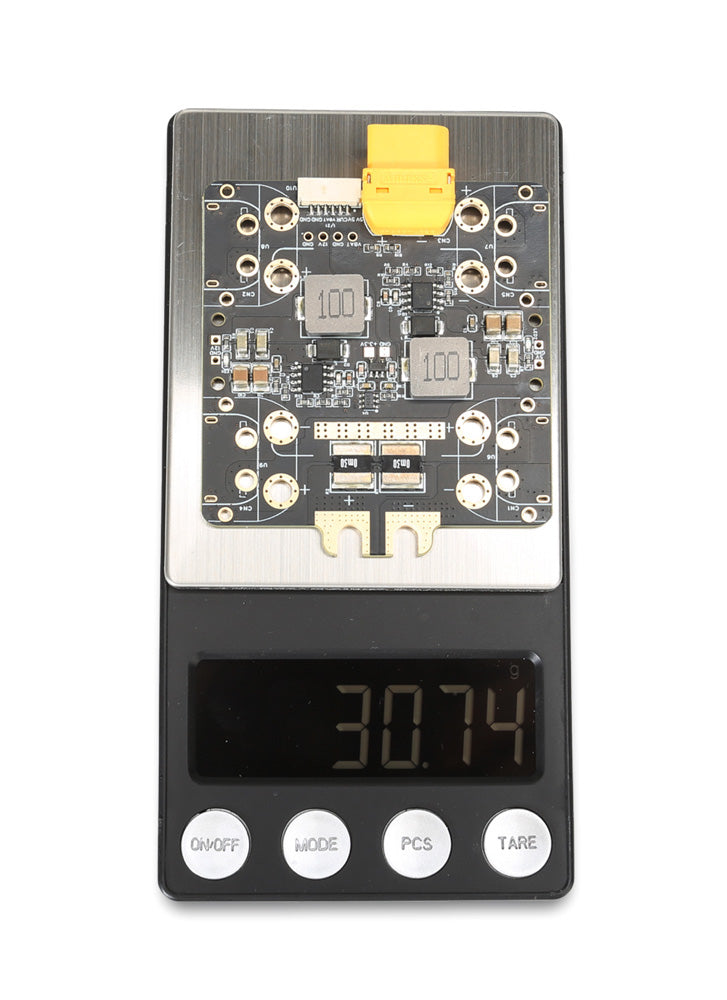

• Weight only 31g
• 100A PDB (TL3302) ×1

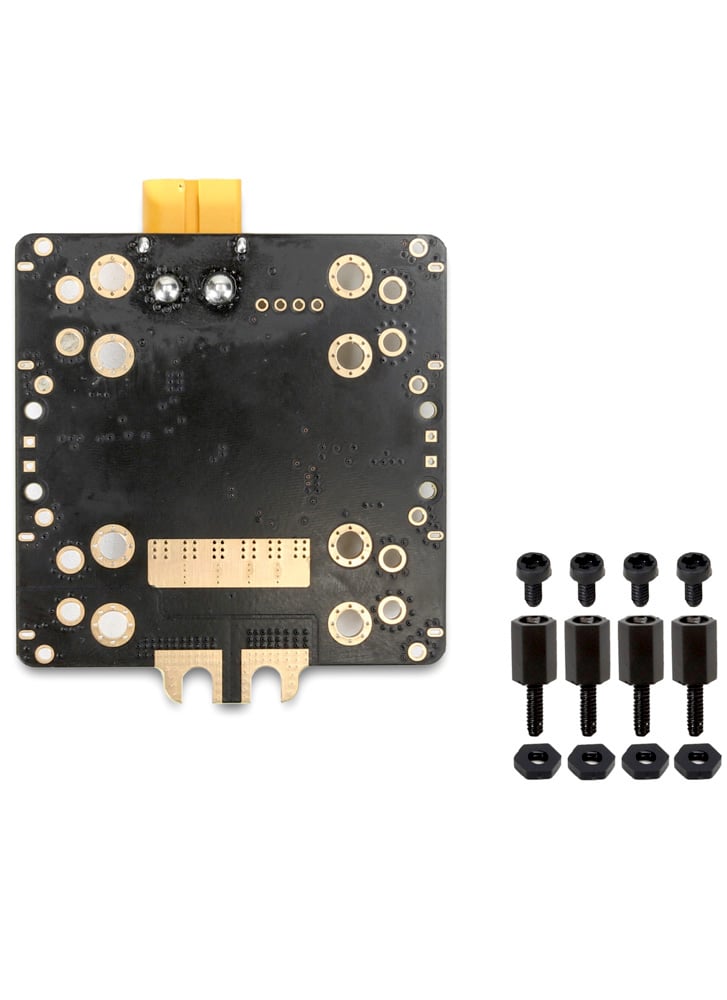

• Plastic fixing screws
