T-Motor MN4014 330KV Brushless Motor for Holybro X650 CW / CCW
£93.90

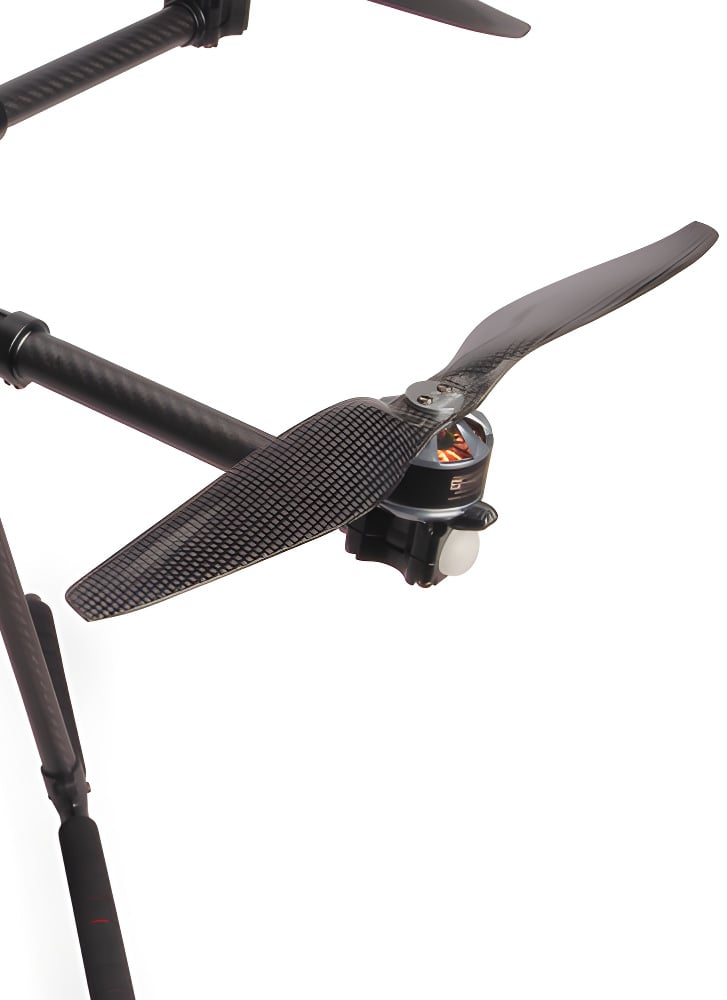

This is a versatile motor with a high thrust to weight ratio. It’s a fantastic choice for medium sized quadcopters / hexacopters and designed for use with Holybro’s X650 frame . The motor can be matched with a 15×5.5 prop.

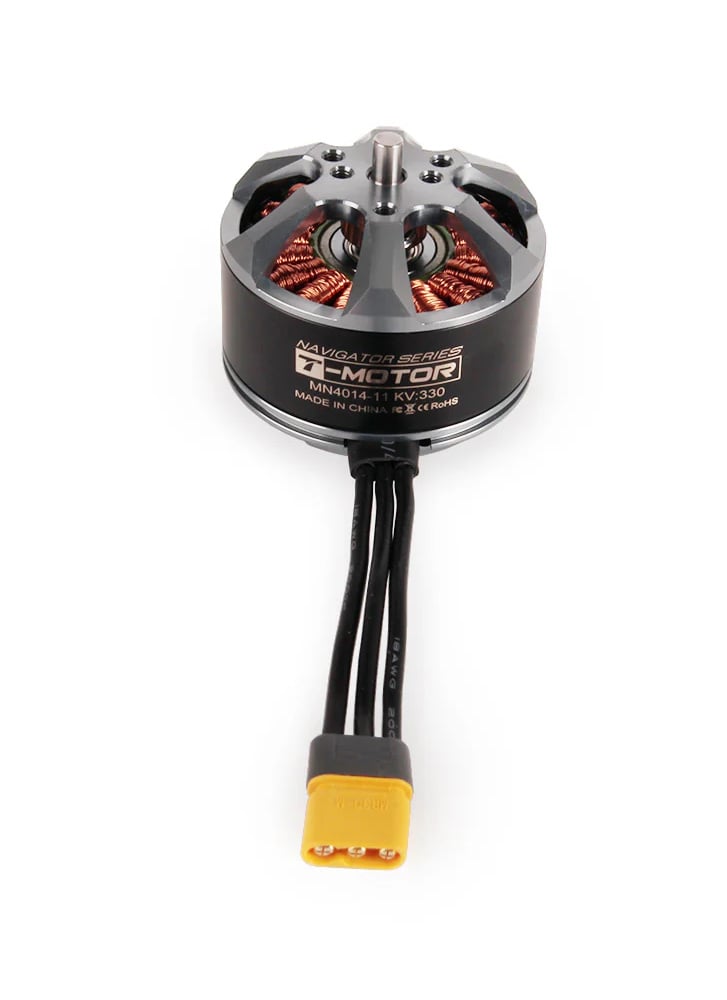

The motor comes with pre-soldered with a MR30 connection ready to plug straight into compatible ESC’s . Fixing screws not included (size M3).
Features
- Ideal to 3kg to 5.5kg quadcopter
- Can be used with 4-8S
- Recommended prop for Holybro X650 15×5.5 (compatible with 15-17inch)
Specifications
- KV………………………………………………………………………………………………….330 Configu ration………………………………………………………………………..18N24P Stator Diameter………………………………………………………………………..40mm Stator Length……………………………………………………………………………14mm Shaft Diameter……………………………………………………………………………4mm Motor Dimensions(Dia.*Len)…………………………………….Φ44.8×34.5mm Weight (g)……………………………………………………………………………………149g ldle current(10)@10v(A)……………………………………………………………….1.1A No.of Cells(Lipo)…………………………………………………………………………4-8S Max Continuous current(A)180S…………………………………………………..25A Max Continuous Power(W)180S……………………………………………….750W Max. efficiency current…………………………………………………….(3-10A)>84% internal resistance…………………………………………………………………….85mΩ
