Super Mini Ublox Neo-7 GPS for Naze32 Cleanflight / Betaflight

£13.99

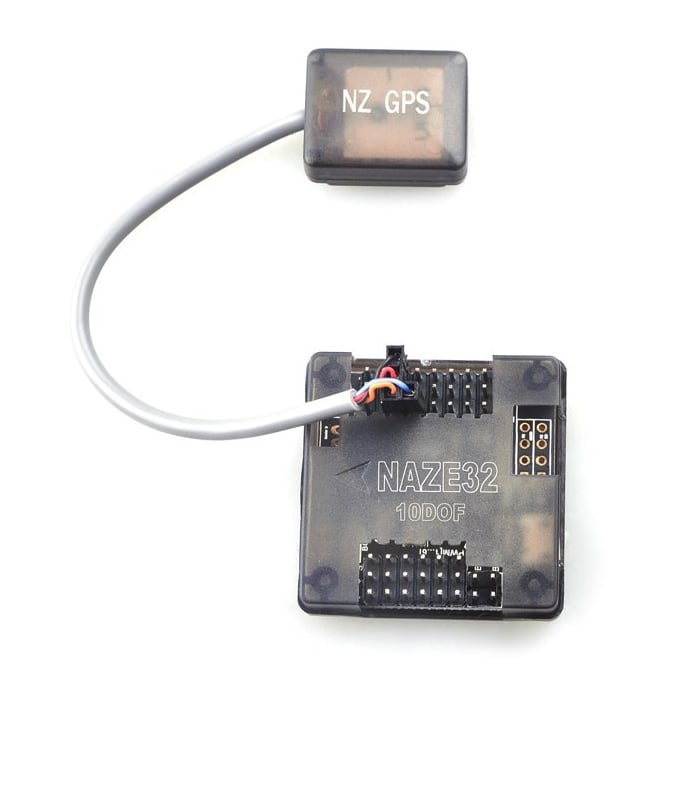

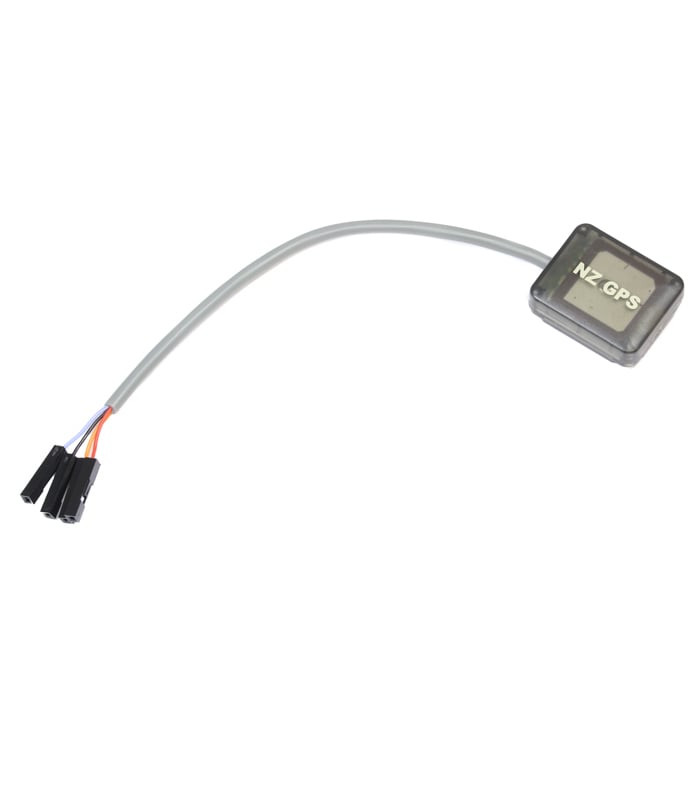

Add GPS flight modes to your mini quad with this tiny GPS module. The module is suitable for Cleanflight / Betaflight flight / iNav controllers such as the Naze32 FULL, note that your flight controller must have a barometer installed for the GPS functions to become available in Cleanflight. Alternatively, you can use the module to pass GPS data through to an OSD or via Telemetry. The GPS chip is based on the Ublox 7 design and the module comes in a hard shell measuring about the size of a postage stamp.

Please note that this GPS has been pre configured for cleanflight/betaflight flight controllers at 9600 baud. The settings on this module cannot be changed/altered.

Features

• Compatible with 10DOF Cleanflight / Betaflight flight controllers
• Internal Ublox 7 series chip core
• Super mini size, weight only 8g with protective case
• Great for 250 racing drones

Specifications

• Module: Ublox 7 Series
• Size: 26x21x9mm
• Weight: 8g
• Wire length: 12cm
• Connections: Black – GND (Ground) Red – VCC System main power supply voltage is +5V DC. Current consumption 55mA when active Blue – TxDA UART interface (3.3V logic Levels) – To flight controller Rx Orange – RxDA UART interface (3.3V logic Levels) – To flight controller Tx
• Black – GND (Ground)
• Red – VCC System main power supply voltage is +5V DC. Current consumption 55mA when active
• Blue – TxDA UART interface (3.3V logic Levels) – To flight controller Rx
• Orange – RxDA UART interface (3.3V logic Levels) – To flight controller Tx

In the box

• 1x NZ GPS
