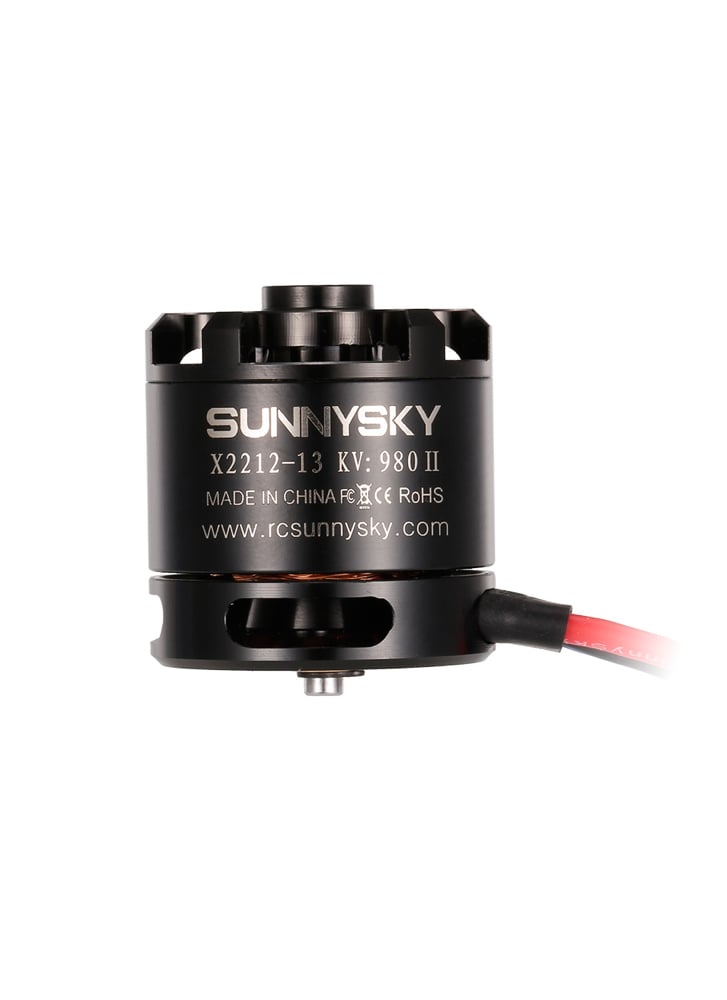

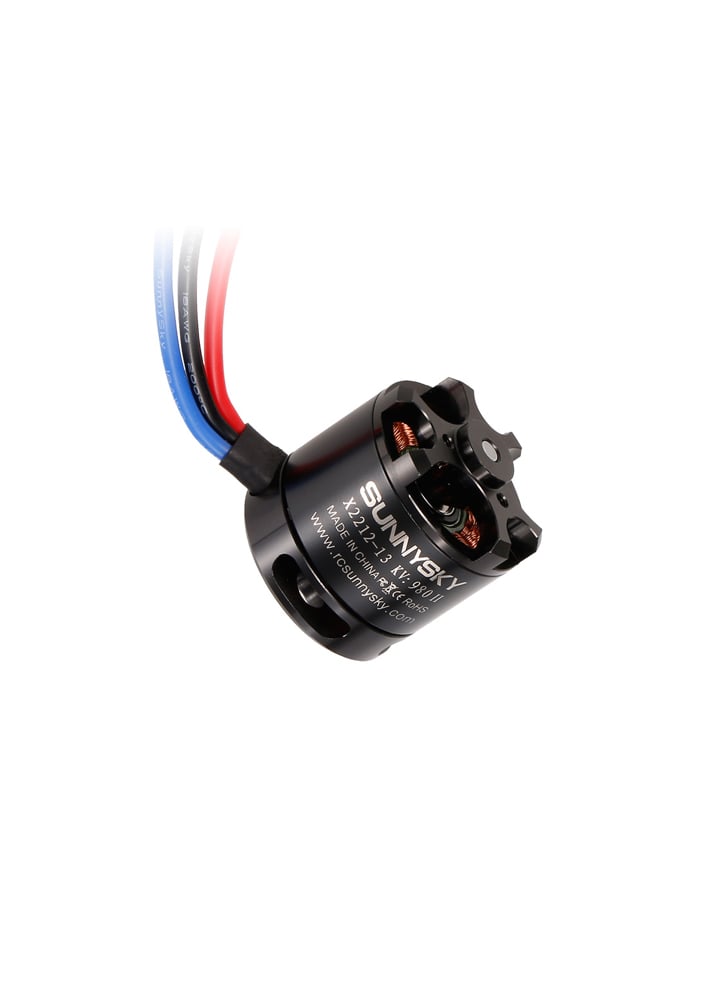

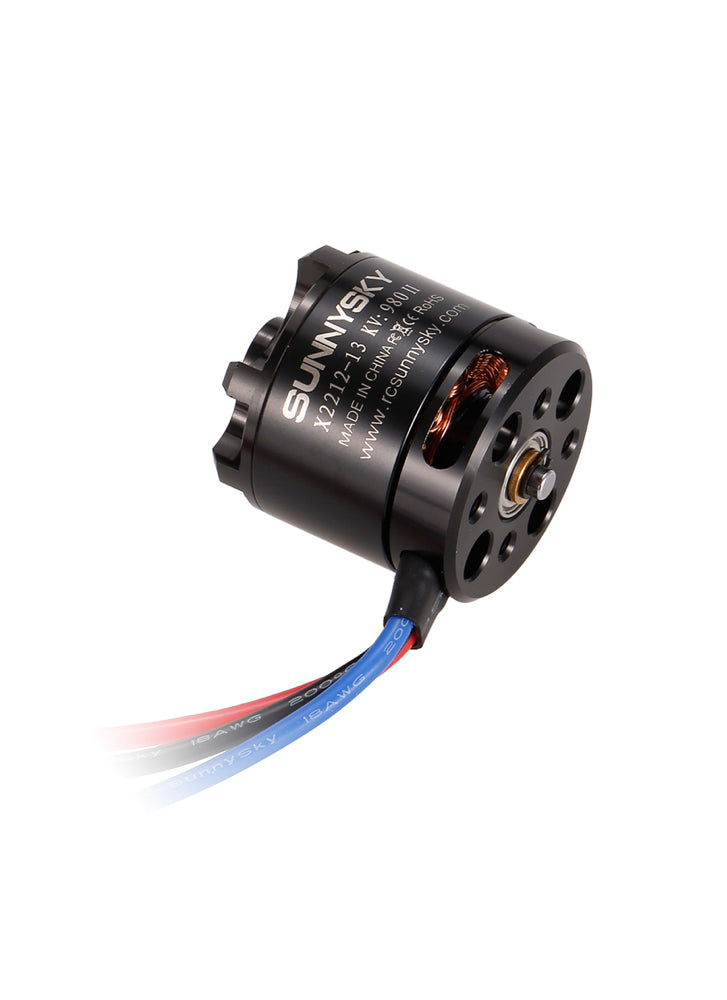

SunnySky X2212-13 980KV II 2-4S Multirotor Brushless Motor
£19.60
SunnySky motors offer good performance at an affordable price and are a very popular choice in both multi-rotors and airplanes.
The X2212-13 980KV is a versatile motor with a high thrust to weight ratio. It’s a popular choice for small to medium sized quadcopters and hexacopters, for example a F450 quadcopter or the TBS Discovery. They are matched well with 9-10inch propellers (9045/9047/1038/1047), and we’ve even seen people spin 11×4.5inch props on them on 3S.
The motor utilises quality components such as strong neodymium, high temperature magnets, a high-precision CNC machined shell, and top quality Japanese bearings. Furthermore the quality of construction matches that of the component selection; every motor is tested for concentricity and balanced for smooth running at the factory. The end result is a very smooth, powerful yet efficient, and crucially reliable brushless motor.
The motor comes with pre-soldered 3.5mm gold bullet connections ready to plug straight into your ESC’s. Also included is an accessory package with mount plate, bolt-on style 5mm prop adapter and set of fixing screws.
Features
- Stainless steel solid shaft The motor shaft is made of 420 stainless steel material imported from Japan. After heat treatment, the shafts are improved to high strength, excellent ductility, and better resistance to bending and breaking.
- 6061-T6 Aviation aluminum alloy Top and bottom caps are made of high strength 6061-T6 aviation aluminum alloy, with high hardness and high strength of extension, which can ensure reliable performance of motors.
- Imported NMB bearings X series uses customized NMB mini bearings imported from Japan, which provide longer life, quiet and stable operation of these motors.
- Hand wound The coils of X motors are all hand wound. This manufacturing procedure costs much more in labor, but makes the coil tight, neat, better coil space factor, and can increase the continuous power output of motors.

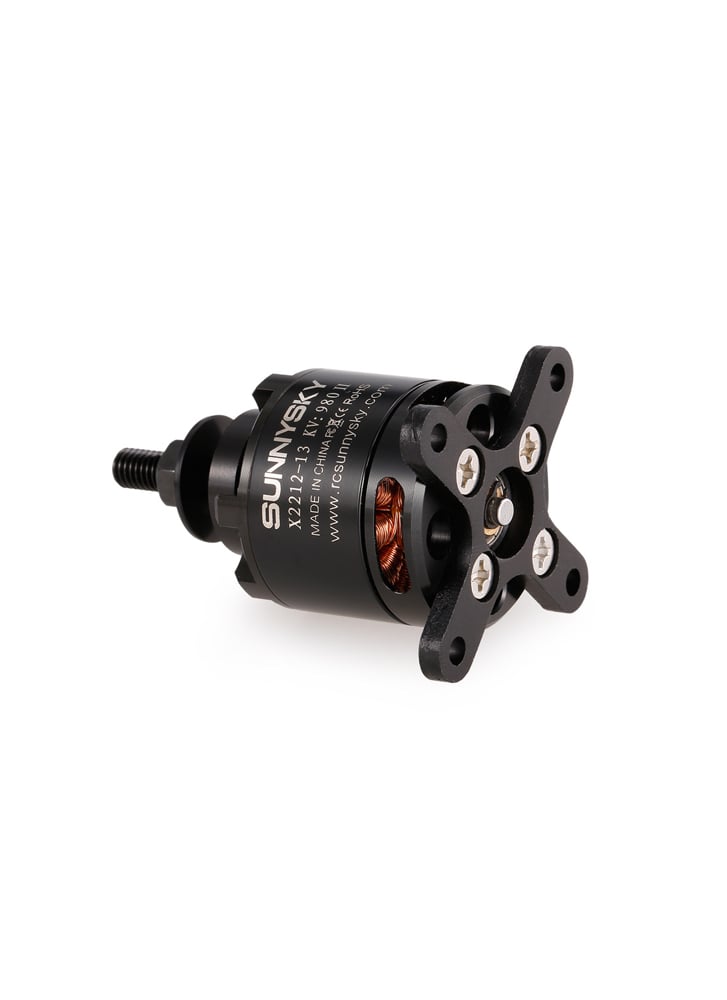

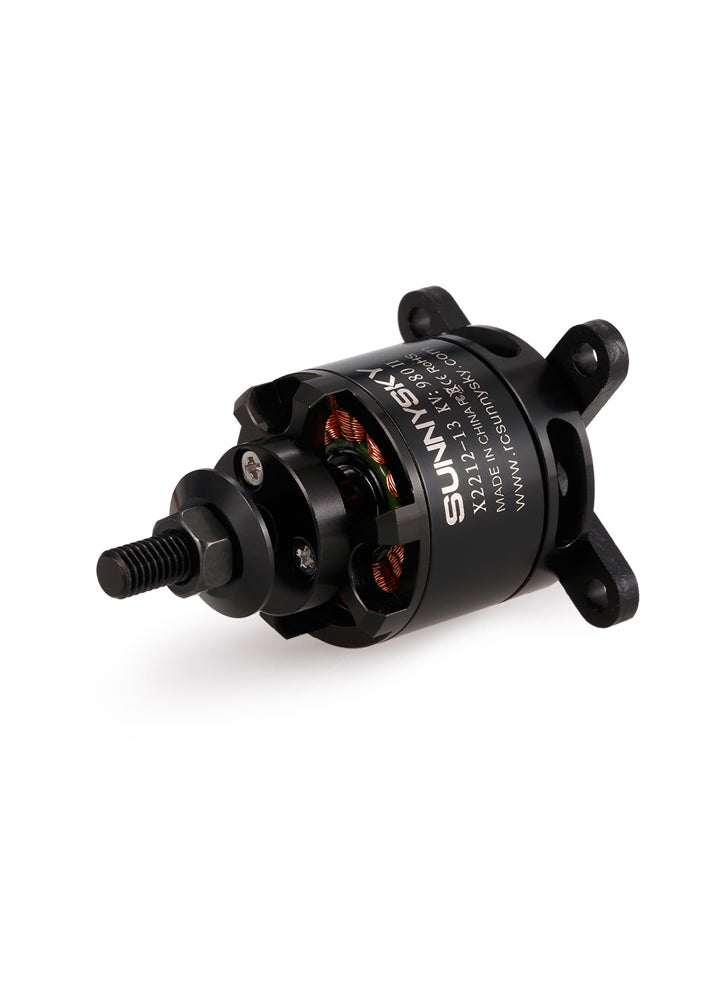

5MM Prop Adapter and Fixings are included:
Specifications
- Stator diameter: 22mm
- Stator thickness: 12mm
- No. of stator arms: 12
- No. of rotor poles: 14
- KV (rpm/min): 980KV
- No-load current: 10V/0.3A
- Motor resistance: 133mΩ
- Max continuous current: 15A/30S
- Max continuous power: 300W
- Max pull: 1020g
- Rotor diameter: 27.5mm
- Shaft diameter: 3.175mm
- Body length: 30mm
- Overall shaft length: 32.5mm
- Max Lipo cell: 2-4S
- Prop adaptor Shaft Diameter(mm): 5
- Recommended ESC: 20A
- Motor weight: About 57g/pcs
- Sunnysky X2212 980KV II Motor
- Motor Accessory Set
