SpeedyBee Nano 915MHz ExpressLRS ELRS Receiver
SpeedyBee Nano 915MHz ExpressLRS ELRS Receiver

SpeedyBee Nano 915MHz ExpressLRS ELRS Receiver

£11.80

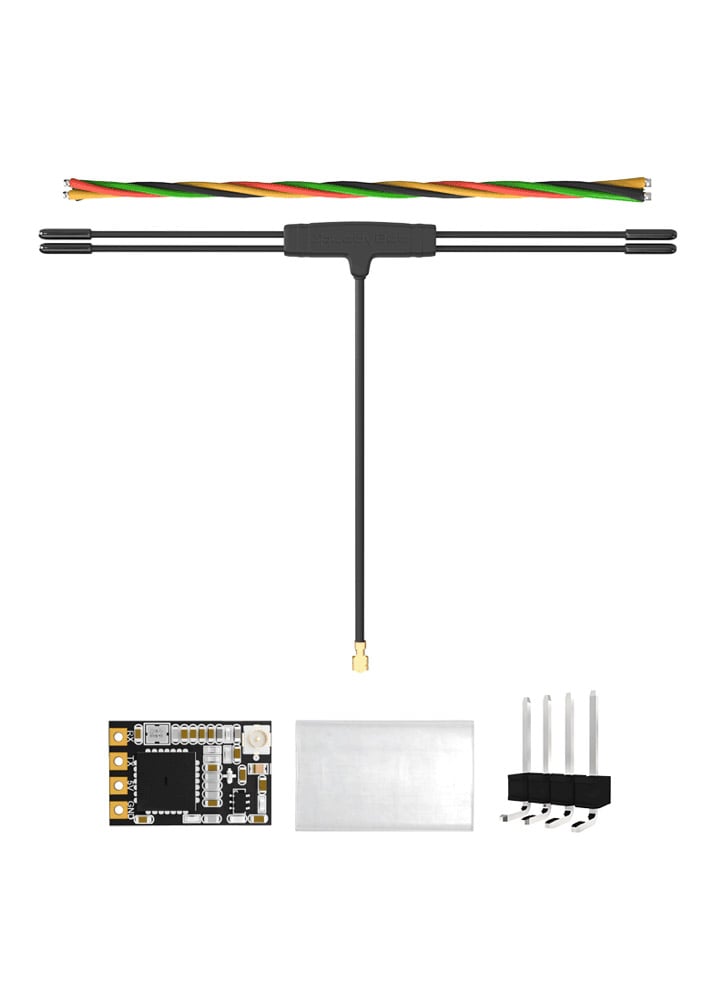

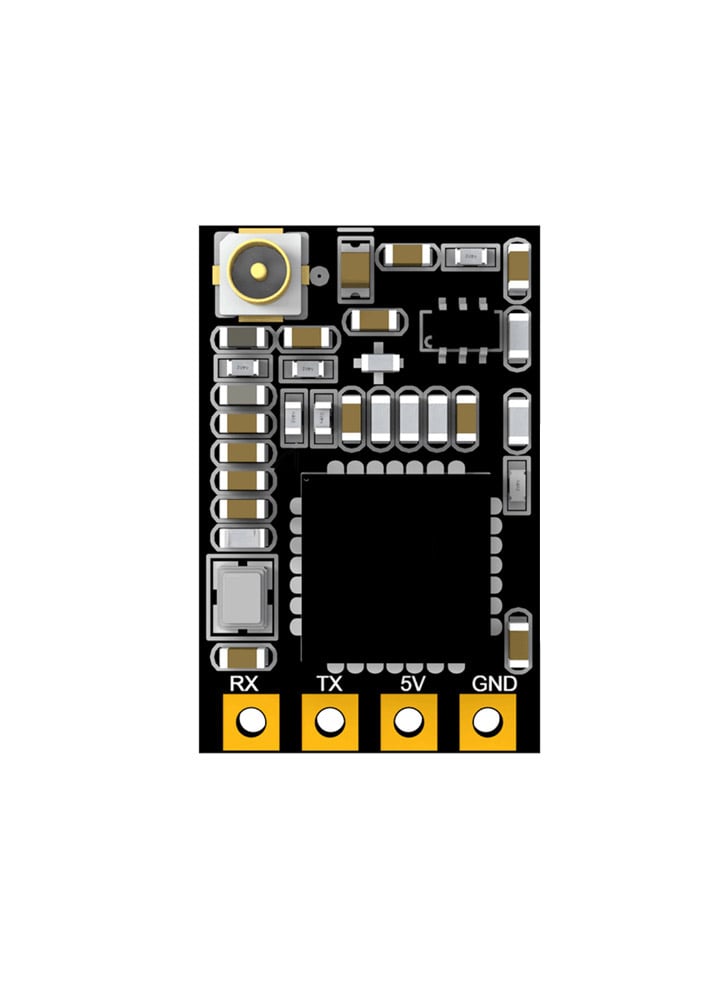

This Nano ELRS receiver from SpeedyBee offers excellent performance at an unbeatable price. The receiver is powered by an SX1276+ESP8285 chip. The Rx can transmit at a power of 50mW. It is very compact, measuring just 11mm by 17mm and weighing a mere 0.7 grams without the antenna. It is supplied with a T-antenna.

In comparison to a 2.4G ELRS receiver, 915MHz will achieve even greater range and has better signal penetration through trees, walls and other obstructions.

Please note this receiver won’t bind with a 2.4GHz ELRS transmitter, it must be a 915MHz/868MHz radio. For SpeedyBee’s 2.4G ELRX Nano receiver please see here .

Light indicator:

Double red blinking: Binding

Slow red blinking: powering up but unlinked, no packages received from the transmitter

Solid red: receiver is connected, with signal received

Fast red flashing: Wi-Fi is turned on, and updating via Wi-Fi is available

​(Tip: To turn on Wi-Fi, wait for 60 seconds after powering on or long press button for 3 seconds. To enter binding mode, power cycle Rx 3 times)

Specifications
