SpeedyBee Nano 2.4G ExpressLRS ELRS Receiver with PA & LNA
£11.80
This Nano ELRS receiver from SpeedyBee offers excellent performance at an unbeatable price. The receiver is powered by an SX1280+ESP8285 chip and features PA (Power Amplifier) & LNA (Low-Noise Amplifier) to further boast signal reception and telemetry range. The Rx can transmit at a power of 100mW. It is very compact, measuring just 10.4mm by 18.4mm and weighing a mere 0.7 grams without the antenna. It is supplied with a T-antenna.
Light indicator:
Double red blinking: Binding
Slow red blinking: powering up but unlinked, no packages received from the transmitter
Solid red: receiver is connected, with signal received
Fast red flashing: Wi-Fi is turned on, and updating via Wi-Fi is available
(Tip: To turn on Wi-Fi, wait for 60 seconds after powering on or long press button for 3 seconds. To enter binding mode, power cycle Rx 3 times)
Specifications
- Name: ExpressLRS Receiver
- Frequency: 2.4Ghz

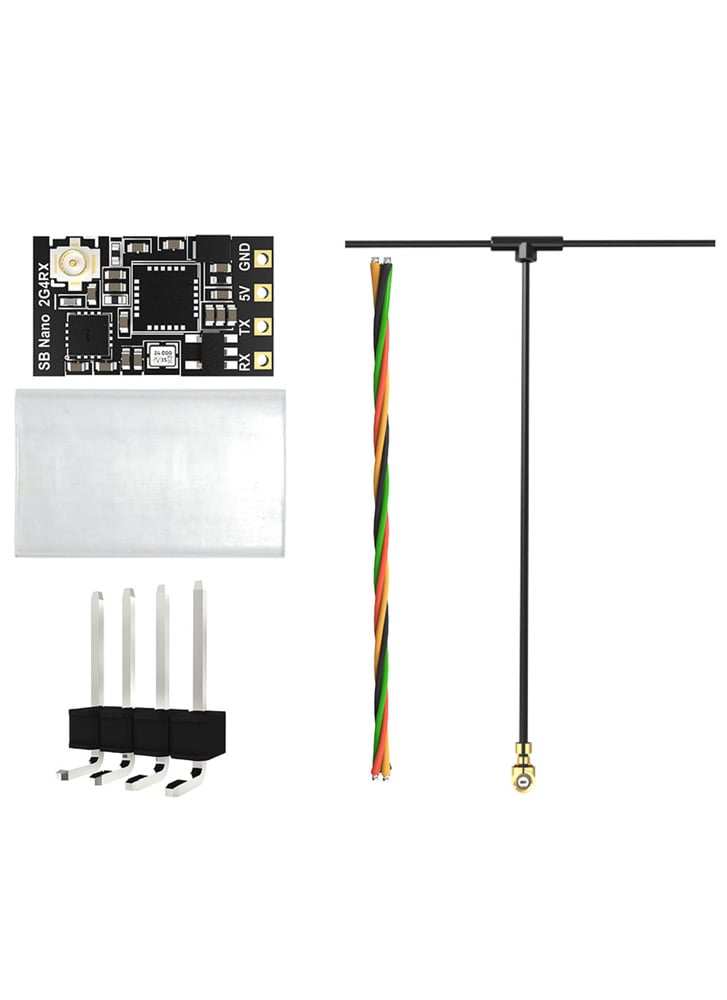

- Antenna: T-antenna (54x78mm, 0.6g)

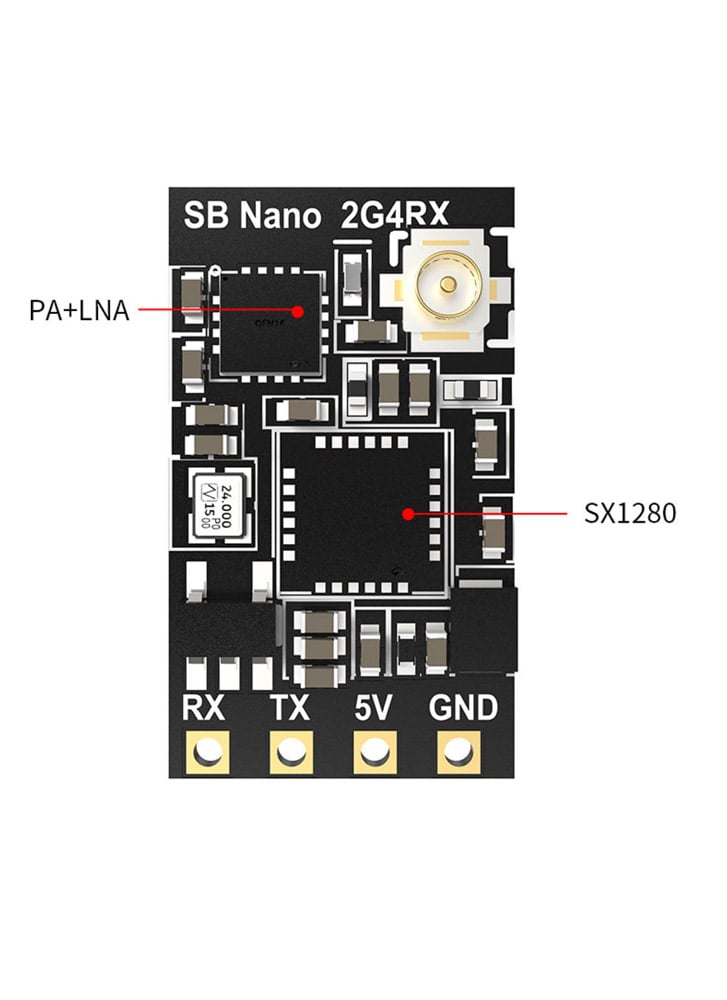

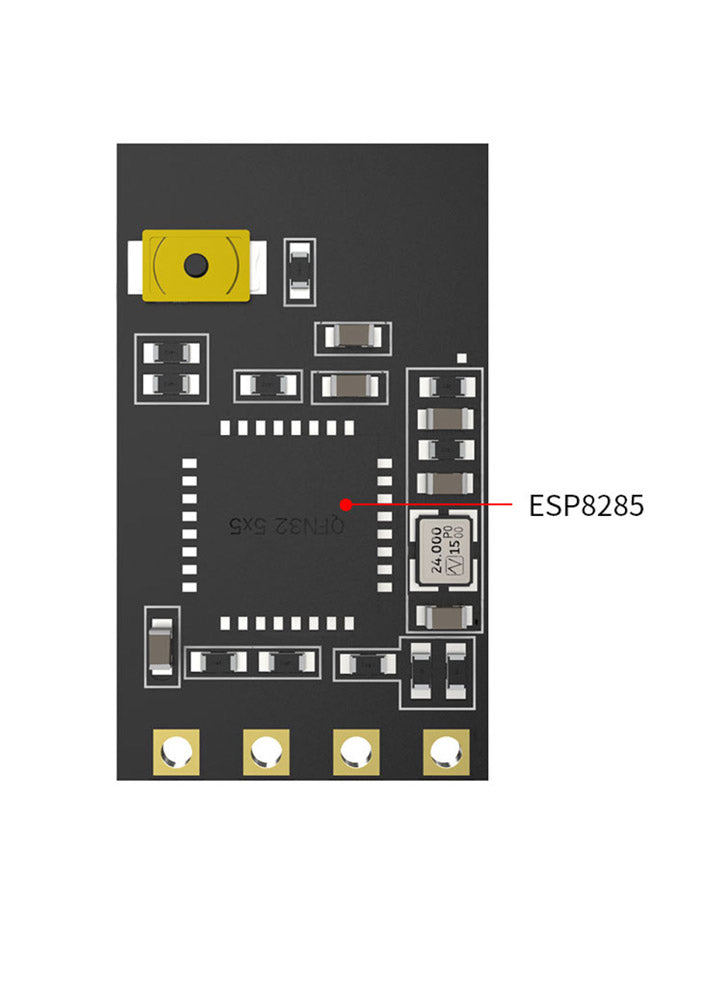

- Chip: SX1280+ESP8285
- Power: 100mW
- Input voltage: 5V
- Antenna connector: IPEX1
- Weight: 0.7 gram(without antenna)
- Dimension: 10.4mm*18.4mm
- Default Firmware: SpeedyBee Nano 2.4GHz RX 3.3.1
