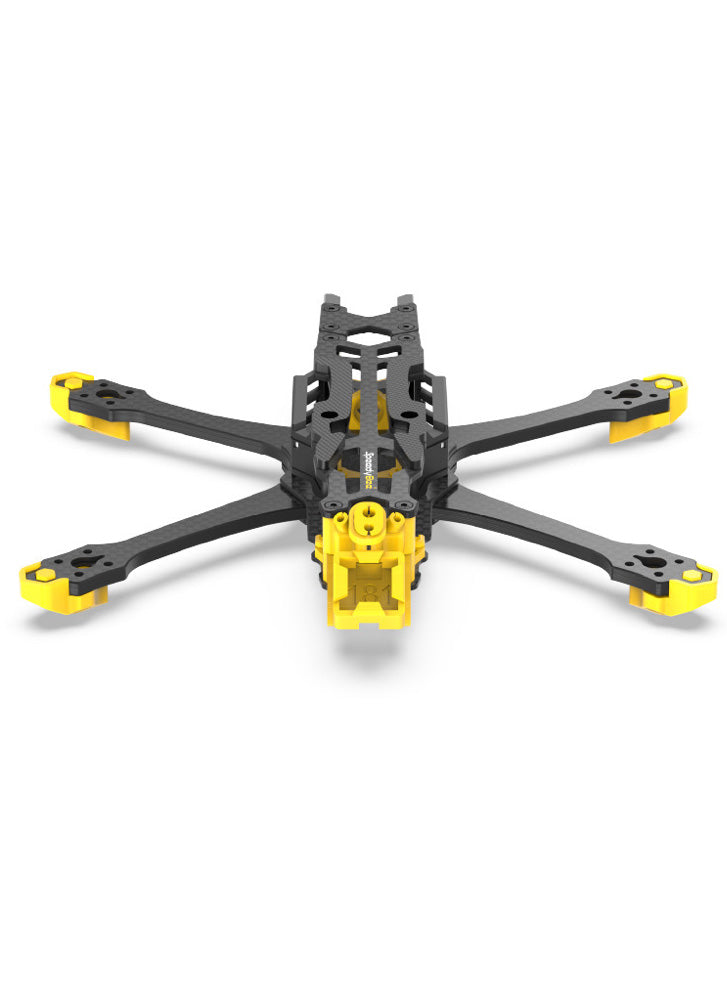

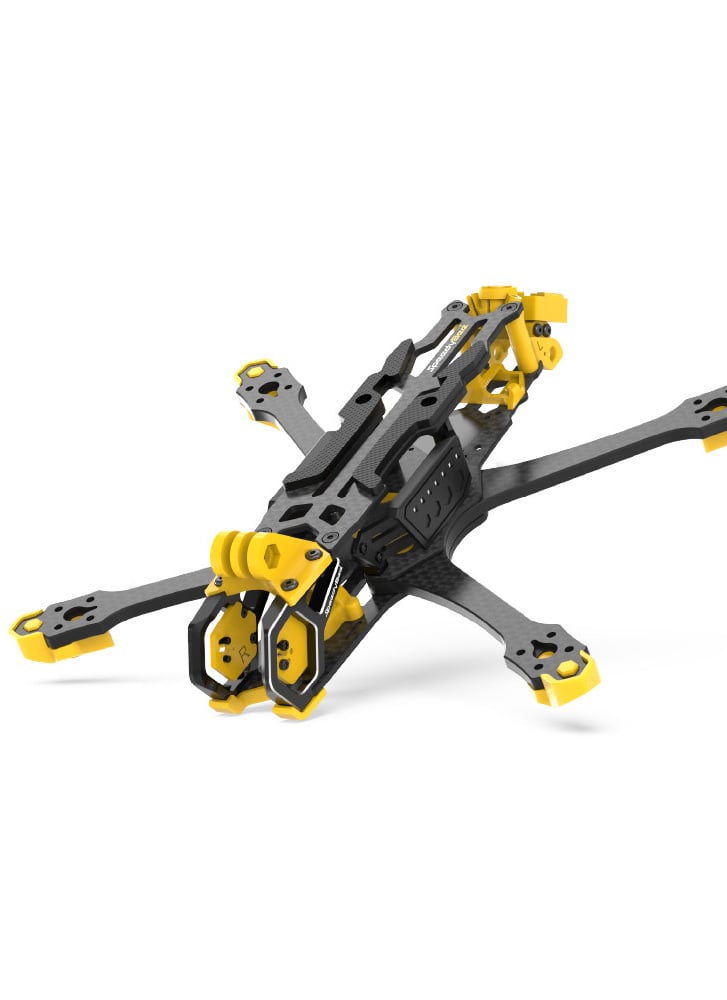

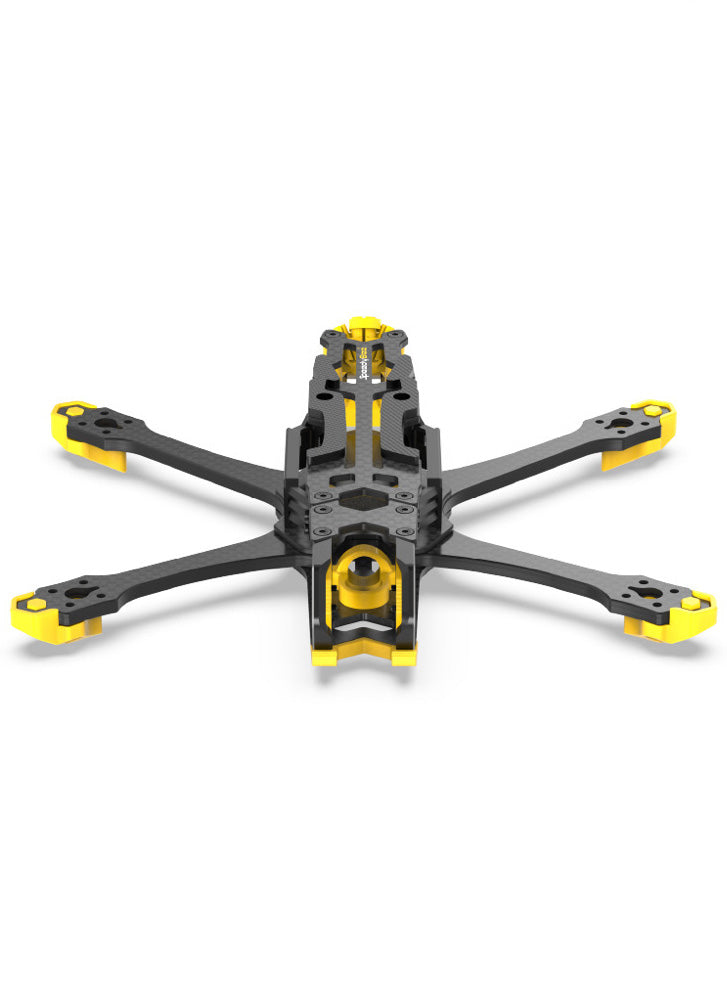

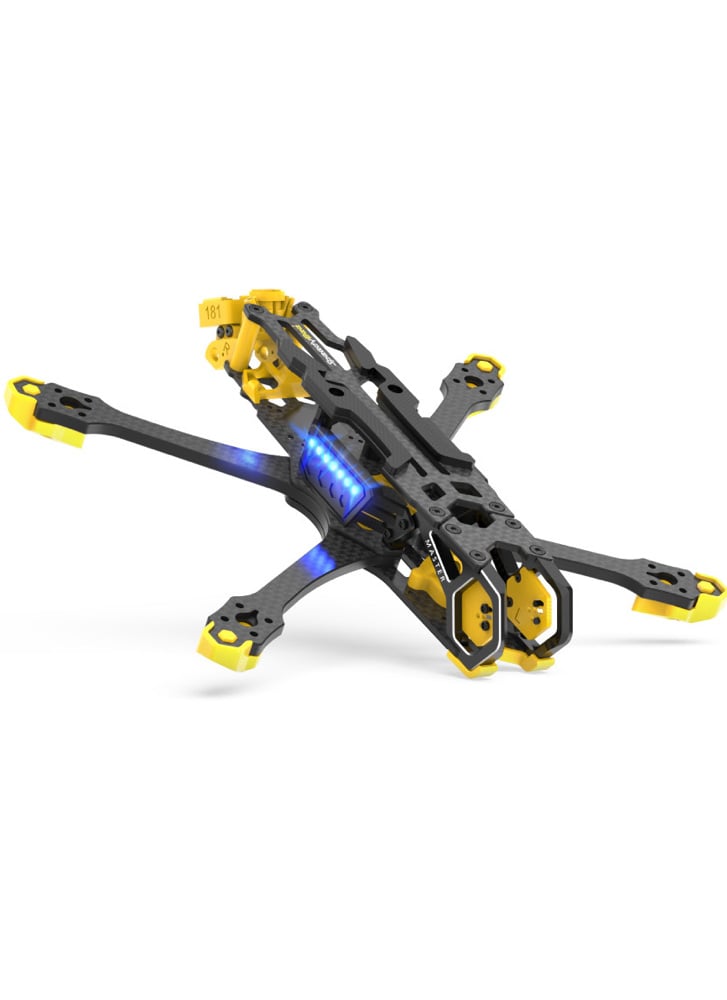

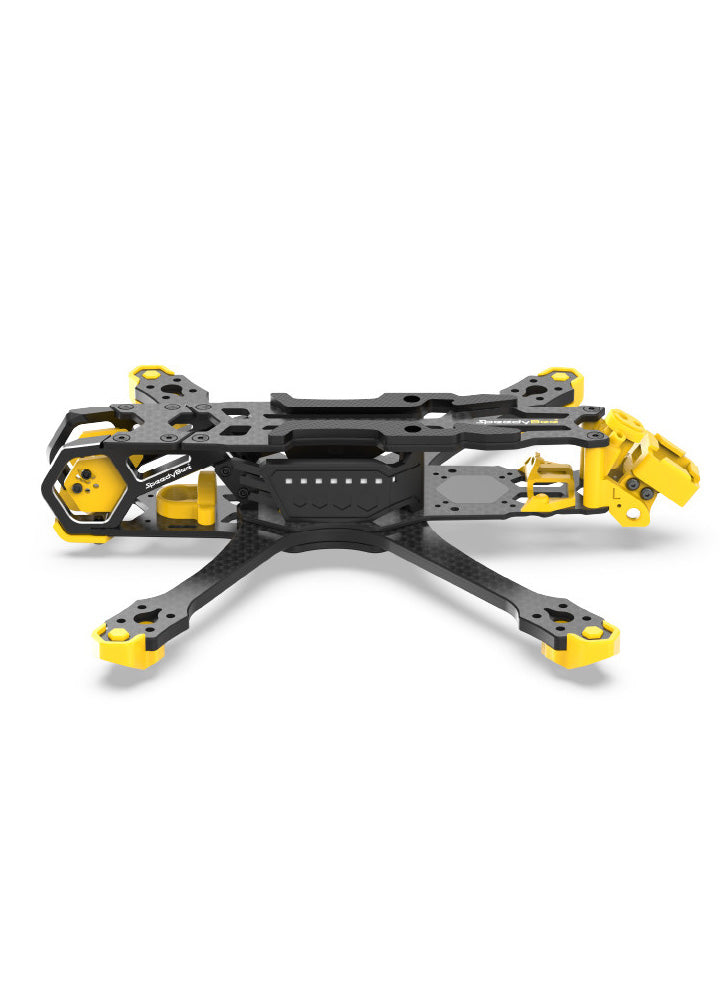

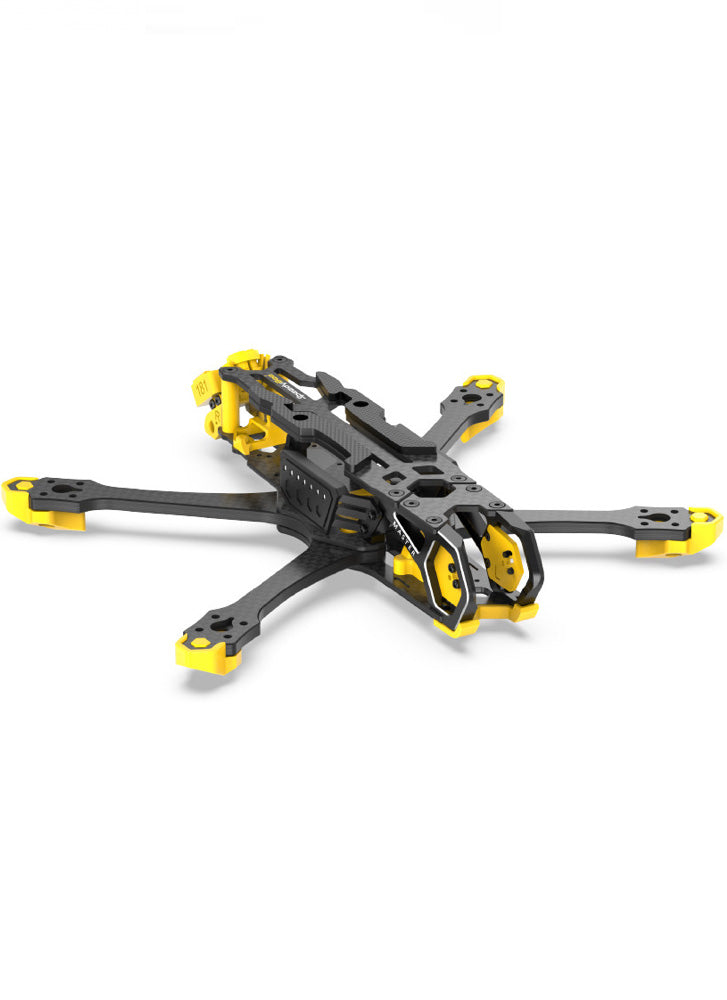

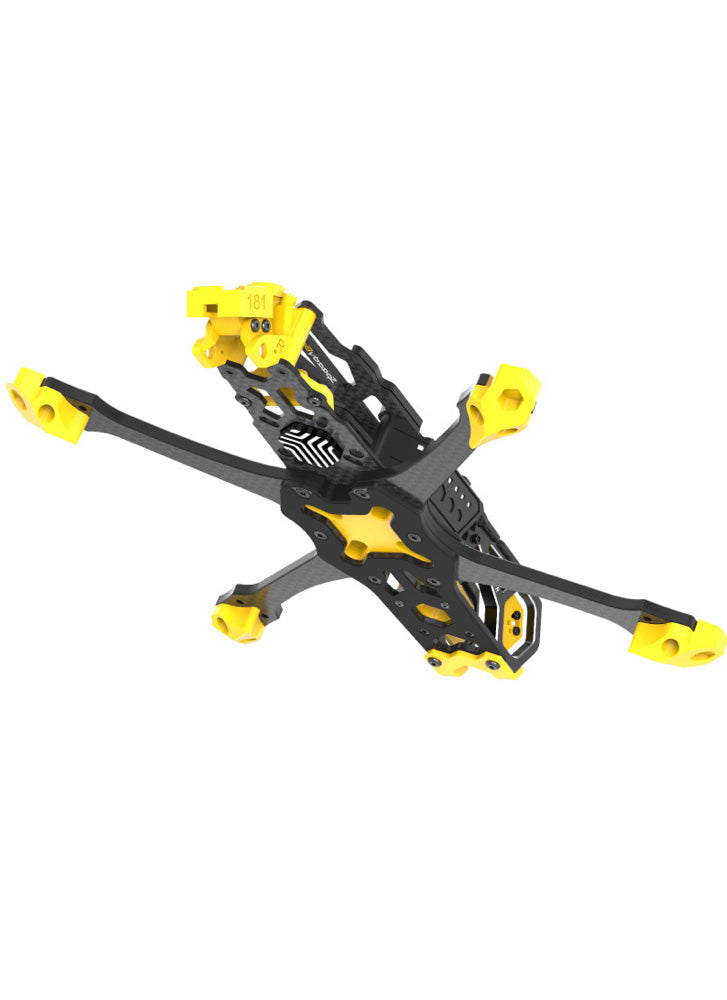

SpeedyBee Master 5 V2 FPV Freestyle Drone Frame
£69.99
High-performance 5” freestyle frame with deadcat geometry, CNC aluminium strength, and advanced vibration isolation.
The SpeedyBee Master 5 V2 FPV Freestyle Drone Frame is designed to deliver a perfect balance of strength, performance, and clean HD footage. Built around a refined deadcat geometry, it keeps props out of view while positioning the flight controller closer to the centre of gravity for improved handling in both freestyle and cinematic flying.
At the front, a CNC-machined 7075 aluminium camera cage provides exceptional protection while maintaining a wide 130° field of view with no vignetting. The detachable camera side plates support multiple camera sizes and materials, allowing easy customisation and compatibility with DJI O3 and other HD systems.
A key highlight of the Master 5 V2 is its innovative anti-vibration stack system. Using dual-density TPU damping, it isolates the flight controller from motor noise to deliver cleaner gyro data and more stable flight performance.
The frame is engineered for practicality as well as performance. A quick-release arm design reduces the number of screws per arm, making maintenance fast and straightforward, while integrated motor wire protection and TPU arm guards improve durability in crashes.
For modern FPV setups, the Master 5 V2 includes a dedicated aluminium heat sink beneath the VTX, improving cooling for high-power analogue systems and DJI O3 Air Units. The modular antenna mounting system supports multiple configurations including SMA, dual antenna HD systems, and GPS integration.
Additional thoughtful features include soft bottom plate protection for landing, separated top plates for easier access and GoPro mounting, and integrated RGB LED support for customisable lighting effects via Betaflight or the SpeedyBee app.
Built from high-quality T300 3K carbon fibre with 5mm arms and reinforced aluminium components, the Master 5 V2 is a robust and versatile platform suited to demanding freestyle pilots and cinematic builds alike.
Features
- Deadcat geometry for prop-free HD footage and improved balance
- CNC 7075 aluminium camera cage for strength and protection
- Anti-vibration stack mounting for cleaner gyro performance
- Quick-release arm design for fast maintenance
- Aluminium VTX heat sink for improved cooling
- Modular antenna and GPS mounting system
- RGB LED support with app control
- Durable 5mm carbon fibre arms with TPU protection
Notes:
Frame only – electronics, motors, and camera system not included
Compatible with DJI O3 Air Unit, RunCam Link, and analogue VTX systems
Additional GPS bases and accessories available separately
Specifications
- Frame: Master 5 V2
- Wheelbase: 226mm
- Weight: About 140g (non-3D printed parts included)
- Top plate thickness: 2.5mm(T300 3K)
- Middle plate thickness: 2mm(T300 3K)
- Bottom plate thickness: 2.5mm(T300 3K)
- Arm thickness: 5mm(T300 3K)
- Camera side plate thickness: 2mm TUPC
- Anti-vibration stack structure hardness: Yellow HB80、Translucent HB50
- 3D printed par: Yellow TPU
- Motor circlip spacing: Φ8mm
- Compatible propellers: 5-5.1 inch
- Mounting holes for motors: 16*16mm
- FC mounting hole: 30.5×30.5(M3) & 20×20mm (M3)
- Drone head: 7075 CNC aluminum alloy
- Aluminum standoff: 7075 M3*23mm*(6mm/4.7mm)、M3*23mm*(4.6mm)
- Internal installation height: 23-30mm
- Standard antenna installation suppor: SMA (single), O3 4mm, RunCam Link
- Standard GPS base size: 18*18*8mm (other size requiresan additional purchase)
- Rear Support Mounting Holes: 20*20mm – 25.5*25.5mm – 30.5*30.5mm
- Detachable stack protective plate RGB LED: included
- Motor wire protection: included
- Included 3D printed parts: GOPRO base, capacitor/buzzerbase, arm protection, 181GPS base, T-antenna base, CNC drone head TPU protection, camera anti-vibration module
- Buzzer: TMB12A05
